360° Truck Mount Crane (1000LBS)，Auto Shop, 4 Lifting Gears + Hydraulic Pump
Product Details
| Highlight |
360° truck mount crane 1000LBS,auto shop hydraulic crane,4 lifting gears engine hoist |
||
|---|---|---|---|
Product Description
| Parameter Category | 1000LBS (450kg) Model | 2000LBS (900kg) Model | Description |
|---|---|---|---|
| Basic Info | Pick-Up Truck Mount Crane | Pick-Up Truck Mount Crane | Classified as a truck accessory, directly installable on the pickup truck bed |
| Capacity | 450kg (1000LBS) | 900kg (2000LBS) | Core load-bearing index, adapting to lifting needs of different weights |
| Lifting Radius Range | 930mm (min) - 1295mm (max) | 930mm (min) - 1295mm (max) | Covers close-range precise operations and long-range wide-coverage operations |
| Max Lifting Height | 2015mm (79.3") | 1800mm (70.8") | Determines the vertical lifting upper limit of cargo |
| Base Size | 270mm×270mm | 270mm×270mm | Square stable base, fixed to the truck bed via bolts |
| Parameter Category | Standard Model | Hydraulic Model | Description |
|---|---|---|---|

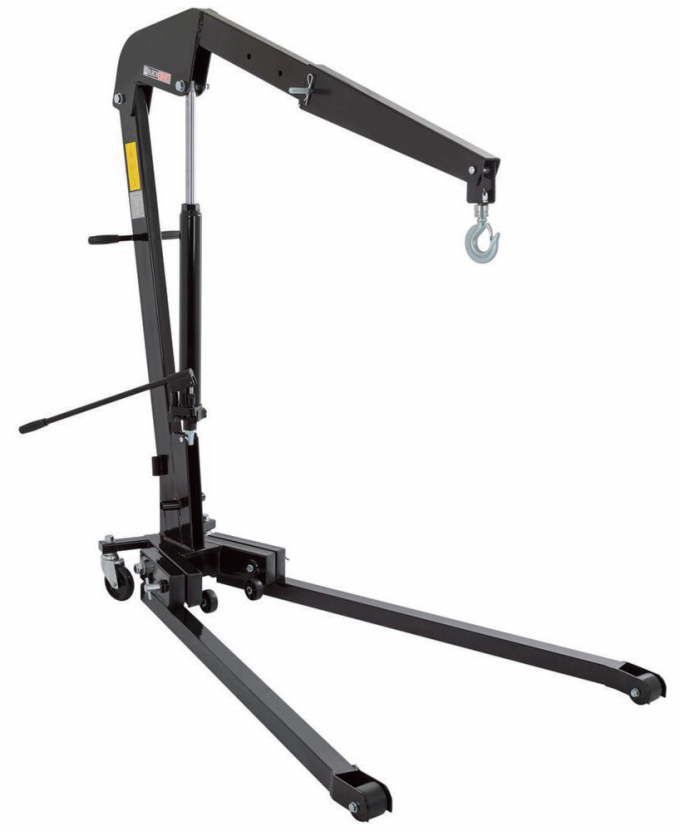

| Product Type | Foldable Engine Crane | Foldable Engine Crane | Used for lifting and moving engines and heavy components |
| Core Configuration | - | Single Piston Hydraulic Pump | The hydraulic model features labor-saving operation and precise speed control |
| Capacity | 1000kg (2222LBS) | 1000kg (2222LBS) | The hydraulic model includes 4 preset lifting loads (250kg/500kg/750kg/1000kg) |

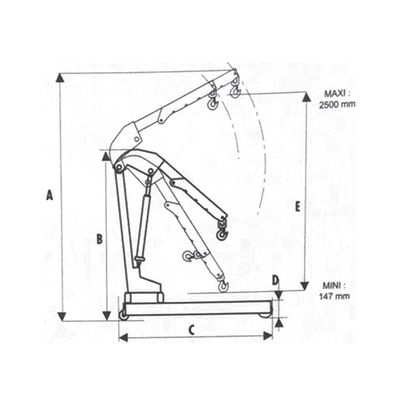

| Frame Size | 1470mm (H) × 1520mm (L) × 978mm (W) | 1500mm (H) × 1450mm (L) × 1000mm (W) | Outer width affects storage space; inner width adapts to component sizes |
- Dual Advantages of Flexibility and Load-Bearing: The 1000LBS model handles light-to-medium operations (200kg plows, 150kg generators); the 2000LBS model handles heavy-duty needs (800kg steel pipes, 700kg feed mixers)
- Stability and Portability: 270mm×270mm square base fixed with 4 high-strength bolts; total weight ≤50kg; two-person installation in 30 minutes
- Durability and Adaptability: Q345 high-strength steel boom with phosphating + anti-rust spray treatment; 48-hour salt spray test; compatible with Ford, Toyota, Great Wall pickups
- Hydraulic Model: Single-piston hydraulic pump requires only 1/3 operating force; 4 load gears for precise lifting from 300kg to 1-ton engines
- Standard Model: 1470mm frame height + 978mm wide base for stable operation; 76kg weight suitable for fixed workstations
- Space-Saving Design: Hydraulic model reduces volume by 60% when folded; standard model can compress storage space by disassembling wheel sets
- Agricultural Machinery Maintenance: Disassembles tractor gearboxes (~350kg); lifts harvester cutters (~400kg); 360° rotation for alignment without moving vehicle
- Construction Site Transport: Transfers steel pipe bundles (~800kg) and cement boards (~600kg); 1295mm max radius for ground-to-truck bed lifting
- Emergency Rescue: Assists in replacing truck tires (~150kg); lifts drive shafts (~200kg); lightweight components for quick assembly
- Auto Repair Shops: Disassembles car engines (~400kg) in 500kg gear; installs light truck engines (~800kg) in 1000kg gear
- Agricultural Machinery Stations: Handles 800kg tractor engines and 600kg harvester gearboxes; 1470mm frame height for tall machinery
- Factory Equipment Relocation: Moves 300kg motors and 750kg machine tools; wheel sets adapted to workshop floors
