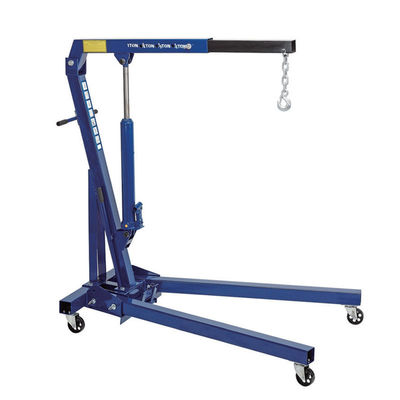

1 Tonne Folding Engine Crane Hydraulic Pump for Auto Repair, Workshop

Large Image : 1 Tonne Folding Engine Crane Hydraulic Pump for Auto Repair, Workshop

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD01-006

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	$83
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Minimum Lifting Radius:	930mm (36.6")	Maximum Lifting Radius:	1295mm (51")
Maximum Lifting Height:	2015mm (79.3")	Base Size:	270mm×270mm (10.6"×10.6")
Folded Standing Height:	No Relevant Data	Weight & Packaging:	76KG, Package Size 142×38×36cm (packed In Plywood Case)
Highlight:	1 tonne folding engine crane , hydraulic pump engine hoist , workshop auto repair crane

1 Tonne Folding Engine Crane Hydraulic Pump for Auto Repair, Workshop

Product Specifications

360° Stationary Rotating Swivel Boom Vehicle-Mounted Crane

Specification Dimension	450kg (1000Ibs) Version	900kg (2000Ibs) Version
Minimum Lifting Radius	930mm (36.6")	930mm (36.6")
Maximum Lifting Radius	1295mm (51")	1295mm (51")
Maximum Lifting Height	2015mm (79.3")	1800mm (70.8")
Base Size	270mm270mm (10.6"10.6")	270mm270mm (10.6"10.6")
Folded Standing Height	No relevant data	1355mm
Weight & Packaging	1) 13KG, package size 333231cm 2) 36KG, package size 1113218cm	1) 14KG, package size 343332cm 2) 36KG, package size 1133218cm

Foldable Engine Crane

Specification Dimension	1000kg (2222Ibs) Standard Version	1 Tonne (1000kg) Folding Version
Frame Height	1470mm (57.8")	1500mm
Frame Length	1520mm (59.8")	1450mm
Frame Width	978mm (38.5")	1000mm
Inner Frame Width	850mm (33.5")	No relevant data
Distance Between Front Wheel Centers	No relevant data	800mm
Distance Between Rear Wheel Centers	No relevant data	540mm
Lifting Gears	No relevant data	4 gears (250kg, 500kg, 750kg, 1000kg)
Weight & Packaging	76KG, package size 1423836cm (packed in plywood case)	1) 16KG, package size 713516cm 2) 55KG, package size 1403020cm

Product Details

The 360° stationary rotating swivel boom vehicle-mounted crane features full-angle rotation for flexible adjustment of lifting direction. Its 270mm*270mm square base provides strong stability when mounted on pick-up trucks.

The foldable engine crane is designed with 4 preset lifting gears (250kg to 1000kg) for precise force adjustment. Its folding design reduces storage space while maintaining high mobility with 800mm front and 540mm rear wheel spacing.

Application Scenarios

Logistics and Freight: Loading/unloading goods for pick-up trucks in urban/rural areas
Outdoor Operations: Road maintenance and power emergency repairs
Automotive Repair: Engine removal/installation with precise weight adjustment
Construction Machinery: Maintenance of small excavators and loaders
Production Workshops: Engine transfer between assembly stations

Frequently Asked Questions

Q: What safety precautions should be taken when the 360° vehicle-mounted crane is rotating for lifting?

A: Ensure the base is firmly fixed, observe surroundings during rotation, maintain uniform speed, and never exceed maximum load capacity.

Q: How to switch the 4 lifting gears of the foldable engine crane?

A: Stop the machine and ensure no-load condition before switching gears. Adjust via the gear pin mechanism following manual instructions.

Q: What maintenance checks are required after long-term storage?

A: Check hydraulic system for leaks/oil levels, lubricate folding joints, and test all gears under no-load conditions before use.
