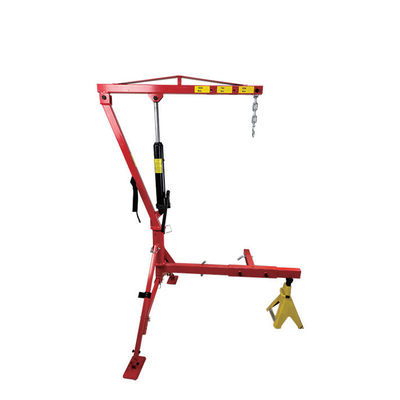

1000LB Hydraulic Truck Crane，Agri Repair, 360° Pivot + 2010mm Max Hook Height
Product Details
| Model No: | YD01-009 | Used For Product Identification And Traceability | Capacity: | 1000LB (453.6kg) | 3 Adjustable Gears: 500LB, 750LB, 1000LB |
|---|---|---|---|
| Extend Usable Reach: | 1310mm | Horizontal Distance From Hook Center To Base | Extended Maximum Hook Height: | 2010mm | Vertical Height When Boom Is Extended |
| Retracted Usable Reach: | 1010mm | Horizontal Distance When Boom Is Retracted | Retracted Maximum Hook Height: | 1890mm | Vertical Height When Boom Is Retracted |
| Highlight |
1000LB hydraulic truck crane,360° pivot hydraulic crane,2010mm hook height crane |
||
Product Description
| Parameter Category | Specific Parameters | Description |
|---|---|---|
| Basic Info | Model No | YD01-009 | Used for product identification and traceability |
| Basic Info | Capacity | 1000LB (453.6kg) | 3 adjustable gears: 500LB, 750LB, 1000LB |
| Performance Parameters | Extend Usable Reach | 1310mm | Horizontal distance from hook center to base |
| Performance Parameters | Extended Maximum Hook Height | 2010mm | Vertical height when boom is extended |
| Performance Parameters | Retracted Usable Reach | 1010mm | Horizontal distance when boom is retracted |
| Performance Parameters | Retracted Maximum Hook Height | 1890mm | Vertical height when boom is retracted |
| Performance Parameters | Lift Range | 560-2010mm | Vertical height range adjustable for hook |
| Structural Parameters | Chain Length | 200mm | Length of load-bearing chain |
| Core Structural Parameters | Main Material | All-steel construction + Precision casting body |
| Core Structural Parameters | Installation Method | Fits 2-inch receiver hitch |
| Core Structural Parameters | Rotation Function | 360 degree pivot | Omnidirectional boom rotation |

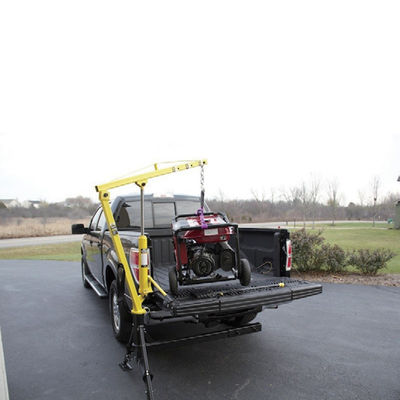

The 1000LB Hydraulic Hitch Mount Truck Crane (Model: YD01-009) is a portable hydraulic lifting device specially designed for trucks. Its core advantages include labor-saving hydraulic drive, multi-gear load capacity, and 360-degree flexible operation.
- Sturdy Structure: All-steel construction with precision-cast body for high strength and durability
- Flexible Installation: Fits standard 2-inch receiver hitches with no welding or modification required
- Easy Operation: Hydraulic drive reduces operating force with 360° rotation capability
- Safety Features: 1-inch hook with safety latch and 2 adjustable support legs for stability
- Durable Construction: Anti-rust spray treatment with 48-hour salt spray test resistance
- Agricultural Machinery Repair: Lift tractor gearboxes (300kg) and harvester cutter assemblies (350kg)
- Construction Site Transport: Handle steel pipes (400kg) and precast cement boards (350kg)
- Emergency Rescue: Assist in vehicle tire changes (150kg) and chassis component lifting (200kg)
- Livestock Farm Equipment: Lift feed mixers (350kg) and water troughs (300kg) to platforms
- Check hydraulic oil level and quality
- Inspect for hydraulic pipeline leaks
- Verify hydraulic pump working status
- Check hitch compatibility and use gaskets if needed
- Retighten installation bolts to 30-35N*m torque
- Adjust support leg height for even ground contact
- Clean impurities from latch mechanism
- Lubricate with lithium-based grease
- Check for structural damage if problems persist
