1000LB Pick-Up Crane ， Agri/Construction, 4 Gears + Winch + 0-2000mm Boom

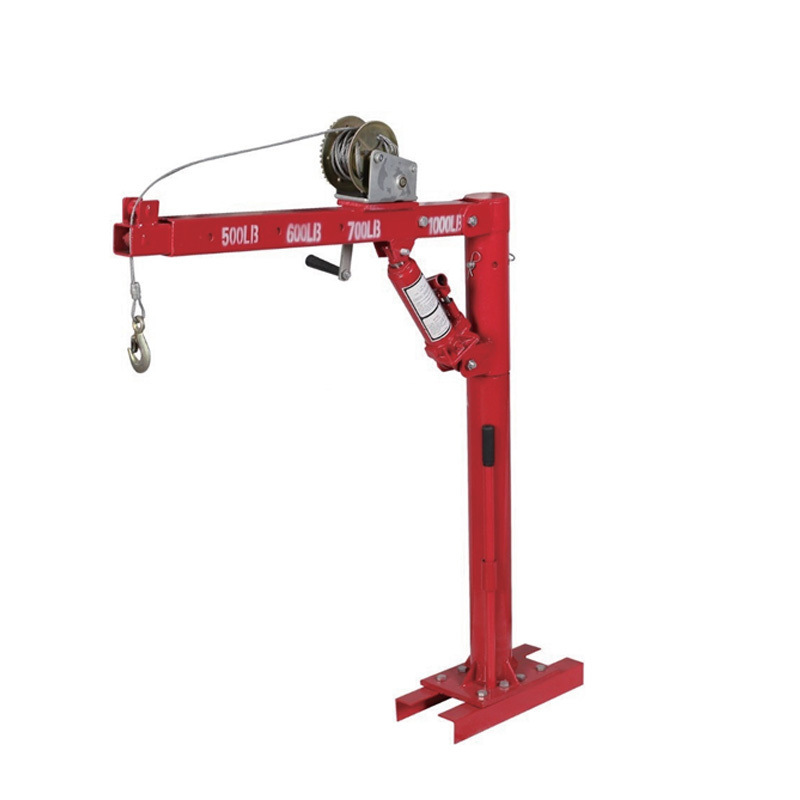

Large Image : 1000LB Pick-Up Crane ， Agri/Construction, 4 Gears + Winch + 0-2000mm Boom

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD01-010

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	$61
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model No.:	YD01-010	Capacity:	1000LB (approx. 453.6kg)
Boom Working Range:	0-2000mm	Lifting Range:	800-1500mm
G.W./N.W.:	41kg/40kg	Package Size:	103×27×20cm
Highlight:	1000LB construction pick-up crane , 4-gear engine hoist with winch , 2000mm boom engine hoist

1000LB Pick-Up Crane for Agri/Construction with 4 Gears + Winch + 0-2000mm Boom

Product Specifications

Parameter Category	Specific Parameters	Description
Basic Info	Model No.	YD01-010 - Unique product identifier for after-sales traceability, accessory matching, and order management
Basic Info	Capacity	1000LB (approx. 453.6kg), with 4 adjustable gears: 500LB, 600LB, 700LB, 1000LB - Adapts to goods of different weights
Performance Parameters	Boom Working Range	0-2000mm - Effective operating range for boom extension/rotation
Performance Parameters	Lifting Range	800-1500mm - Vertical lifting height range of the hook
Weight Parameters	G.W./N.W.	41kg/40kg - Gross Weight includes packaging, Net Weight is actual product weight
Packaging & Transportation	Package Size	1032720cm - Compact size reduces transportation costs
Packaging & Transportation	Qty per 20ft Container	450pcs - Supports large-scale supply and cross-border transportation
Core Configuration	Winch Function	Integrated winch design - Improves operational stability for slow and precise lowering

Product Details

The 1000 LB Pick-Up Truck Crane with Winch (Model: YD01-010) is a portable lifting device specially developed for pickup trucks. Its core advantages lie in multi-gear load capacity, integrated winch, and wide operating range.

Core Highlights

Multi-Gear Load Capacity: Supports 4 adjustable load gears (500LB, 600LB, 700LB, 1000LB) covering most outdoor lifting scenarios for pickups.
Integrated Winch: Enables "slow and steady" lifting/lowering of goods, enhancing operational safety especially during 1000LB heavy-duty lifting.
Wide Operating Range: Boom working range of 0-2000mm allows close-range precise lifting and long-distance operations.
Lightweight Design: Net weight of only 40kg makes it portable and easy to install with no in-depth modifications required.

Application Scenarios

Outdoor Maintenance of Agricultural Machinery: Lifts tractor gearboxes, harvester cutter assemblies, and small agricultural machinery parts.
Small-Scale Cargo Transportation at Construction Sites: Transports construction steel pipes and precast cement blocks with controlled lifting speed.
Outdoor Emergency Rescue: Assists in replacing tires and lifting chassis components of trapped vehicles in hard-to-access areas.
Equipment Handling in Livestock Farms: Lifts feed mixers and water troughs to farm platforms with precise operation in narrow spaces.

Frequently Asked Questions (FAQs)

Winch Cable Gets Stuck During Lifting

Clean impurities from the cable using a high-pressure air gun and wipe with diesel
Check cable winding status and rewind if overlapped
Lubricate with special winch cable grease and check for wear (replace if diameter wear exceeds 10%)

Boom Load Capacity Doesn't Match Gear Setting

Ensure gear switch is fully engaged in the corresponding slot
For electric models, calibrate gear sensor alignment
Switch gears sequentially (500LB→600LB→700LB→1000LB) to prevent gear failure

Boom Lifting Range Fails to Reach Specified Height

Check and adjust boom extension limit bolt
Inspect winch cable length and release appropriate length if needed
Verify installation angle using a level and adjust with washers if necessary

Boom Jammed After Transportation/Storage

Remove any transportation fixing devices
Clean and lubricate extension rails with mechanical oil
Check for boom deformation and contact manufacturer if severe
