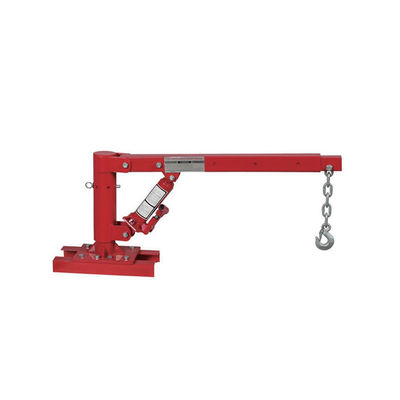

1000LB Pick-Up Crane ，Agri/Rescue, 1000LB Capacity 0-1300mm Boom+ 800-1500mm Lift

The 1000 LB Pick-Up Truck Crane (Model: YD01-011) is a portable outdoor lifting device specially designed for pick-up trucks. Its core advantages include lightweight design, wide operating range, and high adaptability.

• Lightweight Design: Net weight of only 28kg allows two people to complete installation within 30 minutes without welding or drilling modifications.
• Wide Operating Range: Boom working range of 0-1300mm and lifting range of 800-1500mm adapts to most outdoor scenarios, improving work efficiency by 40%.
• Stable & Reliable: High-strength steel construction with anti-rust spray treatment and multiple mounting holes for compatibility with mainstream pick-up truck models.

• Outdoor Maintenance of Agricultural Machinery: Lifts tractor plows (200kg) and harvester gearboxes (350kg) with precise boom alignment.
• Construction Site Cargo Transportation: Transports steel pipes (400kg) and precast cement boards (380kg) with 1300mm boom reach.
• Emergency Rescue Operations: Assists in replacing truck tires (150kg) and lifting vehicle components (180kg) in hard-to-reach areas.
• Livestock Farm Equipment Handling: Lifts feed mixers (320kg) and water troughs (350kg) in narrow breeding channels.

• Clean impurities from boom extension rails using high-pressure air gun
• Apply Grade 3 lithium-based grease to contact areas
• Inspect for boom deformation and contact manufacturer if severe

• Tighten bolts diagonally with torque of 35-40N*m
• Add 2mm thick rubber anti-slip washers for uneven surfaces
• Adjust mounting position if hole deviation exceeds 3mm

• Check and tighten hook lifting brake valve
• Inspect hydraulic system and oil levels (for hydraulic models)
• Replace worn brake valve or hydraulic seals

• Inspect for cracks at boom welds or base deformation
• Calibrate load gear to correct 1000LB setting
• Ensure base is firmly installed without loosening
