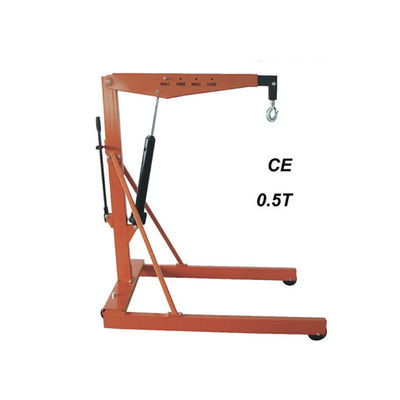

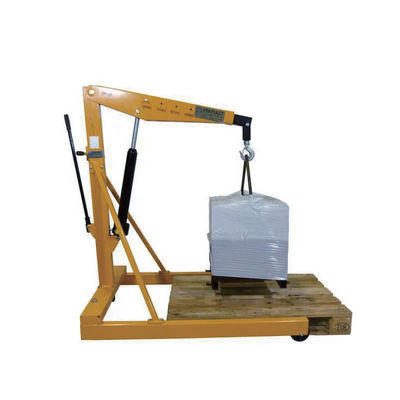

500KG Heavy Duty Shop Crane:Construction/Rescue, 950mm Base + 470-2150mm Hook Height

Large Image : 500KG Heavy Duty Shop Crane:Construction/Rescue, 950mm Base + 470-2150mm Hook Height

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD01-012

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model:	YD01-012	Capacity:	500KGS (0.5T)
Certification Mark:	CE Certified	Base Width:	950mm (outside)
Boom Length:	Max. 1360mm	Hook Height:	Max. 2150mm
Highlight:	500kg heavy duty shop crane , construction rescue engine hoist , adjustable height engine hoist

500KG Heavy Duty Shop Crane: Construction/Rescue, 950mm Base + 470-2150mm Hook Height

Product Specifications

Parameter Category	Specific Parameters	Description
Basic Info	Model	YD01-012 - Unique product identifier for after-sales traceability and accessory matching
Basic Info	Capacity	500KGS (0.5T) - Suitable for lifting small and medium-sized goods
Basic Info	Certification Mark	CE Certified - Complies with EU safety, health, and environmental standards
Structural Parameters	Base Width	950mm (outside), 800mm (inside) - Ensures stability while adapting to different installation spaces
Performance Parameters	Boom Length	Max. 1360mm, Min. 1060mm - Adjustable for different operation distances
Performance Parameters	Hook Height	Max. 2150mm, Min. 470mm - Meets both high-position unloading and ground-level picking needs
Weight Parameters	Net Weight per Unit	80kgs - Easy for manual collaborative installation
Packaging & Transportation	Packaging Method	Brown box + Pallet - Protects equipment and enables forklift handling
Packaging & Transportation	Quantity per Pallet	5pcs - Suitable for warehouse stacking and bulk transportation
Packaging & Transportation	Pallet Size	14010487CM - Standardized size for conventional warehouse shelves
Packaging & Transportation	Pallet Net Weight/Gross Weight	408KGS/450KGS - Includes packaging weight for logistics calculation

Product Overview

The YD01-012 0.5T truck mounted crane is a portable device designed for light-to-medium lifting needs. Its core advantages include CE compliance certification, flexible size adjustment, and stable load-bearing structure.

Core Features

Compliant and Reliable: CE certification meets EU and international safety standards, suitable for cross-border trade and high-compliance scenarios.
Flexible Size: Adjustable boom length (1060mm to 1360mm) and hook height (470mm to 2150mm) adapt to various operation scenarios.
Stable and Durable: Constructed with Q235 high-strength steel with phosphating anti-rust treatment for extended service life.
Easy Installation: Multiple mounting holes adapt to mainstream vehicle models, installation completed by 2-3 people within 1 hour.
Bulk Transportation-Friendly: Standardized pallet packaging (5 units per pallet) for efficient logistics and reduced damage.

Application Scenarios

Agricultural Machinery Maintenance: Lifts tractor gearboxes (300KGS) and harvester cutter assemblies (400KGS) in farmland and pastures.
Construction Site Cargo Transport: Moves cement boards (350KGS) and steel pipe bundles (450KGS) on small construction sites.
Warehouse Logistics: Assists in loading/unloading 300-400KGS goods in warehouses and logistics stations.
Emergency Support: Lifts faulty vehicle tires (150KGS) and rescue equipment (200KGS) in rural road and scenic area rescues.

Frequently Asked Questions

Boom Adjustment Issues

Clean and lubricate the boom adjustment rail with Grade 3 lithium-based grease
Check and realign the boom locating pin if misaligned
Inspect for deformation and contact manufacturer for replacement if severe

Base Installation Stability

Tighten bolts diagonally with final torque of 45-50N*m
Add 3mm rubber buffer washers for uneven mounting surfaces
Adjust mounting holes if deviation exceeds 5mm

Hook Stability

Check and adjust brake device (manual or hydraulic)
Inspect hydraulic system for proper oil level and leaks
Replace worn brake pads or hydraulic seals as needed

Post-Transportation Issues

Check and reinstall any loose boom fixing buckles
Calibrate load-bearing structure with test weights
Contact after-sales service for inspection if issues persist
