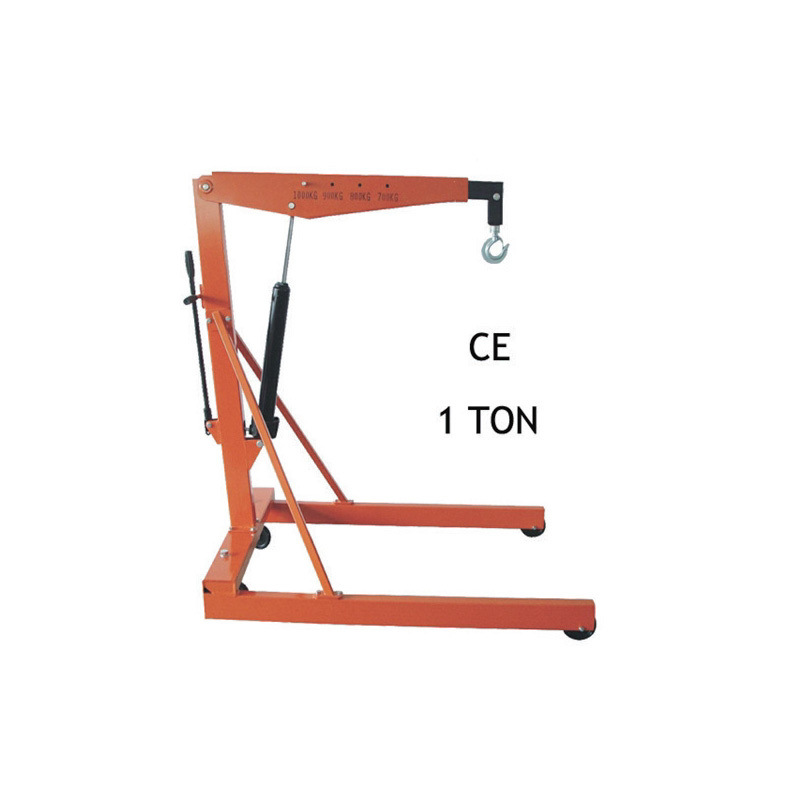

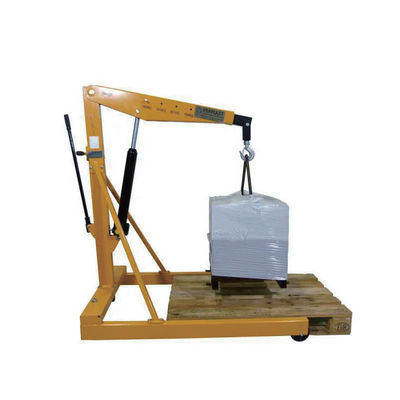

1 Ton Truck Crane Agri / Construction 1060-1360mm Boom + 2150mm Max Hook
Product Details
| Model: | YD01-013 | Capacity: | 1000KGS (1 TON) |
|---|---|---|---|
| Certification Mark: | CE Certified | Base Width:: | 950mm (outside), 800mm (inside) |
| Boom Length: | Max. 1360mm, Min. 1060mm | Hook Height:: | Max. 2150mm, Min. 470mm |
| Highlight |
1-ton truck crane for construction,truck crane with 1360mm boom,heavy duty truck crane |
||
Product Description
| Parameter Category | Specific Parameters | Description |
|---|---|---|
| Basic Info | Model: YD01-013 | Unique product identifier for after-sales traceability and accessory matching |
| Basic Info | Capacity: 1000KGS (1 TON) | Core performance indicator, suitable for lifting heavy goods |
| Basic Info | Certification Mark: CE Certified | Complies with EU safety, health, and environmental standards |
| Structural Parameters | Base Width: 950mm (outside), 800mm (inside) | Ensures equipment stability and improves compatibility |
| Performance Parameters | Boom Length: Max. 1360mm, Min. 1060mm | Adjustable according to operation distance requirements |
| Performance Parameters | Hook Height: Max. 2150mm, Min. 470mm | Meets high-position unloading needs and ground-level operations |
| Weight Parameters | Net Weight per Unit: 103kgs | Requires 2-3 people for handling and installation |
| Packaging & Transportation | Packaging Method: Brown box + Pallet | Protects equipment and enables forklift handling |
| Packaging & Transportation | Quantity per Pallet: 5pcs | Optimized for warehouse stacking and bulk transportation |
The YD01-013 1-ton truck-mounted crane is a portable device designed for heavy-lifting needs. Its core advantages include 1-ton heavy-load capacity, CE compliance certification, and flexible size adjustment. It enables efficient transportation of heavy goods without relying on large cranes, solving the challenges of insufficient heavy-load capacity in various industrial scenarios.
- Reliable Heavy-Load Performance: Rated capacity of 1000KGS with Q345 high-strength steel construction and anti-rust coating
- CE Compliance: Meets EU and international safety standards for cross-border trade
- Flexible Operation: Adjustable boom length (1060-1360mm) with 360° rotation and hook height from 470mm to 2150mm
- Bulk Transportation Friendly: Palletized packaging (5 units/pallet) for efficient logistics
- Agricultural Machinery Maintenance: Lifting tractor engines (800KGS) and harvester gearbox assemblies (900KGS)
- Construction Site Transport: Moving steel bundles (900KGS) and precast concrete blocks (800KGS)
- Warehouse Loading/Unloading: Handling industrial motors (900KGS) and large parts boxes (1000KGS)
- Emergency Rescue: Lifting truck rear axles (800KGS) and heavy rescue equipment (900KGS)
Clean and lubricate the boom extension rail, check the locating pin alignment, and inspect for deformation. For severe issues, contact the manufacturer.
Tighten bolts diagonally, add anti-slip washers for uneven surfaces, or adjust mounting holes if necessary.
Check the brake device, inspect the hydraulic system (for hydraulic models), and replace any worn parts as needed.
