2Ton Car Battery Crane (YD01-015): EV/Auto Repair, 18.5cm Low Height + 4 Gears
Product Details
| Model: | YD01-015 | Rated Capacity: | 2Ton (2000KG) |
|---|---|---|---|

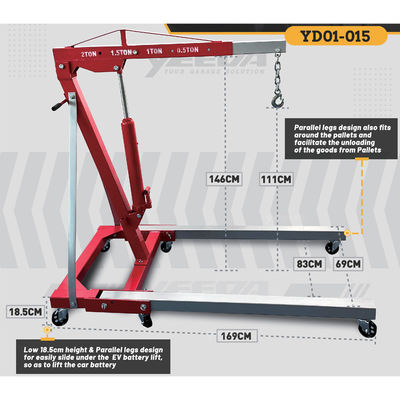

| Core Structural Design: | Parallel Legs Design + Ultra-low Height Of 18.5cm | Key Dimensions: | 169CM Maximum Lifting Height |
| Package 1 Specifications: | 40×30×18cm, 64KG | Package 2 Specifications: | 84×56×9cm, 24KG |
| Highlight |
2Ton car battery crane for EV repair,low height car battery crane,4-gear car battery hoist |
||
Product Description
| Parameter Category | Specific Parameters | Description |
|---|---|---|
| Basic Info | Model (Item) | YD01-015 - Unique product identifier for after-sales traceability and accessory matching |
| Basic Info | Rated Capacity | 2Ton (2000KG), with 4 gears: 0.5TON/1TON/1.5TON/2TON - Adapts to batteries of different weights |
| Structural & Dimension Parameters | Core Structural Design | Parallel legs design + ultra-low height of 18.5cm - Enables lifting without additional heightening |
| Structural & Dimension Parameters | Key Dimensions | 169CM maximum lifting height, 146CM/111CM boom dimensions, 83CM/69CM leg spacing |
| Packaging & Transportation Parameters | Package 1 Specifications | 140*30*18cm, 64KG - Contains main load-bearing components |
| Packaging & Transportation Parameters | Package 2 Specifications | 84*56*9cm, 24KG - Contains auxiliary accessories |
The YD01-015 2-Ton Car Battery Carrying Crane is designed for loading, unloading, and handling of car batteries, especially heavy EV batteries. Its core advantages include multi-gear load capacity, ultra-low height adaptation, and flexible parallel-leg operation.
- Multi-Gear Load Capacity: Supports 0.5-2TON stepped load adjustment for various battery weights
- Ultra-Low Height + Parallel Legs: 18.5cm base height slides under EV batteries; parallel legs adapt to narrow spaces
- Lightweight Split Packaging: Main components (62KG) and accessories (23KG) for easy transport and assembly
- Stable Structure: Q235 high-strength steel construction with anti-slip rubber pads for safety
Disassembly and installation of pure EV batteries (e.g., 200KG Tesla/BYD batteries) with 18.5cm ultra-low height and 2TON gear capacity.
Replacement of fuel/hybrid vehicle batteries (40-100KG) in narrow maintenance workstations.
Unloading batteries from pallets or loading onto transport vehicles with 169CM maximum lifting height.
On-site battery maintenance support with quick assembly and adaptation to uneven ground.
- Check and replace worn anti-slip pads (8mm thick rubber recommended)
- Ensure correct gear selection matches battery weight
- Tighten battery fixing straps to prevent sliding
- Clear ground obstacles and ensure smooth sliding surface
- Adjust leg spacing (83CM/69CM adaptive dimensions)
- Check base flatness with level and correct or replace if deformed
- Check power connection and battery level (≥50% recommended)
- Calibrate gear switch by holding button during power-on
- Inspect and tighten internal circuit connections
- Verify proper assembly and tighten connecting bolts (50-55N*m torque)
- Perform no-load operation test before gradual load testing
- Contact after-sales service for inspection if issues persist
