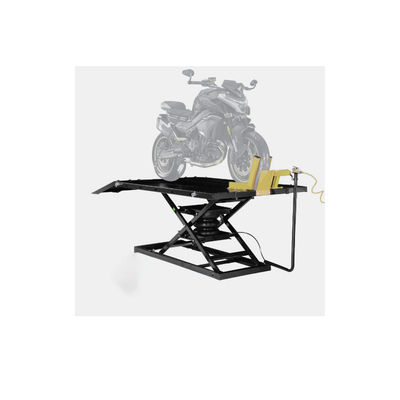

1000lbs Pneumatic Moto Lift: 680kg Capacity, 178-940mm Ht for Repair/4S/Modification

Large Image : 1000lbs Pneumatic Moto Lift: 680kg Capacity, 178-940mm Ht for Repair/4S/Modification

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD08-005A

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model No.:	YD08-005A	Product Name:	1,500lbs (680KGS) Pneumatic Motorcycle Lift
Capacity:	680KGS (1,500lbs)	Minimum Lifting Height:	178MM (7")
Maximum Lifting Height:	940MM (37")	Package Size:	2035MM × 870MM × 390MM (80.1" × 34.25" × 15.35")
Highlight:	1000lbs pneumatic motorcycle lift , 680kg capacity moto lift bench , 178-940mm height motorcycle repair lift

YD08-005A 1,500lbs (680KGS) Pneumatic Motorcycle Lift

High-efficiency pneumatic lift designed for medium and heavy-duty motorcycle maintenance, featuring exceptional load capacity, low minimum height, and rapid pneumatic lifting.

Product Specifications

Parameter Category	Specific Value
Model No.	YD08-005A
Product Name	1,500lbs (680KGS) Pneumatic Motorcycle Lift
Capacity	680KGS (1,500lbs)
Minimum Lifting Height	178MM (7")
Maximum Lifting Height	940MM (37")
Table Size	2000MM × 1240MM (78.7" × 48.8")
Lifting Type	Pneumatic
Pressure Range	1.6MPa
Net Weight (N.W.)	254KGS (560Ib)
Package Size	2035MM × 870MM × 390MM (80.1" × 34.25" × 15.35")

Key Features

Superior Load Capacity: 680KGS capacity with reinforced steel construction for heavy motorcycle support
Optimal Height Range: 178MM-940MM lifting range accommodates low-profile and standing maintenance needs
Pneumatic Efficiency: 30% faster operation than manual hydraulic lifts with 1.6MPa pressure range
Enhanced Workspace: Oversized 78.7"×48.8" anti-slip tabletop with tool placement area

Applications

Professional heavy motorcycle repair shops
Motorcycle 4S shop after-sales workshops
Commercial motorcycle maintenance stations
Motorcycle modification workshops

Frequently Asked Questions

Q: Does the pneumatic drive require additional air source equipment?

A: Yes. Requires air compressor with output pressure ≥1.6MPa (recommended ≥200L volume for continuous operation).

Q: Can it adapt to ultra-low-pressure motorcycles with 170MM chassis height?

A: Not recommended directly. Use 5-8MM rubber pad or select dedicated ultra-thin lift for ≤170MM applications.

Q: How to address air leakage after long-term use?

A: Check/tighten connections, replace damaged pipes (≥2MPa), and replace cylinder seals if needed with original parts.

Q: What precautions for moving the 254KGS unit?

A: Use 2-3 person team or ≥300KGS capacity trolley. Install on level ground with non-slip pads for stability.
