1500LB Moto Lift: 680kg Capacity, Expandable Side Plates for Repair/4S/Modification

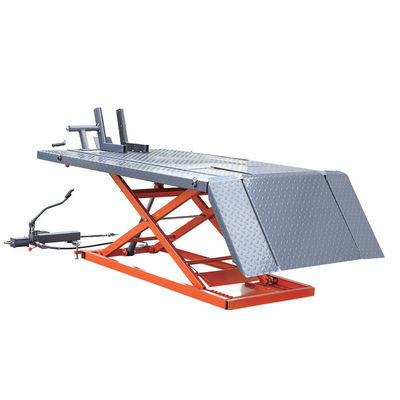

Large Image : 1500LB Moto Lift: 680kg Capacity, Expandable Side Plates for Repair/4S/Modification

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD08-005B

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model No.:	YD08-005B	Product Name:	1500LB MOTORCYCLE LIFT
Capacity:	680KGS (1500LBS)	Main Table Size:	78.7" × 27.95" (200CM × 71CM)
Main Ramp Size:	25.6" × 27.95" (65CM × 71CM)	Side Plate Size:	78.75" × 10" (200CM × 25.4CM)
Highlight:	1500LB motorcycle lift bench , expandable side plates moto lift , 680kg capacity motorcycle repair lift

YD08-005B 1500LB (680KGS) Motorcycle Lift

Product Specifications

Parameter Category	Specific Value
Model No.	YD08-005B
Product Name	1500LB MOTORCYCLE LIFT
Capacity	680KGS (1500LBS)
Main Table Size	78.7" * 27.95" (200CM * 71CM)
Main Ramp Size	25.6" * 27.95" (65CM * 71CM)
Side Plate Size	78.75" * 10" (200CM * 25.4CM)
Side Ramp Size	25.6" * 10" (65CM * 25.4CM)
Min Height	7.28" (18.5CM)
Max Height	32.68" (83CM)
Gross Weight (G.W.)	572LBS (260KGS)
Net Weight (N.W.)	528LBS (240KGS)
Package Size	81.5" * 29" * 13.77" (207CM * 74CM * 35CM)

Product Features

Wide-Body Stable Load-Bearing: 200CM * 71CM main tabletop with high-strength steel construction and anti-slip surface treatment supports wide-body models up to 680KG capacity.
Low-High Dual Adaptation: 18.5CM minimum height with ramps for easy access, extending to 83CM maximum height for comfortable standing maintenance.
Expandable Side Plates: Detachable side plates (200CM * 25.4CM) and ramps adapt to three-wheeled motorcycles and models with side boxes.
Durable Construction: Reinforced welded structure with anti-slip pattern ramps, resistant to impact, wear, and corrosion from oil/moisture exposure.

Application Scenarios

Medium and Heavy-Duty Motorcycle Repair Shops
Motorcycle Brand 4S Shop After-Sales
Motorcycle Modification Workshops
Motorcycle Racing Logistics Stations

Frequently Asked Questions

Q1: Will the load capacity be affected after installing the side plates?

A1: No. The side plates and main tabletop are made of high-strength steel of the same material, maintaining the 680KG capacity when properly installed with all buckles fully clamped.

Q2: Can it adapt to ultra-low-pressure motorcycles with a chassis height of 17CM?

A2: Not recommended. For 17CM chassis height, use a 3-5MM rubber pad at the table edge or select a dedicated ultra-thin lift with ≤17CM minimum height.

Q3: What should be noted when moving and installing this 240KG lift?

A3: Requires 3-4 people or a ≥300KG roller cart. Install on level ground, calibrate with a level, and add non-slip pads under the base for stability.

Q4: How to improve anti-slip effect when ramp patterns are worn?

A4: Apply 2-3MM thick anti-slip tape or contact brand after-sales for original pattern repair accessories. Avoid DIY grinding.
