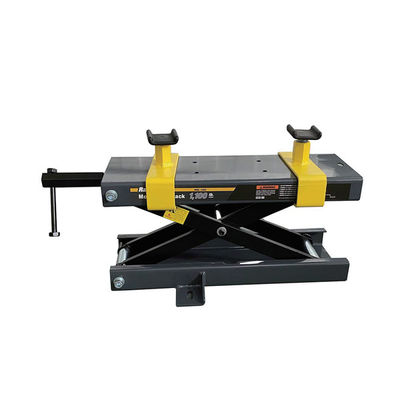

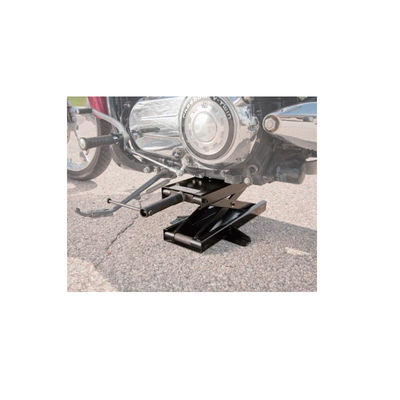

1100LB Moto Lift: Scissor Mechanism, Sliding "U" Supports for Shops/Enthusiasts/Modification

china Jiaxing Yeeda International Co.,Ltd certification
china Jiaxing Yeeda International Co.,Ltd certification
I'm Online Chat Now

1100LB Moto Lift: Scissor Mechanism, Sliding "U" Supports for Shops/Enthusiasts/Modification

1100LB Moto Lift: Scissor Mechanism, Sliding "U" Supports for Shops/Enthusiasts/Modification
1100LB Moto Lift: Scissor Mechanism, Sliding "U" Supports for Shops/Enthusiasts/Modification 1100LB Moto Lift: Scissor Mechanism, Sliding "U" Supports for Shops/Enthusiasts/Modification

Large Image :  1100LB Moto Lift: Scissor Mechanism, Sliding "U" Supports for Shops/Enthusiasts/Modification

Product Details:
Place of Origin: Zhejiang,China
Brand Name: YEEDA
Certification: CE
Model Number: YD08-010
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Detailed Product Description
Model No.: YD08-010 Product Name: 1100LB MOTORCYCLE LIFT
Structure Type: Scissor Style Mechanism Support Stand Minimum Lifting Height: 90mm
Maximum Lifting Height: 405mm Platform Size: 450×150mm
Highlight:

1100LB motorcycle scissor lift

,

sliding U support moto lift

,

motorcycle modification lift bench

1100LB Moto Lift: Scissor Mechanism, Sliding "U" Supports for Shops/Enthusiasts/Modification
Product Specifications
Parameter Category Specific Value
Model No. YD08-010
Product Name 1100LB MOTORCYCLE LIFT
Structure Type Scissor style mechanism support stand
Applicable Scenarios Independent floor use, overlay use on large motorcycle lifts
Minimum Lifting Height 90mm
Maximum Lifting Height 405mm
Platform Size 450×150mm
Product Weight 13kgs
Package Size 53×34×10CM
Core Configuration Scissor lifting mechanism, dual sliding "U" shaped supports on platform
Product Details

The YD08-010 1100LB Motorcycle Lift is a professional maintenance auxiliary device focusing on precise fixing and dual-scenario adaptation. Designed specifically for medium and light motorcycle chassis support and component maintenance, it solves the pain points of traditional lifts such as unstable fixing and limited model adaptation.

Key Features:
  • Flexible Reuse in Dual Scenarios: Scissor support mechanism allows for floor use or overlay on large lifts to increase height for in-depth maintenance.
  • Dual Sliding "U" Shaped Precise Fixing: Adjustable supports improve fixing stability by 80% compared to flat supports, ideal for street bikes and light cruising motorcycles.
  • Wide Range Height Adaptation: 90mm minimum height for easy loading, 405mm maximum height for comfortable standing operations.
  • Lightweight & Portable: 13kg weight with compact storage (53×34×10CM) for easy transport and space-saving storage.
Application Scenarios
  • Small & Medium-Sized Motorcycle Repair Shops: Efficiently switches between basic and in-depth maintenance scenarios.
  • Individual Motorcycle Enthusiasts: Enables flexible personal maintenance without professional equipment.
  • Motorcycle 4S Shop After-Sales Workshop: Provides professional protection for new car inspections and fine maintenance.
  • Motorcycle Modification Workshops: Supports stable frame positioning for precise modification work.
Frequently Asked Questions
Q1: Can the 1100LB load capacity adapt to a light three-wheeled motorcycle weighing 490kg?
A1: Yes. 490kg does not exceed the rated load capacity of 1100LB (approx. 500kg). Adjust the "U" shaped supports to the key load-bearing parts of the frame to ensure proper balance.
Q2: The "U" shaped supports slide unsmoothly and cannot be accurately aligned with the frame down tubes. How to deal with it?
A2: Clean the track, apply lubricating oil, check screw tightness, and ensure the platform is level for smooth operation.
Q3: When manually operating the scissor mechanism to lift or lower, obvious jamming or abnormal noise occurs. What should I do?
A3: Clean and lubricate the mechanism, check for loose components, and contact after-sales service if abnormal noise persists.
Q4: Is additional fixing of the lift itself required when using it overlay on a large lift?
A4: Additional fixing is recommended using nylon cable ties or anti-slip rubber pads to ensure stability during operation.
1100LB Moto Lift: Scissor Mechanism, Sliding "U" Supports for Shops/Enthusiasts/Modification 0 1100LB Moto Lift: Scissor Mechanism, Sliding "U" Supports for Shops/Enthusiasts/Modification 1
