1500LB Moto Wheel Chock: 5-Hole Adjust, Auto-Lock for Transport/Maintenance/Storage

china Jiaxing Yeeda International Co.,Ltd certification
china Jiaxing Yeeda International Co.,Ltd certification
I'm Online Chat Now

1500LB Moto Wheel Chock: 5-Hole Adjust, Auto-Lock for Transport/Maintenance/Storage

1500LB Moto Wheel Chock: 5-Hole Adjust, Auto-Lock for Transport/Maintenance/Storage
1500LB Moto Wheel Chock: 5-Hole Adjust, Auto-Lock for Transport/Maintenance/Storage

Large Image :  1500LB Moto Wheel Chock: 5-Hole Adjust, Auto-Lock for Transport/Maintenance/Storage

Product Details:
Place of Origin: Zhejiang,China
Brand Name: YEEDA
Certification: CE
Model Number: YD08-024
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Detailed Product Description
Model No.: YD08-024 Product Name: 1500LB Locking & Adjusting Motorcycle Wheel Chock
Capacity: 1500LB (Approx. 680kg/680KGS) Overall Depth: 26 Inches (default To Inches, No Unit Specified)
Net Weight/Gross Weight (N.W./G.W.): 10kg/11kg (10/11KGS) Package Size: 64cm × 54cm × 16cm (64x54x16cm)
Highlight:

1500LB motorcycle wheel chock

,

adjustable auto-lock wheel chock

,

motorcycle transport maintenance storage chock

1500LB Moto Wheel Chock: 5-Hole Adjust, Auto-Lock for Transport/Maintenance/Storage

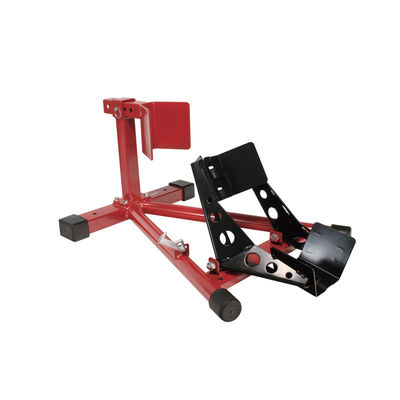

YD08-024 1500LB (Approx. 680kg) Locking & Adjusting Motorcycle Wheel Chock
Product Specifications
Parameter Category Specific Value
Model No. YD08-024
Product Name 1500LB Locking & Adjusting Motorcycle Wheel Chock
Capacity 1500LB (Approx. 680kg/680KGS)
Overall Depth 26 inches
Overall Height 6 inches
Overall Width 22 inches
Net Weight/Gross Weight (N.W./G.W.) 10kg/11kg (10/11KGS)
Package Size 64cm × 54cm × 16cm (64x54x16cm)
Core Configuration High-grade alloy steel body, 4 non-slip rubber feet, self-wheel locking system, safety latch, 5 adjustment holes on upper shoe
Applicable Tires 120/70-17" front tires; compatible with 110mm tires, 16" tires for sports bikes, 21" large tires (e.g., Harley-Davidson models); fits most 16"-21" front wheels
Core Functions Secures motorcycles in upright position (transportation/maintenance/storage), prevents vehicle from backing out during transportation, automatic tire release, single-person loading/unloading, multi-gear adjustment for different tires
Product Details

The YD08-024 1500LB Locking & Adjusting Motorcycle Wheel Chock is an upgraded motorcycle fixing tool focusing on "multi-gear adaptation + automatic locking + all-scenario safety". It enhances adjustment flexibility and locking reliability, solving the pain points of limited tire adaptation and insufficient transportation stability.

  • 5 Adjustment Holes Design, Full-Size Tire Compatibility: The upper shoe features 5 adjustment holes for wider adaptation range - small holes for narrow tires below 16", middle holes for mainstream 120/70-17" front tires, and large hole for 21" tires (e.g., Harley models). Controls lateral displacement within 2mm during transportation.
  • Self-Wheel Locking System: Automatically clamps tire surface to form three-point fixation when motorcycle is pushed in. Combined with safety latch for dual protection against emergency braking and bumps. 80% safer than manual locking wheel chocks.
  • High-Grade Alloy Steel Construction: Hardness of HRC32 with multi-layer anti-rust treatment. 1500LB load capacity supports medium and heavy-duty motorcycles. 4 non-slip rubber feet (anti-slip coefficient ≥0.8) for stability and easy loading/unloading.
  • Automatic Release & Single-Person Operation: Simply pull motorcycle back slightly (5-8kg force) to trigger release. Lightweight 10kg design allows single-person transport and installation. Doubles operation efficiency compared to traditional wheel chocks.
Application Scenarios
  • Cross-Province Long-Distance Motorcycle Transportation: Secures motorcycles on trailers or pickup trucks during transport, preventing tipping and sliding even on rough roads.
  • Motorcycle Repair Shops: Quickly adapts to different models (16"-21" tires) for maintenance operations like brake pad replacement and wheel hub cleaning.
  • Home Garage Storage: Saves 30% horizontal space when storing multiple motorcycles. Prevents tipping and protects floors from scratches.
  • Motorcycle Race Logistics: Enables rapid dispatching of participating motorcycles for pre-race inspection, in-race maintenance, and post-race storage.
Frequently Asked Questions
Q1: Can the 1500LB load capacity adapt to a heavy three-wheeled motorcycle weighing 650kg?
A1: Yes. 650kg is within the rated 1500LB (approx. 680kg) capacity with 6% safety margin. Ensure the driving wheel engages the 5th gear large hole and check ground is flat. For soft ground, use a 3cm thick steel plate.
Q2: How to choose among the 5 adjustment holes? Is it easy for beginners to confuse?
A2: Simple selection: 1-2 gears for 16" and below tires, 3-4 gears for 17-19" tires, 5th gear for 20-21" tires. Adjustment holes are numbered for easy reference.
Q3: After long-term use, the sensitivity of the self-wheel locking system decreases. How to maintain it?
A3: Weekly: wipe contact surface. Monthly: apply silicone-based lubricant. If sensitivity still decreases, check safety latch for wear and replace if necessary.
Q4: With a net weight of 10kg, is it difficult for a single person to carry and fix it to the truck bed?
A4: No. Three simple steps: lift by hand-held grooves, mark/drill bolt holes, tighten bolts. Can be completed by one person in 25-30 minutes.
1500LB Moto Wheel Chock: 5-Hole Adjust, Auto-Lock for Transport/Maintenance/Storage 0
