1100LB Moto ATV Lift: Hydraulic, 40CM Lift, 67x35cm Platform for Garage/Shop/Camp

Brand Name: YEEDA
Model Number: YD08-034
Place of Origin: Zhejiang,China
Certification: CE
Minimum Order Quantity: 50pcs
Supply Ability: 500PCS/MONTH
Delivery Time: 30-45DAYS
Payment Terms: T/T
Standard Packaging: Carton Box or Crate

Product Details


Model No.: YD08-034 Product Name: 1100LB Motorcycle ATV Lift
Capacity: 1100LB (500kg/500KGS) QTY (Quantity Per Carton): Carton) 1PC/CTN
Gross Weight (G.W.): 55LB (25kg/25KGS) Net Weight (N.W.): 50.6LB (23kg/23KGS)
Highlight

hydraulic motorcycle lift

,

ATV lift with 40cm height

,

garage moto lift 1100lb capacity

Product Description

YD08-034 1100LB (500kg) Motorcycle ATV Lift
Product Specifications
Parameter Category Specific Value
Model No. YD08-034
Product Name 1100LB Motorcycle ATV Lift
Capacity 1100LB (500kg/500KGS)
QTY (Quantity per Carton) 1PC/CTN
Gross Weight (G.W.) 55LB (25kg/25KGS)
Net Weight (N.W.) 50.6LB (23kg/23KGS)
Lift Height 4.3"-15.7" (11cm-40cm/11-40CM)
Package Size 30.7" × 20.8" × 5" (78cm × 53cm × 12.5cm/78x53x12.5CM)
Core Configuration Dual-tube load-bearing frame, hydraulic pump pedal, manual control valve, extra-large contact area lift platform (67×35cm), stable support structure
Core Functions 1100LB load lifting, hydraulic safe lifting (foot-operated lift, manual lowering), front/rear wheel maintenance support, extra-large platform stable parking, adapted for motorcycle/ATV maintenance
Applicable Models Motorcycles (small-displacement scooters, medium-light street bikes, cruisers), ATVs (all-terrain vehicles) and other models with weight ≤500kg
Product Features
  • Dual-Tube Frame + Extra-Large Platform: Reinforced dual-tube frame with 50% increased deformation resistance and 67×35cm anti-slip platform for maximum stability.
  • Hydraulic Foot-Operated Lifting: Requires only 8-10kg of force per step with controlled manual lowering (0.5cm/s minimum speed) for safe operation.
  • 11-40CM Lifting Range: Accommodates all maintenance scenarios from wheel service (15-20cm) to chassis inspection (30-40cm).
  • Lightweight & Portable: 23kg net weight with 15-minute assembly time for garage, shop, or field use.
Application Scenarios
  • Home Garage Maintenance: Ideal for oil changes, chain cleaning, and brake inspections with one-person operation.
  • Repair Shop Workstation: Increases efficiency (2-minute lifting time) while reducing technician fatigue during chassis work.
  • ATV Camp Repairs: Portable design fits in SUV trunks for power-free emergency maintenance in remote locations.
  • Training Demonstrations: Stable platform for teaching chassis components with controlled lifting speed.

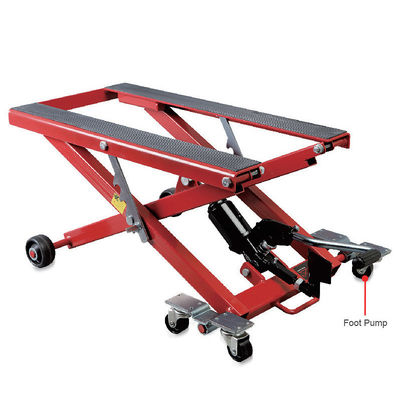

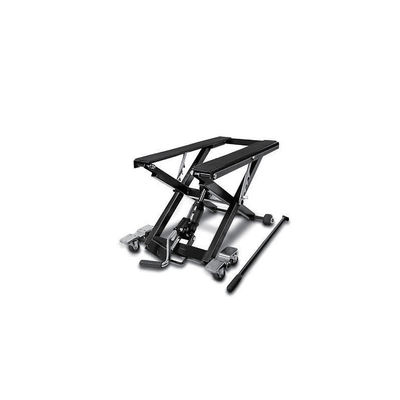

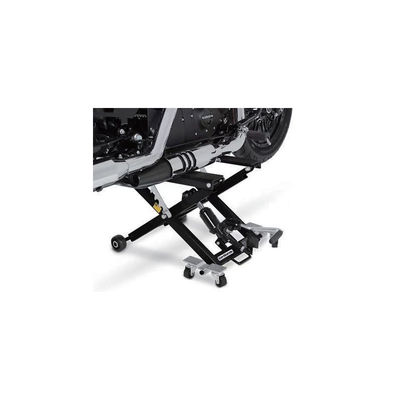

YD08-034 ATV Lift showing dual-tube frame and hydraulic pump Close-up of lift platform with anti-slip surface Lift in use with motorcycle at maximum height
Frequently Asked Questions
Q1: Can this lift handle a 480kg ATV safely?
A1: Yes. The 500kg capacity includes an 8% safety margin. Center the ATV on the platform and use rubber pads for protruding components.
Q2: How to maintain the hydraulic pump if it leaks?
A2: Monthly oil level checks (ISO VG46 recommended), quarterly inlet cleaning, and seal replacement if needed (spare included).
Q3: Is assembly difficult for one person?
A3: No. The 3-step process (frame-pump-pedal connection) takes 15 minutes without special tools.
Q4: Is the platform stable at maximum height?
A4: Yes. The low center of gravity design and large contact area maintain stability even at 40cm.

Product Highlights

YD08-034 1100LB (500kg) Motorcycle ATV Lift Product Specifications Parameter Category Specific Value Model No. YD08-034 Product Name 1100LB Motorcycle ATV Lift Capacity 1100LB (500kg/500KGS) QTY (Quantity per Carton) 1PC/CTN Gross Weight (G.W.) 55LB (25kg/25KGS) Net Weight (N.W.) 50.6LB (23kg/23KGS) ...
