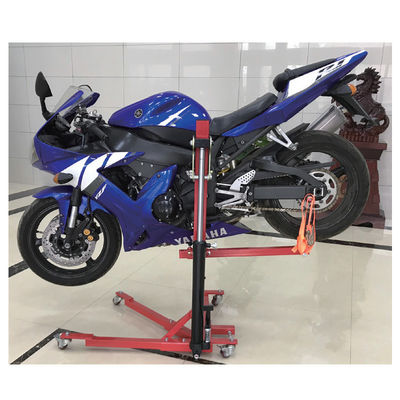

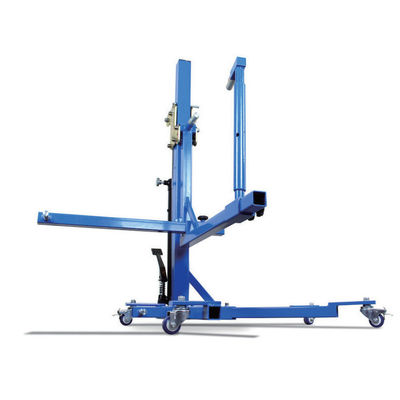

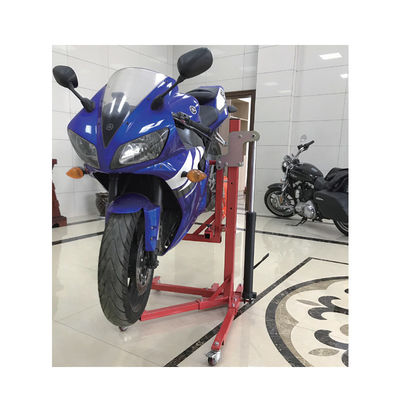

1100LB Moto Sky Lift: 3Ton Hydraulic, 45CM Lift, 3-Pin for Shop/Race/Warehouse

Large Image : 1100LB Moto Sky Lift: 3Ton Hydraulic, 45CM Lift, 3-Pin for Shop/Race/Warehouse

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD08-035

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model No.:	YD08-035	Product Name:	1100LB Motorcycle Sky Lift With Hydraulic Cylinder
Capacity:	1100LB (500kg/500KGS)	Hydraulic Ram Capacity:	6,600LB (3,000kg)
Lifting Height:	17.7" (45cm/45CM)	Gross Weight (G.W.):	132LB (60kg/60KGS)
Highlight:	1100LB motorcycle lift hydraulic , 3Ton motorcycle lift for shop , 45CM lift height motorcycle bench

1100LB Moto Sky Lift: 3Ton Hydraulic, 45CM Lift, 3-Pin for Shop/Race/Warehouse

Product Specifications

Parameter Category	Specific Value
Model No.	YD08-035
Product Name	1100LB Motorcycle Sky Lift with Hydraulic Cylinder
Capacity	1100LB (500kg/500KGS)
Hydraulic Ram Capacity	6,600LB (3,000kg)
Lifting Height	17.7" (45cm/45CM)
Connecting Pin Specifications	3 replaceable connecting pins with diameters of 18mm, 23mm, and 25mm respectively
Gross Weight (G.W.)	132LB (60kg/60KGS)
Net Weight (N.W.)	105.6LB (48kg/48KGS)
Package Specification	2 units per set, outer package is "L"-shaped wooden case, size 49.2"×21.2"×38.6" (125cm×54cm×98cm)

Core Features

3-ton hydraulic cylinder with 500% safety margin for stable lifting
Multi-specification connecting pins (18mm/23mm/25mm) for 90% model adaptation
High-strength load-bearing frame with Q345 steel construction
Safety locking device prevents falling with 1000kg locking capacity
"L"-shaped protective wooden case for secure transportation

Product Details

The YD08-035 1100LB Motorcycle Sky Lift is designed for vertical lifting and safe transfer of motorcycles in professional settings. It solves common challenges in repair shops, race logistics, and vehicle warehousing with its robust construction and advanced features:

Key Advantages

3-Ton Hydraulic Cylinder: Provides stable lifting with 6,600LB capacity and double-seal design for leak prevention
Three-Specification Connecting Pins: High-strength alloy steel pins (18mm/23mm/25mm) adapt to various motorcycle frames
Safety Locking System: Mechanical lock engages automatically at target height with 1000kg load capacity
Durable Construction: Q345 steel frame with rust-preventive treatment and wear-resistant paint
Secure Packaging: Custom "L"-shaped wooden case with EPE foam for transportation protection

Application Scenarios

Professional Motorcycle Repair Shops: Ideal for engine disassembly and chassis overhaul of medium/heavy motorcycles
Race Logistics: Enables efficient vertical transfer between transport vehicles and workstations
Warehousing Centers: Maximizes storage space with vertical lifting capability
Cross-Border Trade: Secure packaging protects high-value motorcycles during long-distance transport

Frequently Asked Questions

Q1: How to confirm if my motorcycle is compatible with this sky lift?

Check your motorcycle's weight (≤500kg) and frame for connecting pin holes (18-25mm diameter, ≥5cm depth). Consult your manual or a professional if unsure.

Q2: What maintenance is required for the hydraulic cylinder?

Check hydraulic oil level every 3 months, clean the oil inlet filter, and replace seal rings if needed. Use No. 46 anti-wear hydraulic oil.

Q3: Is single-person assembly possible?

Two-person assembly is recommended due to the 48kg weight. The process takes 30-40 minutes with proper tools.

Q4: How does the safety locking device work?

The mechanical lock engages automatically at maximum height, with 1000kg capacity to prevent accidental lowering.
