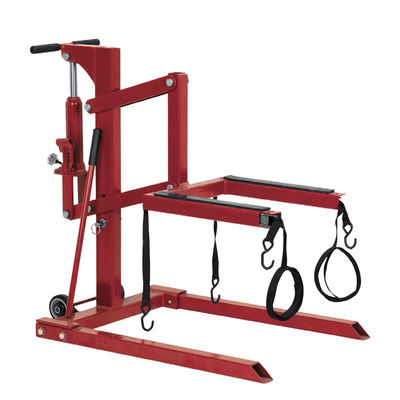

1100LB High-Pos Moto Lift: 6.4-76CM Range, 4" Rubber Casters for Shop/Exhibition/Warehouse

Large Image : 1100LB High-Pos Moto Lift: 6.4-76CM Range, 4" Rubber Casters for Shop/Exhibition/Warehouse

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD08-035

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model No.:	YD08-036	Product Name:	1100LB High Position Motorcycle Lift (500kg Rated Load)
Capacity:	1100LB (500kg)	Lifting Range:	2.5"-30" (6.4cm-76cm)
Caster Specification:	4" (10cm), Rubber Material	Lift Platform Size:	17.7" × 6" (45cm × 15cm)
Highlight:	1100LB motorcycle lift bench , high-pos moto lift with casters , motorcycle lift for shop warehouse

YD08-036 1100LB High Position Motorcycle Lift

Product Specifications

Parameter Category	Specific Value
Model No.	YD08-036
Product Name	1100LB High Position Motorcycle Lift (500kg rated load)
Capacity	1100LB (500kg)
Lifting Range	2.5"-30" (6.4cm-76cm)
Caster Specification	4" (10cm), rubber material
Lift Platform Size	17.7" * 6" (45cm * 15cm)
Product Size	112cm * 62cm * 96cm
Gross Weight	114LB (52kg)
Net Weight	106LB (48kg)
Package Size	42" * 25.98" * 16.14" (107cm * 66cm * 41cm)
Surface Coating	Powder coated (rust and corrosion resistant)
Core Configuration	Rubber casters (4"), powder-coated load-bearing frame, 45*15CM lift platform, manual/hydraulic lifting mechanism, safety locking device
Applicable Models	Motorcycles with weight ≤500kg (street bikes, cruisers, vintage motorcycles, light off-road motorcycles)

Product Features

6.4-76CM Ultra-Wide Lifting Range: Full adaptation to high & low scenarios with minimum starting height of 6.4CM (2.5") and maximum lifting height of 76CM (30").
4" Rubber Casters: Stable movement without slipping, each with 80kg load capacity and braking function for secure positioning.
Powder Coated Frame: Q235 steel construction with 80μm coating thickness, passing 48-hour salt spray test for rust resistance.
45*15CM Anti-Slip Platform: Grid texture design increases friction, with rounded edges and reinforcing ribs for stable support.

Application Scenarios

Professional Repair Shops: High-position overhaul (60-76CM) for engine disassembly and gearbox maintenance.
Motorcycle Exhibition Halls: High-position display (30-50CM) to highlight vehicle details and lines.
Individual Enthusiasts: In-depth maintenance without lying on the ground, suitable for home use.
Warehousing Centers: High-position storage (50-76CM) to maximize vertical space utilization.

Frequently Asked Questions

Q1: Can the 500kg load capacity adapt to a heavy cruiser weighing 480kg?

A1: Yes. 480kg is within the rated capacity with a 6% safety margin. Ensure proper center of gravity alignment and use rubber pads for protruding components.

Q2: When lifted to the maximum height of 76cm, how to ensure the platform does not shake?

A2: Stability is ensured through low center of gravity design, platform reinforcing ribs, and caster brakes. Tested lateral displacement is ≤2mm.
