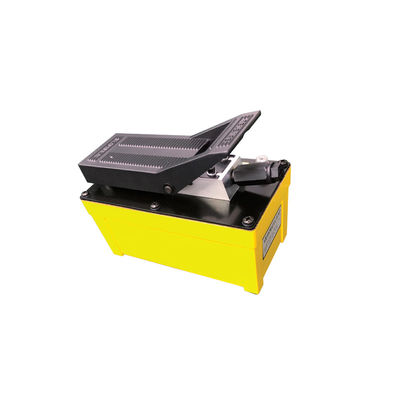

High-Pressure Hydraulic Pump: 70MPa, 850/170ml/min Flow for Engineering/Assembly/Repair

china Jiaxing Yeeda International Co.,Ltd certification
china Jiaxing Yeeda International Co.,Ltd certification
I'm Online Chat Now

High-Pressure Hydraulic Pump: 70MPa, 850/170ml/min Flow for Engineering/Assembly/Repair

High-Pressure Hydraulic Pump: 70MPa, 850/170ml/min Flow for Engineering/Assembly/Repair
High-Pressure Hydraulic Pump: 70MPa, 850/170ml/min Flow for Engineering/Assembly/Repair

Large Image :  High-Pressure Hydraulic Pump: 70MPa, 850/170ml/min Flow for Engineering/Assembly/Repair

Product Details:
Place of Origin: Zhejiang,China
Brand Name: YEEDA
Certification: CE
Model Number: YD02-006
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Detailed Product Description
Product Name: High-Pressure Hydraulic Pump Working Pressure: 0.28-0.86 MPa
Max Hydraulic Pressure: 70 MPa Output Flow (No Load): 850 Ml/min
Output Flow (Loaded): 170 Ml/min Input Port Thread 1/4" (NPT Standard): 1/4" (NPT Standard)
Highlight:

high-pressure hydraulic pump 70MPa

,

hydraulic pump 850/170ml/min flow

,

hydraulic pump for engineering repair

High-Pressure Hydraulic Pump: 70MPa, 850/170ml/min Flow for Engineering/Assembly/Repair
Product Specifications
Parameter Category Specific Value
Product Name High-Pressure Hydraulic Pump
Working Pressure 0.28-0.86 MPa
Max Hydraulic Pressure 70 MPa
Output Flow (No Load) 850 ml/min
Output Flow (Loaded) 170 ml/min
Input Port Thread 1/4" (NPT Standard)
Output Port Thread 3/8" (NPT Standard)
Reservoir Material Aluminum
Reservoir Capacity 1700 ml
Cylinder Inner Diameter 70 mm
Pump Core Outer Diameter 6.8 mm
External Dimension 268 mm × 145 mm × 185 mm
Packing Dimensions 285 mm × 148 mm × 215 mm
Product Details

This high-pressure hydraulic pump is designed for "large flow, light weight, and long endurance" performance, addressing common issues with traditional high-pressure pumps.

  • 850ml/min No-Load Large Flow: More than twice the flow of ordinary pumps, enabling quick start-up and stable operation with ≤2% pressure fluctuation.
  • 70MPa High Pressure + Wide Adjustment: Supports heavy operations like M40+ bolt disassembly and concrete crushing, with precise 0.28-0.86MPa adjustment.
  • Aluminum Reservoir + Lightweight Design: 40% lighter than steel, with anodized surface for corrosion resistance and extended service life.
  • 1700ml Large Reservoir + Reducer Ports: Supports 6 hours of continuous operation with 98% compatibility to most high-pressure equipment.
Application Scenarios
  • Emergency Repair at Engineering Sites: Quick start-up and long endurance for hydraulic breakers in time-sensitive situations.
  • Heavy Assembly in Industrial Workshops: Precise pressure control for assembly operations with ≤0.1mm precision error.
  • Heavy Vehicle Maintenance: Stable support for lifting operations up to 30 tons with easy maneuverability.
  • Outdoor Power Emergency Repair: Compact size for easy transport and rapid deployment in field operations.
Frequently Asked Questions
Q1: How to adapt to existing tool connectors with reducer inlet/outlet threads?
A1: Direct compatibility with most standard connectors. Optional adapters available for non-standard specifications with 98% compatibility.
Q2: What precautions are there when refueling the 1700ml reservoir?
A2: Release internal pressure first, use No. 46 high-pressure anti-wear hydraulic oil, fill to 2/3 capacity, and discharge air after refueling.
Q3: Is the aluminum material safe under high pressure?
A3: Yes, made of 6061-T6 high-strength aluminum alloy with dual safety protections, complying with GB/T 3766-2015 safety standards.
Q4: Will flow be affected in low-temperature environments (e.g., -15℃)?
A4: Can be used normally with No. 46 low-temperature high-pressure anti-wear hydraulic oil (-20℃).
