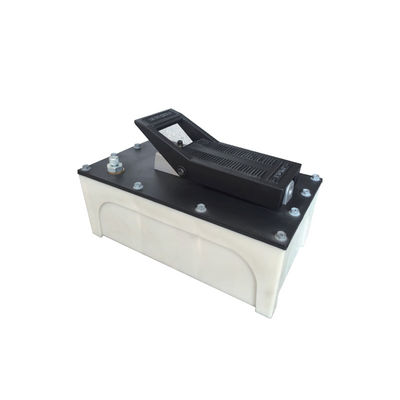

Hydraulic Air Pump: 70MPa, 850/170ml/min Flow, 3200ml Tank for Engineering/Assembly/Repair

Large Image : Hydraulic Air Pump: 70MPa, 850/170ml/min Flow, 3200ml Tank for Engineering/Assembly/Repair

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD02-007

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	HYDRAULIC AIR PUMP	Working Pressure:	0.28-0.86 MPa
Max Hydraulic Pressure:	70 MPa	Output Flow (No Load):	850 Ml/min
Output Flow (Loaded):	170 Ml/min	Input Port Thread:	1/4" (NPT Standard)
Highlight:	Hydraulic air pump 70MPa , Air pump 850ml/min flow , Hydraulic pump motorcycle lift bench

Hydraulic Air Pump: 70MPa, 850/170ml/min Flow, 3200ml Tank for Engineering/Assembly/Repair

Product Specifications

Parameter Category	Specific Value
Product Name	HYDRAULIC AIR PUMP
Working Pressure	0.28-0.86 MPa
Max Hydraulic Pressure	70 MPa
Output Flow (No Load)	850 ml/min
Output Flow (Loaded)	170 ml/min
Input Port Thread	1/4" (NPT Standard)
Output Port Thread	3/8" (NPT Standard)
Reservoir Material	Plastic (high-strength engineering plastic)
Reservoir Capacity	3200 ml
Cylinder Inner Diameter	70 mm
Pump Core Outer Diameter	6.8 mm
External Dimension	332 mm * 189 mm * 190 mm
Packing Dimensions	340 mm * 210 mm * 215 mm

Core Features

Air-Driven Labor-Saving Operation: Automatically runs when connected to an air compressor (0.28-0.86MPa), eliminating manual handle pressing. Reaches working pressure in just 20 seconds with efficiency 3 times higher than manual pumps.
Dual Flow Output: 850ml/min under no-load for quick tool filling, automatically switches to 170ml/min when loaded for stable operation with ≤2% pressure fluctuation.
Large Capacity Reservoir: 3200ml capacity supports 10 hours of continuous operation. High-strength engineering plastic construction is 50% lighter than steel with superior corrosion resistance.
Wide Compatibility: Standard NPT threads (1/4" input, 3/8" output) with 98% tool compatibility. Stepless pressure adjustment from 0.28-0.86MPa for various high-pressure tools.

Application Scenarios

Engineering Site Repairs: Supports 8+ hours continuous operation for hydraulic breakers and equipment maintenance without refueling.
Industrial Assembly: Precision pressing operations with ≤0.1mm error for heavy component assembly in manufacturing.
Heavy Vehicle Maintenance: 70MPa pressure for stable support during chassis repairs on trucks and engineering vehicles.
Outdoor Emergency Repairs: Compact size (340*210*215mm) fits in vehicle toolboxes, air-driven operation requires no external power.

Frequently Asked Questions

Q: What air compressor specifications are required?

A: Compatible with standard industrial air compressors meeting: 0.28-0.86MPa working pressure, ≥0.3m³/min displacement, and 1/4" NPT thread connection.

Q: Is the plastic reservoir strong enough?

A: Yes. The high-strength engineering plastic (PA6 + glass fiber) has 80MPa tensile strength and 100MPa compressive strength, with no deformation at 70MPa working pressure.
