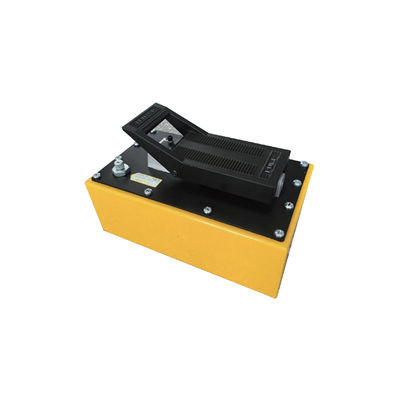

High-Pressure Hydraulic Air Pump: 70MPa, 850/170ml/min, 3200ml Tank for Engineering/Repair/Assembly

Large Image : High-Pressure Hydraulic Air Pump: 70MPa, 850/170ml/min, 3200ml Tank for Engineering/Repair/Assembly

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD02-008

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Highlight:

high-pressure hydraulic air pump 70MPa

hydraulic air pump 3200ml tank

air pump for engineering repair

High-Pressure Hydraulic Air Pump: 70MPa, 850/170ml/min, 3200ml Tank

Professional power device for engineering, repair, and assembly applications with high-pressure efficiency, long endurance, and durability.

Product Specifications

Parameter Category	Specific Value
Product Name	High-Pressure Hydraulic Air Pump
Working Pressure	0.28-0.86 MPa
Max Hydraulic Pressure	70 MPa
Output Flow (No Load)	850 ml/min
Output Flow (Loaded)	170 ml/min
Input Port Thread	1/4" (NPT Standard)
Output Port Thread	3/8" (NPT Standard)
Reservoir Material	Steel (high-strength low-carbon steel)
Reservoir Capacity	3200 ml
Cylinder Inner Diameter	70 mm
Pump Core Outer Diameter	6.8 mm
External Dimension	332 mm × 189 mm × 190 mm
Packing Dimensions	340 mm × 220 mm × 215 mm

Core Features

70MPa High Pressure + Steel Structure: High-strength low-carbon steel construction with ≤0.3mm deformation at 70MPa, chrome-plated cylinder with Ra0.4μm finish, and ≤0.5ml/h hydraulic oil leakage.
Dual Flow Efficiency: 850ml/min no-load flow for quick start-up and 170ml/min loaded flow for stable operation with ≤1.5% pressure fluctuation.
3200ml Large Reservoir: Supports 12 hours of continuous operation without refueling, reducing downtime in high-intensity scenarios.
Air-Driven Operation: Compatible with 0.28-0.86MPa air compressors, saving 90% labor compared to manual pumps.
Wide Compatibility: NPT reducer threads (1/4" in + 3/8" out) compatible with 98% of hydraulic tools without adapters.

Application Scenarios

Heavy Equipment Emergency Repair: Disassemble/assemble heavy chassis bolts at mining and construction sites with 70MPa pressure and 8+ hours continuous operation.
Vehicle Chassis Overhaul: Lift vehicles up to 30 tons with stable 70MPa support and air-driven operation for technician efficiency.
Industrial Component Assembly: Press large gearboxes and engine blocks with 0.28-0.86MPa adjustable pressure and ≤0.1mm precision error.
Outdoor Infrastructure Repair: Operate in rain-resistant conditions with no external power required, ideal for bridge supports and high-voltage tower maintenance.

Frequently Asked Questions

What parameter air compressor is needed for air-driven operation?

Compatible with conventional industrial air compressors meeting: (1) Working pressure 0.28-0.86MPa, (2) Displacement ≥0.3m³/min, (3) 1/4" NPT thread interface. Most workshop compressors are compatible.
