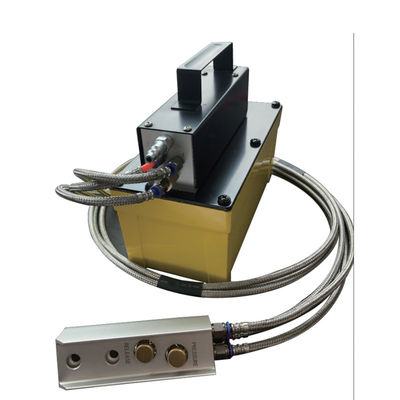

10,000 PSI Air Hydraulic Pump: 0.8/0.16L/min Flow, 2.3L Tank for Petrochemical/Aerospace/Repair

Large Image : 10,000 PSI Air Hydraulic Pump: 0.8/0.16L/min Flow, 2.3L Tank for Petrochemical/Aerospace/Repair

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD02-009

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	10,000 PSI Air Hydraulic Pump	Input Air Pressure:	110-145 PSI
Maximum Output Pressure:	10,000 PSI (approx. 68.95 MPa)	Oil Tank Available Capacity:	2.3 L / 0.61 Gal
Air Flow Rate:	340 L/min	Hydraulic Pump Flow Rate:	0.8 L/min (No Load) / 0.16 L/min (Load)
Highlight:	10 , 000 PSI hydraulic pump for petrochemical , air hydraulic pump with 2.3L tank

10,000 PSI Air Hydraulic Pump: 0.8/0.16L/min Flow, 2.3L Tank for Petrochemical/Aerospace/Repair

Product Specifications

Parameter Category	Specific Value
Product Name	10,000 PSI Air Hydraulic Pump
Input Air Pressure	110-145 PSI
Maximum Output Pressure	10,000 PSI (approx. 68.95 MPa)
Oil Tank Available Capacity	2.3 L / 0.61 Gal
Air Flow Rate	340 L/min
Hydraulic Pump Flow Rate	0.8 L/min (No Load) / 0.16 L/min (Load)
Air Inlet Diameter	1/4" NPT (13.7 mm)
Oil Outlet Diameter	3/8" NPT (16.66 mm)
Net Weight	18.74 lbs / 8.5 kg
Product Dimensions	12.406.777.87 in / 315172200 mm
Core Configuration	High-pressure sealed oil tank, high-flow air-driven system, NPT standard inlet/outlet, pressure adjustment knob, pressure relief protection device (RELEASE PRESSURE), anti-slip base

Product Details

The 10,000 PSI Air Hydraulic Pump is a professional power device designed specifically for ultra-high pressure operation scenarios. It addresses the limitations of traditional hydraulic pumps with its advanced features:

10,000 PSI Ultra-High Pressure Output: Delivers stable 10,000 PSI (68.95 MPa) output with ≤2% pressure fluctuation, ideal for heavy bolt disassembly and high-pressure applications.
Dual Flow Efficiency: 0.8 L/min no-load flow for quick tool preparation and 0.16 L/min loaded flow for precise high-pressure operations.
Large 2.3L Oil Tank: Supports 8+ hours of continuous operation with leak-proof, rust-resistant construction.
Safety & Portability: Quick pressure relief (≤10 sec) and lightweight design (8.5 kg) for safe, mobile operation.

Application Scenarios

Petrochemical Maintenance: High-pressure flange bolt tightening with continuous operation capability.

Aerospace Assembly: Precision component pressing with controlled flow rates.

Heavy Equipment Repair: Portable high-pressure power for field repairs.

Power Industry: Safe maintenance of high-voltage equipment with quick pressure relief.

Frequently Asked Questions

Q: What safety precautions should be taken when using the 10,000 PSI output?

A: Always: 1) Check pressure relief device before use, 2) Ensure tight NPT connections, 3) Wear protective gear, and 4) Release pressure before disassembly.

Q: How to confirm air compressor compatibility?

A: Verify: 1) Output pressure (110-145 PSI) and 2) Air displacement (≥0.3 m³/min). Use regulator if pressure exceeds 145 PSI.
