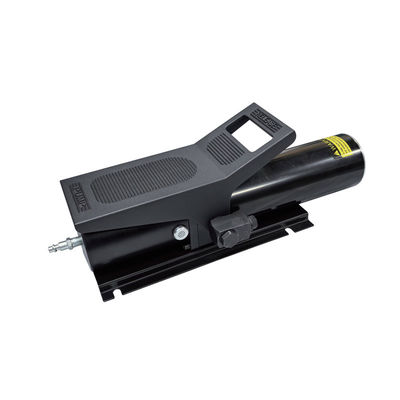

10,000 PSI Air Hydraulic Pump: 700bar, 3/8in NPT for Industry/Engineering/Mining

Large Image : 10,000 PSI Air Hydraulic Pump: 700bar, 3/8in NPT for Industry/Engineering/Mining

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD02-010

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	10,000 PSI Air Hydraulic Pump	Fitting:	3/8in NPT Hydraulic Fitting
Output Pressure:	700 Bar / 10,000 Psi (approx. 68.95 MPa)	Air Supply Required:	120 Psi / 8 Bar
Usable Oil Capacity:	690 Cm³ (approx. 0.69 L)	Dimensions (L×W×H):	370 Mm × 180 Mm × 190 Mm
Highlight:	10 , 000 PSI hydraulic pump for mining , 700bar air hydraulic pump industrial

10,000 PSI Air Hydraulic Pump: 700bar, 3/8in NPT for Industry/Engineering/Mining

Product Specifications

Parameter Category	Specific Value
Product Name	10,000 PSI Air Hydraulic Pump
Fitting	3/8in NPT hydraulic fitting
Output Pressure	700 bar / 10,000 psi (approx. 68.95 MPa)
Air Supply Required	120 psi / 8 bar
Usable Oil Capacity	690 cm³ (approx. 0.69 L)
Dimensions (LWH)	370 mm * 180 mm * 190 mm
Weight	8.9 Kg
Core Configuration	3/8in NPT standard hydraulic fitting, high-pressure sealed cylinder, air-driven module, pressure regulating valve, quick pressure relief device, anti-slip rubber base
Core Functions	10,000 PSI/700bar ultra-high pressure output, 8bar air supply adaptation, 0.69L oil capacity endurance, standardized interface compatibility, quick pressure relief safety protection
Applicable Equipment	Ultra-high pressure hydraulic wrenches, heavy hydraulic jacks, high-pressure pipeline maintenance tools, high-pressure hydraulic systems for engineering machinery, precision high-pressure assembly tools

Product Details

This professional 10,000 PSI Air Hydraulic Pump delivers ultra-high pressure drive with convenient adaptation, solving common issues with traditional high-pressure pumps. Engineered for industrial maintenance, engineering emergency repair, and precision assembly applications.

10,000 PSI Ultra-High Pressure Output: Delivers 700bar (10,000psi) with 98% pressure stability and ≤2% fluctuation, ideal for heavy machinery bolts (M45+) and high-pressure pipeline flanges.
8bar Air Supply Compatibility: Works with standard industrial air compressors (8-10bar), reaching working pressure in 20 seconds - 4x faster than manual pumps.
3/8in NPT Standard Interface: Compatible with most ultra-high pressure hydraulic tools worldwide, featuring leak-proof performance at 10,000 PSI.
Portable Design: Weighs only 8.9kg (370*180*190mm) with anti-slip rubber base (friction coefficient ≥0.85) for stable operation.

Application Scenarios

Heavy Equipment Maintenance: Disassembles large machine tool bolts in automotive/manufacturing plants with compatible workshop tools.
Pipeline Emergency Repair: Secures high-pressure water/oil pipeline flanges in municipal/petroleum industries with portable 8.9kg design.
Precision Equipment Assembly: Provides accurate pressure control for aerospace hydraulic components in confined workshop spaces.
Mining Machinery Repair: Works with mobile air compressors for quick excavator/loader maintenance, reducing downtime.

Frequently Asked Questions

Q1: Can the 3/8in NPT interface adapt to my existing 1/2in NPT hydraulic tools?

A1: Yes, using a high-pressure adapter (≥10,000psi rated). Tighten adapter to pump first, then connect tool, ensuring no gaps. Available from brand after-sales or hardware stores with ≤0.1% leakage rate.

Q2: Is the 0.69L oil capacity sufficient for long operations?

A2: Covers 2-3 hours of intermittent use. For continuous work: ① Carry spare hydraulic oil (1-minute refill) or ② Use external 3/8in NPT oil tank (extends to 2L+ for 8-hour operation).

Q3: What if air pressure exceeds 8bar (120psi)?

A3: Built-in protection valve activates at 150psi (10.3bar). For high-pressure air sources (150-200psi), install a regulator to maintain 8bar for stable operation and extended lifespan.

Q4: How to safely relieve pressure after use?

A4: Follow three steps: ① Disconnect air source, ② Slowly rotate relief valve (≤90°) until gauge reads 0psi, ③ Remove tool interface. Complete in 10 seconds while avoiding relief port.
