Engine Support Bar: 500kg, 1020-1630mm, Dual Hooks for Auto Repair/Modification

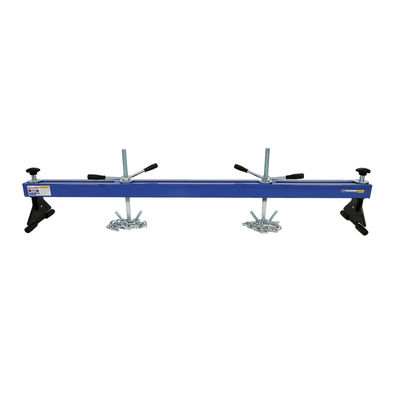

Large Image : Engine Support Bar: 500kg, 1020-1630mm, Dual Hooks for Auto Repair/Modification

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD03-004

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model No.:	YD03-004	Safe Working Capacity:	500 Kg
Minimum Extension:	1020 Mm	Maximum Extension:	1630 Mm
Nett Weight:	23 Kg	Carton Dimensions:	1730 Mm × 180 Mm × 80 Mm (1730x180x80mm)
Highlight:	Engine support bar 500kg capacity , Dual hook engine support bar , Auto repair engine support bar

Engine Support Bar: 500kg, 1020-1630mm, Dual Hooks for Auto Repair/Modification

Product Specifications

Parameter Category	Specific Value
Product Name	YD03-004 500kg Dual Hook Engine Support Bar
Model No.	YD03-004
Safe Working Capacity	500 kg
Minimum Extension	1020 mm
Maximum Extension	1630 mm
Nett Weight	23 kg
Gross Weight	24 kg
Carton Dimensions	1730 mm * 180 mm * 80 mm (1730x180x80mm)
Core Configuration	Dual hook balanced support assembly, adjustable crossbar frame, extra-long rubber cushioned support legs, load leveling adjustment screws, high-gloss enamel finish structure
Core Functions	500kg engine/transmission stable support, 1020-1630mm length adaptation, dual hook balanced force, rubber legs anti-paint damage, adjustment screws precise leveling
Applicable Scenarios	Sedan/SUV engine maintenance support, transmission in-place fixation, multi-model bonnet cross-mount support, automotive chassis component maintenance assistance
Note	Chain not included

Product Details

The YD03-004 500kg Dual Hook Engine Support Bar is specifically designed for in-place support during automotive engine maintenance. It addresses common issues with traditional support tools such as poor stability, limited model compatibility, and potential body damage.

500kg High Load-Bearing + Dual Hook Balance: The Q235 low-carbon steel crossbar frame maintains ≤0.3mm deformation under 500kg load. Dual hooks distribute weight evenly across engine/transmission lifting points, increasing stability by 80% compared to single-hook tools.
1020-1630mm Telescopic Adjustment: Adjustable length accommodates small sedans (1020-1200mm), compact SUVs (1200-1400mm), and medium-to-large sedans (1400-1630mm), covering over 95% of vehicle models.
Extra-Long Rubber Cushioned Legs: 200mm legs with 15mm thick rubber cushions (120cm² contact area) prevent paint damage and provide excellent friction (coefficient ≥0.85).
Leveling Screws + High-Gloss Enamel: Four adjustment screws (0-20mm range) ensure precise engine leveling. 60μm thick enamel coating resists oil and corrosion, offering 2.5x longer lifespan than standard painted tools.

Application Scenarios

Engine Overhaul in Auto Repair Shops: Supports 1020-1400mm length for sedans like Volkswagen Lavida, with rubber legs protecting paint and leveling screws maintaining engine position.
Transmission In-Place Maintenance: 1630mm maximum length accommodates wide-body SUVs, with 500kg capacity securely fixing transmissions during repairs.
Individual Auto Repair: 23kg lightweight design and 1020mm minimum length make it ideal for personal maintenance on compact vehicles like Toyota Corolla.
Auto Modification Shops: Flexible hook positioning and scratch-resistant enamel coating adapt to various modification requirements.

Frequently Asked Questions

Q1: Can the 500kg load capacity support a V6 engine weighing 450kg?

A1: Yes. The product has a 10% safety margin (actual safe load ≈550kg). Ensure dual hooks are attached to symmetrical lifting points and adjust crossbar length to 1400-1630mm for optimal V6 engine support.

Q2: No chain is included, how to connect to the engine lifting points?

A2: Use standard lifting chains (≥500kg capacity, ≥8mm link diameter). Connect chains to engine lifting points and support bar hooks, ensuring equal length for balanced force distribution. For engines without lifting points, use a dedicated engine lifting plate.

Q3: With a maximum length of 1630mm, can it adapt to 7-seater MPV models?

A3: Yes. Extend crossbar to 1500-1550mm for MPVs like Buick GL8, placing support legs on bonnet reinforcing ribs and attaching hooks to engine lifting points.

Q4: After long-term use, the adjustment screws jam. How to handle it?

A4: Clean screw threads with kerosene/diesel, polish lightly with fine sandpaper, then apply lithium-based grease (-20℃-60℃ temperature resistant) and rotate screws 3-5 times to eliminate jamming.
