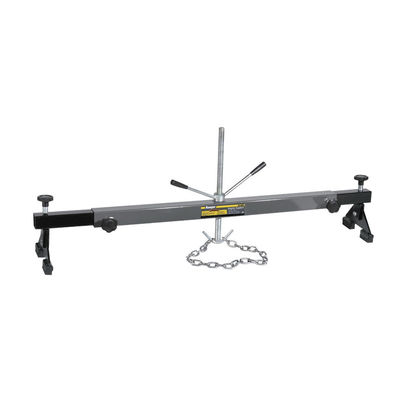

680kg Engine Support: 102-160cm Width, Rubber Pads for Auto Repair/Transmission Removal
Product Details
| Model No.: | YD03-005 | Holding Capacity: | 1495 LBS / 680 Kg |
|---|---|---|---|
| Maximum Width: | 63 In / 160 Cm | Minimum Width: | 40.15 In / 102 Cm |
| G.W. (Gross Weight): | 53 LBS / 24 Kg | Package Size: | 41×7.87×3 In / 104×20×7.6 Cm |
| Highlight |
680kg engine support bar,auto repair rubber pad support,transmission removal motorcycle lift bench |
||
Product Description
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD03-005 680KG Engine Support |
| Model No. | YD03-005 |
| Holding Capacity | 1495 LBS / 680 kg |
| Maximum Width | 63 in / 160 cm |
| Minimum Width | 40.15 in / 102 cm |
| Screw Travel | 1.37 in / 3.3 cm |
| G.W. (Gross Weight) | 53 LBS / 24 kg |
| N.W. (Net Weight) | 50.6 LBS / 23 kg |
| Package Size | 41×7.87×3 in / 104×20×7.6 cm |
| Core Configuration | Straddle-type inner fender support frame, width adjustment component, precision positioning screw, rubber anti-slip foot pad, high-strength load-bearing crossbar |
| Core Functions | 680kg engine stable support, 102-160cm width adaptation for all vehicles, precise positioning to facilitate gearbox removal, rubber foot pads for anti-damage and anti-slip, suitable for 4/6-cylinder engines |
| Applicable Scenarios | Sedan/SUV/MPV engine maintenance, 4/6-cylinder engine in-place fixation, gearbox/transmission system removal assistance, multi-vehicle universal support in auto repair shops |
The YD03-005 680KG Engine Support is a professional tool designed specifically for engine maintenance support for all vehicle models. It addresses common issues with traditional support bars such as narrow vehicle adaptation, low positioning accuracy, and potential body damage.
- 680KG High Load-Bearing: Made of Q345 high-strength steel with a tensile strength of 490MPa. Frame deformation is ≤0.2mm under 680KG rated load, suitable for 4-cylinder (150-250kg) and 6-cylinder (300-680kg) engines.
- 102-160cm Width Adjustment: Free adjustment from 102cm (minimum) to 160cm (maximum) with knob-type lock, covering 99% of vehicles without needing separate support bars.
- Straddle Fender Support + Rubber Foot Pads: Innovative design prevents bonnet oppression; 15mm thick rubber pads (150cm² contact area, ≥0.9 friction coefficient) prevent slipping and protect vehicle paint.
- Precision Positioning Screws: 3.3cm adjustment stroke with ±0.5mm accuracy for fine-tuning engine height and angle, reducing gearbox removal time by 50%.
- Multi-Vehicle Engine Overhaul: Adapts to all vehicle types (102-160cm width) with 680KG load capacity, eliminating the need for multiple support tools.
- Gearbox/Transmission System Removal: Straddle design and rubber pads protect vehicle paint while positioning screws ensure proper alignment during removal.
- 6-Cylinder Commercial Vehicle Maintenance: 680KG capacity supports heavy engines (350-680kg) with 160cm maximum width for commercial vehicle fender spacing.
- Engine Upgrade in Modification Shops: Precise positioning helps maintain optimal removal angle during engine replacement, adapting to modified body sizes.
