2000LB Engine Stand: 40:1 Gearbox, 360° Rotatable for Heavy-Duty Repair/Machinery

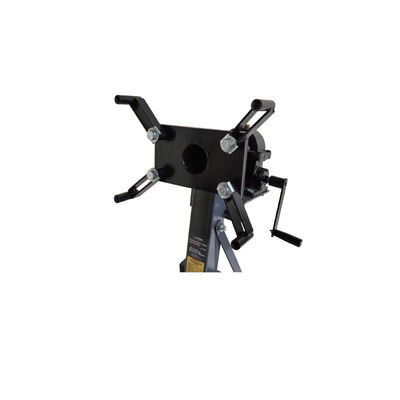

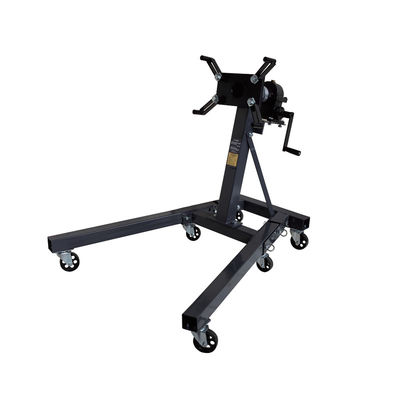

Large Image : 2000LB Engine Stand: 40:1 Gearbox, 360° Rotatable for Heavy-Duty Repair/Machinery

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD04-005

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model No.:	YD04-005	Capacity:	2000 Ib (approx. 907.2 Kg)
Main Material:	High-grade Steel, Including Industrial-grade Steel Load-bearing Castors	Core Structure:	Heavy-gauge Tubular Construction, 4-arm Adjustable Mounting Head, Gearbox Transmission Mechanism
Head Function:	360° Swiveling, Gearbox Ratio 40:1	Surface Treatment:	Lead-free Paint Finish After Thorough Chemical Cleaning, Oil-resistant, Grease-resistant, Dirt-resistant
Highlight:	2000LB engine stand with gearbox , 360° rotatable engine stand , heavy-duty motorcycle lift bench

YD04-005 2000LB Engine Stand with Gearbox

Professional heavy-duty engine stand for high-precision maintenance

Product Specifications

Parameter Category	Specific Value
Product Name	YD04-005 2000LB ENGINE STAND WITH GEARBOX
Model No.	YD04-005
Capacity	2000 Ib (approx. 907.2 kg)
Main Material	High-grade steel, including industrial-grade steel load-bearing castors
Core Structure	Heavy-gauge tubular construction, 4-arm adjustable mounting head, gearbox transmission mechanism
Head Function	360° swiveling, gearbox ratio 40:1
Surface Treatment	Lead-free paint finish after thorough chemical cleaning, oil-resistant, grease-resistant, dirt-resistant
Center Height	1050 mm
Product Size	1190 mm × 850 mm × 1230 mm
Castor Parameters	90 mm diameter, industrial-grade steel load-bearing castors
Distance between legs	680 mm
Tubing Specification	Lower steel tubing: 60×60 mm Column tubing: 70×70 mm
Weight	Net Weight (N.W.): 50 KGS Gross Weight (G.W.): 53 KGS
Package Size	920 mm × 450 mm × 180 mm

Key Features

2000LB Ultra-Load-Bearing: High-grade industrial steel construction with 60×60mm and 70×70mm thickened tubing (5mm wall thickness) provides stable support for heavy components up to 907kg.
40:1 Gearbox & 360° Rotation: Gearbox transmission mechanism reduces rotation effort by 96% (only 1.25kg force needed for 900kg engine) with ±1° angle adjustment accuracy.
Durable Anti-Rust Coating: 80μm lead-free paint finish passes 72-hour salt spray test and resists oil/grease contamination for easy cleaning with simple wiping.
4-Arm Adjustable Mounting: 0-30cm arm length adjustment with multiple bolt holes provides 98% adaptation rate for various engine/transmission configurations.
Industrial-Grade Mobility: 90mm steel castors (2 with brakes) offer ≤10N pushing resistance and ≥0.95 anti-slip coefficient when locked.

Application Scenarios

Heavy-Duty Truck Engine Overhaul: Supports 800kg 8-cylinder engines with precise angle adjustment for cylinder block work at 1050mm optimal height.
Commercial Vehicle Transmission Maintenance: 360° rotation facilitates gear set inspection and clutch replacement while resisting oil contamination.
Construction Equipment Power Component Service: Industrial castors adapt to rough terrain for field maintenance of 850kg excavator/loader engines.
High-Performance Engine Assembly: Adjustable mounting arms accommodate various bolt patterns for racing/off-road vehicle engine builds.

Ideal for professional automotive repair shops, commercial vehicle service stations, heavy equipment maintenance facilities, and performance engine builders requiring reliable heavy-duty support with precision positioning capabilities.
