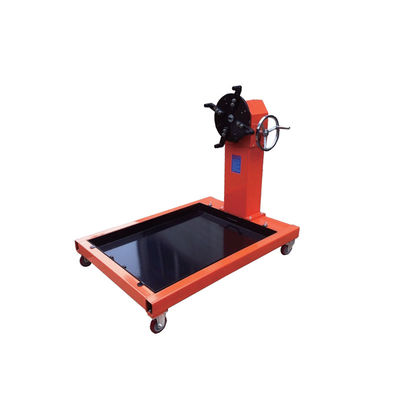

800kg Engine Stand: Gearbox, 360° Rotatable, Oil Tray for Heavy-Duty Repair/Machinery
Product Details
| Model No.: | YD04-007 | Capacity: | 800 Kgs |
|---|---|---|---|
| Main Material: | High-grade Steel (Q345 Low-carbon Steel) | Head Function: | 360° Swiveling, Gearbox-assisted Angle Adjustment (gear Ratio Head) |
| Center Height: | 945 Mm | Product Size: | 1300 Mm × 940 Mm × 1000 Mm (1300×940×1000 Mm) |
| Highlight |
800kg engine stand with oil tray,360° rotatable gearbox engine stand,heavy-duty engine stand for machinery repair |
||
Product Description
| Parameter Category | Specification 1# | Specification 2# |
|---|---|---|
| Product Name | YD04-007 800kg Engine Stand with Gearbox (1#) | YD04-007 800kg Engine Stand with Gearbox (2#) |
| Model No. | YD04-007 | YD04-007 |
| Capacity | 800 kgs | 800 kgs |
| Main Material | High-grade steel (Q345 low-carbon steel) | High-grade steel (Q345 low-carbon steel) |
| Core Structure | Heavy-gauge tubular construction, 4-arm adjustable mounting head, 360° rotating head (with gearbox), oil drip tray assembly, industrial-grade castors | Heavy-gauge tubular construction, 4-arm adjustable mounting head, 360° rotating head (with gearbox), oil drip tray assembly, industrial-grade castors |
| Head Function | 360° swiveling, gearbox-assisted angle adjustment (gear ratio head) | 360° swiveling, gearbox-assisted angle adjustment (gear ratio head) |
| Center Height | 945 mm | 945 mm |
| Product Size | 1300 mm × 940 mm × 1000 mm | 1300 mm × 940 mm × 1000 mm |
| Oil Tray Size | 1040 mm × 800 mm | 1040 mm × 800 mm |
| Weight | Net Weight (N.W.): 65 kgs, Gross Weight (G.W.): 72 kgs | Net Weight (N.W.): 71 kgs, Gross Weight (G.W.): 81 kgs |
| Package Size | 135 cm × 97 cm × 13 cm | 98 cm × 41.5 cm × 29 cm |
| 20'FT Container Load | 100 pcs | 100 pcs |
| Castor Configuration | Industrial-grade steel load-bearing castors (with brakes, diameter approx. 80mm) | Industrial-grade steel load-bearing castors (with brakes, diameter approx. 80mm) |
The YD04-007 800kg Engine Stand with Gearbox is a professional tool designed for high-precision maintenance of medium and heavy-duty power components. It addresses common issues with traditional stands through its robust construction and innovative features.
- 800kg Ultra-Load-Bearing: Heavy-gauge tubular frame made of Q345 low-carbon steel with 80×80mm main frame tube (6mm wall thickness). Welded joints are triple reinforced with tensile strength of 490MPa.
- Gearbox-Assisted Rotation: High gear ratio gearbox (30:1) enables precise angle adjustment with minimal effort (only 2.7kg thrust required).
- 360° Rotating Head: Allows full access to all sides of the engine for comprehensive maintenance.
- Integrated Oil Drip Tray: 1040×800mm tray prevents oil contamination of work area.
- Industrial-Grade Castors: Steel load-bearing castors with brakes for easy mobility and secure positioning.
Applications: Ideal for heavy SUV engines, light truck engines, 6-8 cylinder high-power engines, large commercial vehicle transmissions, and engineering machinery components.
