0.5T Hydraulic Transmission Jack Compact 1100-1900mm Foot Pedal + Adaptor For Gearbox / Motor Repair

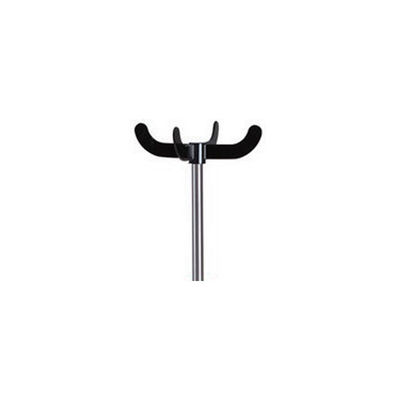

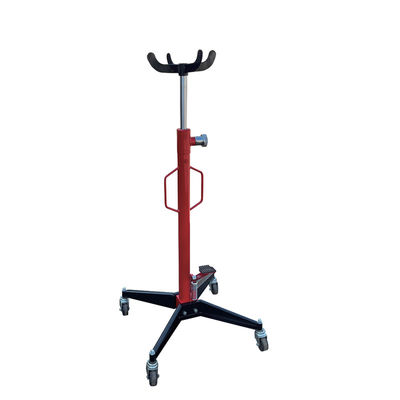

Large Image : 0.5T Hydraulic Transmission Jack Compact 1100-1900mm Foot Pedal + Adaptor For Gearbox / Motor Repair

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD05-001

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	0.5T Compact Transmission Jack	Lifting Height:	Minimum Height: 1100 Mm Maximum Height: 1900 Mm
Weight:	Gross Weight (G.W.): 39 Kg Net Weight (N.W.): 37 Kg	Package Size:	105 Cm × 25 Cm × 27 Cm (105X25X27CM)
Capacity:	0.5 TON (approx. 500 Kg)	Operation Method:	Foot Pedal: Step On Pedal To Lift, Pull Pressure Relief Valve To Lower
Highlight:	0.5T hydraulic transmission jack , transmission jack with foot pedal , gear repair transmission jack

0.5T Compact Transmission Jack: 1100-1900mm, Foot Pedal + Adaptor for Gearbox/Motor Repair

Product Specifications

Parameter Category	Main Jack	Optional Compact Adaptor
Product Name	0.5T Compact Transmission Jack	Compact Adaptor
Capacity	0.5 TON (approx. 500 kg)	Compatible with 0.5T jack, synchronized load-bearing (approx. 500 kg)
Core Functions	Gearbox/motor/coupling installation & disassembly, foot pedal lifting operation, large-diameter wheels for easy movement	Enhance adaptability, compatible with more sizes of gearboxes/power components
Lifting Height	Minimum Height: 1100 mm Maximum Height: 1900 mm	No independent lifting function, synchronized adjustment with the jack
Weight	Gross Weight (G.W.): 39 kg Net Weight (N.W.): 37 kg	Weight not marked, approx. 5-8 kg (referenced from similar products)
Package Size	105 cm * 25 cm * 27 cm (105X25X27CM)	45 cm * 24 cm * 15 cm (45X24X15CM)
Core Configuration	0.5T load-bearing hydraulic system, foot pedal lifting plate, large-diameter swivel wheels (2 with brakes), anti-slip support platform, hydraulic locking device	Multi-size adaptive buckles, anti-slip contact panel, quick-install interface
Applicable Objects	Family car/SUV gearboxes, small and medium-sized motors, couplings, light commercial vehicle gearboxes (≤500kg)	Gearboxes with different bolt hole positions, non-standard size motors/couplings
Operation Method	Foot pedal: Step on pedal to lift, pull pressure relief valve to lower	Manual installation: Align with jack interface and snap to fix

Product Details

The 0.5T Compact Transmission Jack (with optional adaptor) is specifically designed for convenient disassembly and assembly of small and medium-sized power components. It addresses common issues with traditional jacks such as laborious operation, cumbersome movement, and narrow adaptability.

0.5T Precise Load-Bearing: Single-cylinder hydraulic system with 32mm inner diameter and 8MPa working pressure provides stable support for components up to 500kg with ≤0.2mm platform deformation.
Foot Pedal Lifting: Raises platform from 1100mm to 1900mm in 10 seconds (80mm/sec) with foot operation, increasing efficiency by 60% compared to manual jacks.
Large-Diameter Wheels: 120mm swivel wheels with brake function (≤8N pushing resistance) enable easy movement even on oily surfaces.
Optional Adaptor: Enhances compatibility with various component sizes through multiple adaptive buckles, achieving 98% fitting degree without additional supports.

Application Scenarios

Family car gearbox disassembly in auto repair shops (e.g., Toyota Corolla, Honda Civic)
Motor/coupling maintenance in auto maintenance stores for small enterprise equipment
Light commercial vehicle gearbox maintenance (e.g., Foton Xiangling)
Home maintenance by individual auto repair enthusiasts (e.g., Haval H2)

Frequently Asked Questions

Q1: Can the 0.5T load capacity adapt to a 480kg light commercial vehicle gearbox?

A1: Yes. 480kg is within the 0.5T (500kg) rated load with 10% safety margin (actual safe load ≈550kg). Center the gearbox on the support platform and operate the pedal slowly for optimal stability.

Q2: How to match the optional adaptor with the jack? Is installation complicated?

A2: Installation is simple: ① Align adaptor with platform buckles; ② Press down until "click" sound; ③ Adjust buckles to component size. The process takes about 1 minute.

Q3: What to do if the jack gets stuck during lifting?

A3: Typically caused by hydraulic system impurities or low oil. Check oil level and add 32# anti-wear hydraulic oil if below scale line.
