0.5T Hydraulic Transmission Jack 340×240mm Platform 820-1768mm For Car / SUV Repair

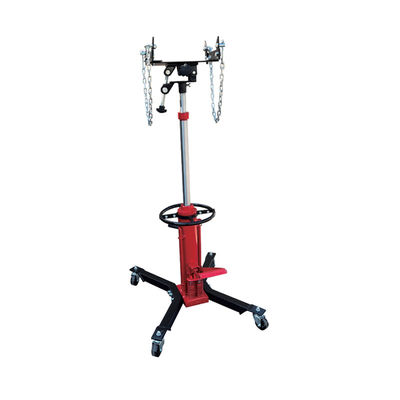

Large Image : 0.5T Hydraulic Transmission Jack 340×240mm Platform 820-1768mm For Car / SUV Repair

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD05-002B

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD05-002B 0.5T Compact Transmission Jack	Safe Working Capacity:	0.5T (500 Kg)
Lifting Height:	Minimum Height: 820 Mm Maximum Height: 1768 Mm	Lifting Platform:	Size: 340 Mm × 240 Mm
Weight:	Nett Weight: 52 Kg Gross Weight: 59 Kg	Carton Size:	490 Mm × 310 Mm × 730 Mm
Highlight:	0.5T hydraulic transmission jack , SUV Repair hydraulic transmission jack , transmission jack for SUV

YD05-002B 0.5T Compact Transmission Jack

Professional tool designed for convenient disassembly and assembly of transmissions in family cars and compact SUVs, featuring a large adjustable platform and load chains for safe, stable operation.

Product Specifications

Parameter Category	Specific Value
Product Name	YD05-002B 0.5T Compact Transmission Jack
Model No.	YD05-002-B
Safe Working Capacity	0.5T (500 kg)
Lifting Height	Minimum Height: 820 mm Maximum Height: 1768 mm
Lifting Platform	Size: 340 mm × 240 mm, adjustable (fits most transmission oil pan configurations)
Weight	Nett Weight: 52 kg Gross Weight: 59 kg
Carton Size	490 mm × 310 mm × 730 mm
Core Configuration	Durable steel frame (Q235 low-carbon steel), adjustable lifting platform, 2 load control chains, 4 swivel castors (2 with brakes), hydraulic lifting system, 3mm thick rubber anti-slip platform pad

Key Features

500kg Load-Bearing + Steel Frame: Constructed with Q235 low-carbon steel with 8mm main load-bearing rods, capable of stable support for family car and compact SUV transmissions with minimal deformation.
340×240mm Large Platform: 36% larger than conventional platforms, with ±40mm front-rear and ±30mm left-right adjustment for multi-size transmission adaptation.
820-1768mm Lifting Range: Accommodates both low-slung sedans and compact SUVs with precise height control (≤5mm error).
Safety Features: Includes 2 high-strength load control chains (≥300kg each), 3mm rubber anti-slip pad, and 4 swivel castors (2 with brakes) for secure operation.

Application Scenarios

Family car transmission replacement in auto repair shops
Compact SUV transmission maintenance in community auto maintenance stores
Home maintenance by individual auto repair enthusiasts
Teaching practice in auto repair training institutions

Frequently Asked Questions

Can the 340×240mm platform adapt to larger-size transmissions of compact SUVs?

Yes. The platform size fully covers most compact SUV transmissions (typically within 300×220mm). The adjustable platform can accommodate protrusions, with an adaptation rate over 98% when used with load chains.

How to troubleshoot hydraulic system lifting jams?

Jams are typically caused by insufficient hydraulic oil or impurities. Check oil level and add 32# anti-wear hydraulic oil if needed. For impurities, drain a small amount of oil from the hydraulic pump outlet.
