0.5 Ton Hydraulic Transmission Jack 4 Way Tilt 855-1760mm Foot Pump For Car / SUV Transmission Repair

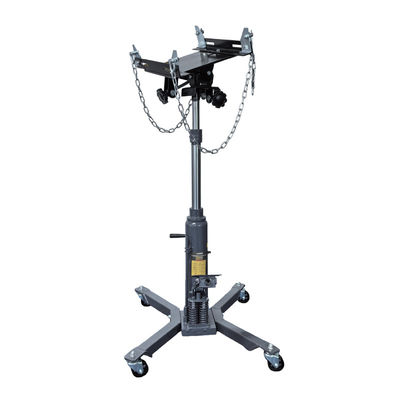

Large Image : 0.5 Ton Hydraulic Transmission Jack 4 Way Tilt 855-1760mm Foot Pump For Car / SUV Transmission Repair

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD05-004

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Parameter Category Specific Value Product Name:	YD05-004 0.5Ton Transmission Jack	Safe Working Capacity:	0.5Ton (500 Kg)
Lifting Structure:	2 Stage Hydraulic Ram, High-polished Chrome-plated Ram	Lifting Height:	Minimum Height: 855 Mm Maximum Height: 1760 Mm
Base Dimensions:	690 Mm × 780 Mm, Wide-base Design	Weight:	Nett Weight: 61 Kg Gross Weight: 68 Kg
Highlight:	0.5 Ton hydraulic transmission jack , 4 Way Tilt hydraulic transmission jack , Foot Pump transmission floor jack

YD05-004 0.5Ton Transmission Jack

Professional tool for precision and safety in disassembling and assembling transmissions of family cars and SUVs. Features 2-stage hydraulic ram and 4-way tilt platform for fast lifting, precise alignment, and safe speed control.

Product Specifications

Parameter Category	Specific Value
Product Name	YD05-004 0.5Ton Transmission Jack
Model No.	YD05-004
Safe Working Capacity	0.5Ton (500 kg)
Lifting Structure	2 Stage hydraulic ram, high-polished chrome-plated ram
Lifting Height	Minimum Height: 855 mm Maximum Height: 1760 mm
Lifting Platform	Size: 360 mm * 276 mm 4way Tilt: Forward Tilt 23°, Backward Tilt 16°, Lateral Tilt 7° Configuration: Safety design with corner brackets, 2 safety chains
Base Dimensions	690 mm * 780 mm, wide-base design
Castors & Wheels	Rugged steel wheels, full swivel ball bearing castors (with brakes)
Operation Method	Foot-operated fast-action pump (lift), manual release lever + pressure relief valve (lower, slow control)
Weight	Nett Weight: 61 kg Gross Weight: 68 kg
Carton Size	550 mm * 270 mm * 780 mm

Key Features

500kg Load-Bearing + 2-Stage Hydraulic Ram: Wide-base and load-bearing frame made of Q345 low-carbon steel with high-polished chrome-plated ram (20μm thickness) for rust resistance and smooth operation.
360*276mm 4way Tilt Platform: 44% larger than standard platforms, supporting forward tilt 23°, backward tilt 16°, and lateral tilt 7° for precise alignment with various transmission configurations.
Foot Lift + Manual Slow Lower: Foot pump for fast lifting (8mm per step) and manual release lever for controlled lowering (minimum 0.5mm/sec) with safety chains and corner brackets for secure operation.
Wide-Base + Steel Castors: 690*780mm base provides stability (overturning coefficient ≤0.2) with 4 full-swivel ball bearing castors (70mm diameter, 2 with brakes) for easy mobility.

Application Scenarios

Family Car Transmission Replacement in Auto Repair Shops

Ideal for replacing automatic transmissions in family cars (e.g., Toyota Camry, Honda Accord) with 500kg capacity and fast lifting to 1500mm height. Forward tilt 23° fits transmission layout, reducing replacement time from 3.5 to 2 hours.

Compact SUV Transmission Maintenance

Perfect for compact SUVs (e.g., Haval H6, Changan CS75 PLUS) with wide-base stability and lateral tilt 7° to avoid chassis protrusions. Controlled lowering prevents transmission collision during maintenance.

Home Maintenance by Auto Enthusiasts

61kg net weight allows two-person transport to garage. Minimum 855mm height fits garage ground-to-chassis distance, with 4way tilt for convenient oil draining and safe operation.

Teaching Practice in Auto Repair Training

Demonstrates transmission adaptation methods for different models with intuitive 4way tilt platform. Safety chains and corner brackets protect against student operation errors.
