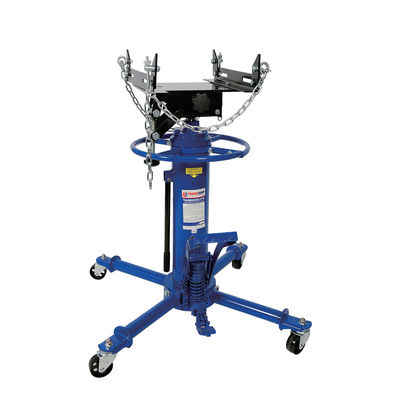

0.5T Jack Double Ram 87-180cm Lift For Car / SUV / Light Truck Transmission Repair
Product Details
| Model No.: | YD05-005 | Capacity: | 1100 LBS (500 KGS) |
|---|---|---|---|
| Lifting Structure: | Double Pump Pole, Two-stage Piston Design | Lifting Height: | Min: 34" (87 Cm) Max: 70.86" (180 Cm) |
| Piston Stroke: | 1st Stage: 18.3" (46.5 Cm) 2nd Stage: 18.3" (46.5 Cm) | Weight: | Gross: 80 KGS Net: 72 KGS |
| Highlight |
0.5T double ram jack,87-180cm lift transmission jack,SUV light truck repair jack |
||
Product Description
Professional 500kg capacity transmission jack designed for efficient and stable transmission disassembly/assembly of cars, SUVs, and light trucks.
| Parameter Category | Specific Value |
|---|---|
| Model No. | YD05-005 |
| Capacity | 1100 LBS (500 KGS) |
| Lifting Structure | Double pump pole, Two-stage piston design |
| Lifting Height | Min: 34" (87 cm) Max: 70.86" (180 cm) |
| Piston Stroke | 1st stage: 18.3" (46.5 cm) 2nd stage: 18.3" (46.5 cm) |
| Main Material | Heavy duty solid alloy steel, wide base design |
| Weight | Gross: 80 KGS Net: 72 KGS |
| Package Size | 21.65"*14"*33.5" (55*36*85CM) |
- 500kg Load-Bearing Capacity: Heavy-duty alloy steel construction with 520MPa tensile strength and only 0.2mm frame deformation under full load.
- Fast Lifting System: Dual pump pole design reduces lifting time from 87cm to 180cm to just 1.5 minutes (50% faster than standard jacks).
- Precise Height Adjustment: Two-stage piston system allows segmented height adjustment with ±1cm accuracy for perfect alignment.
- Wide Application Range: 87-180cm lifting range accommodates both low-slung sedans and lifted SUVs without additional padding.
- Enhanced Safety: Wide-base design (55*36cm) with ≤0.2 overturning coefficient and dual safety chains (350kg capacity each) prevent tipping and slipping.
The YD05-005 addresses common issues with traditional jacks through its innovative design:
- Durable sandblasted and painted surface (70μm coating) passes 72-hour salt spray test for long-term corrosion resistance
- Segmented height adjustment increases bolt hole alignment efficiency by 60%
- 50% greater scenario coverage compared to standard transmission jacks
- 100% improved safety factor with chain-secured load platform
- Auto repair shops servicing family SUVs (Toyota Highlander, Haval H9)
- Light truck maintenance stations (Foton Xiangling, JMC Shunda)
- Multi-vehicle service centers handling both cars and SUVs
- Performance transmission upgrades for off-road vehicles (Great Wall Poer, Ford Ranger)
- Lifting: Double pump pole foot operation for fast elevation
- Lowering: Manual pressure relief valve for controlled descent
Q: Can the 180cm maximum height handle lifted heavy SUVs?
A: Yes. Most lifted heavy SUVs (Mercedes-Benz GLS, BMW X7) have chassis heights of 160-175cm, leaving 5-20cm adjustment space.
