Quality 0.5T Low Jack: 190-680mm, Adjustable Saddle for Car/Light Truck Transmission Repair factory
<
Quality 0.5T Low Jack: 190-680mm, Adjustable Saddle for Car/Light Truck Transmission Repair factory
>

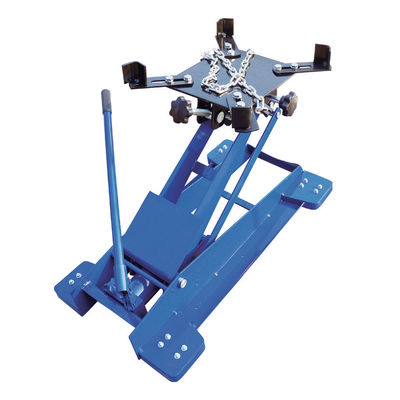

0.5T Low Jack: 190-680mm, Adjustable Saddle for Car/Light Truck Transmission Repair

Brand Name: YEEDA
Model Number: YD05-010
Place of Origin: Zhejiang,China
Certification: CE
Minimum Order Quantity: 50pcs
Supply Ability: 500PCS/MONTH
Delivery Time: 30-45DAYS
Payment Terms: T/T
Standard Packaging: Carton Box or Crate

Product Details


Model No.: YD05-010 Capacity: 0.5 TON (approx. 500 Kg)
Main Material: Formed And Welded Steel Plate Construction Lifting Height: Min Height: 190 Mm Max Height: 680 Mm
Core Accessories: Universal Saddle, Adjustable Brackets, Adjustable Safety Chain Weight: Gross Weight (G.W.): 47 Kg Net Weight (N.W.): 40 Kg
Highlight

0.5T low jack adjustable saddle

,

car transmission repair low jack

,

light truck transmission repair lift

Product Description

YD05-010 0.5T Low Transmission Jack

Professional tool designed for disassembling and assembling power components of low-chassis vehicles, featuring 190mm ultra-low minimum height and fully adjustable accessories for narrow space adaptation.

Product Specifications
Parameter Category Specific Value
Product Name YD05-010 0.5T Low Transmission Jack
Model No. YD05-010
Capacity 0.5 TON (approx. 500 kg)
Main Material Formed and welded steel plate construction
Lifting Height min Height: 190 mm
max Height: 680 mm
Core Accessories Universal saddle, adjustable brackets, adjustable safety chain
Weight Gross Weight (G.W.): 47 kg
Net Weight (N.W.): 40 kg
Package Size 85 cm * 45 cm * 23 cm (85X45X23CM)
Core Configuration Welded steel frame, universal adjustable saddle, multi-speed brackets, safety chain, manual hydraulic lifting system, anti-slip contact panel
Key Features
  • 190mm Ultra-Low Height + Compact Design: Easily reaches under low-chassis vehicles with only 200mm clearance between chassis and ground.
  • 500kg Load-Bearing + Welded Steel Structure: Stable support with maximum frame deformation of only 0.2mm under rated load.
  • Fully Adjustable Accessories: Universal saddle (±15° tilt), 3-speed height adjustable brackets (50-100mm), and adjustable safety chain (up to 1.2m).
  • Manual Hydraulic System: Labor-saving operation (≤10kg force) with slow lowering speed (2mm/sec) for precise control.
Application Scenarios
  • Low-chassis sedan transmission replacement in auto repair shops
  • Light truck differential maintenance in community auto maintenance stores
  • Home maintenance by individual auto repair enthusiasts
  • Power debugging of low-stance modified vehicles in auto modification shops
Frequently Asked Questions
Q: Can the 190mm minimum height adapt to supercar models with only 180mm ground clearance?
A: Yes, with proper adjustment. The universal saddle can be adjusted to reduce total height to about 180mm when needed, and the transmission area usually reserves additional maintenance space.
Q: How to adjust the universal saddle to fit a transmission with a curved oil pan?
A: Simply loosen the tilt adjustment knob and tilt the saddle 5-15° towards the curved depression until the contact area between the saddle anti-slip pad and oil pan reaches more than 80%.
YD05-010 0.5T Low Transmission Jack in use

Product Highlights

YD05-010 0.5T Low Transmission Jack Professional tool designed for disassembling and assembling power components of low-chassis vehicles, featuring 190mm ultra-low minimum height and fully adjustable accessories for narrow space adaptation. Product Specifications Parameter Category Specific Value ...
