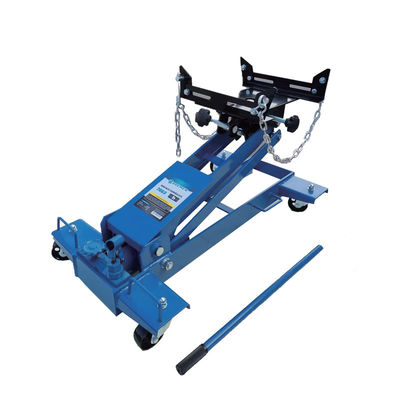

1T Low Jack: 200-760mm, Tilt Saddle + Safety Systems for SUV/Light Truck Repair
Product Details
| Parameter Category Specific Value Product Name: | YD05-011 1T Low Transmission Jack | Capacity: | 1 TON (approx. 1000 Kg) |
|---|---|---|---|
| Main Material: | Heavy Duty Solid Alloy Steel | Lifting Height: | Min Height: 200 Mm Max Height: 760 Mm |
| Saddle Function: | Precision Saddle Tilt, Controlled By Speed Knobs (tool-free) | Weight: | Gross Weight (G.W.): 62 Kg Net Weight (N.W.): 56 Kg |
| Highlight |
1T low jack for SUV repair,tilt saddle motorcycle lift bench,light truck repair safety systems |
||
Product Description
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD05-011 1T Low Transmission Jack |
| Model No. | YD05-011 |
| Capacity | 1 TON (approx. 1000 kg) |
| Main Material | Heavy duty solid alloy steel |
| Safety Systems | Safety overload system, safety by-pass system (prevents cylinder damage) |
| Lifting Height | min Height: 200 mm max Height: 760 mm |
| Saddle Function | Precision saddle tilt, controlled by speed knobs (tool-free) |
| Weight | Gross Weight (G.W.): 62 kg Net Weight (N.W.): 56 kg |
| Package Size | 94 cm * 53 cm * 26 cm (94*53*26CM) |
| Core Configuration | Solid alloy steel frame, dual safety protection systems, knob-adjustable saddle, manual hydraulic lifting system, low-profile narrow frame, anti-slip saddle pad, safety fixing chains |
The YD05-011 1T Low Transmission Jack is a professional tool designed for safe and precise disassembly and assembly of medium-heavy power components in low-chassis vehicles. It addresses common issues with traditional low-profile jacks such as insufficient load-bearing capacity, weak safety protection, and difficult saddle adjustment.
- 1000kg Heavy Load + Solid Alloy Steel: Forged from heavy-duty solid alloy steel with 550MPa tensile strength. The frame deformation is only 0.3mm under 1000kg load, with sandblasted rust removal and double-layer electrostatic painting for corrosion resistance.
- Dual Safety Systems: Features safety overload system (activates at 1100kg) and safety by-pass system to prevent cylinder damage. Uses 32# anti-wear hydraulic oil for smooth operation in temperatures as low as -10℃.
- 200-760mm Low Height + Narrow Frame: Minimum height of 200mm with 53cm wide frame allows access to tight spaces under low-chassis vehicles without removing guards.
- Precision Tilt-Adjustable Saddle: ±12° tilt adjustment controlled by knobs without tools, with 6mm anti-slip rubber pad (friction coefficient ≥0.95) and 2 high-strength safety chains (600kg capacity each).
- Medium-Heavy SUV Transmission Overhaul: Supports 800kg transmissions (e.g., Mercedes-Benz GLE, Land Rover Discovery) with 200-760mm height range and tilt adjustment for efficient maintenance.
- Light Truck Differential Replacement: Handles 650kg differentials (e.g., Isuzu 100P, JAC Shuailing E) with dual safety systems and narrow frame to avoid chassis obstacles.
- Special Vehicle Debugging: 200mm low height accesses modified off-road pickups and small RVs without removing custom guards, with precise height adjustment for non-standard angles.
- Bulk Fleet Maintenance: Efficiently services multiple light cargo vehicles (e.g., Foton Ollin CTS, JMC Kaiyun) with quick movement between vehicles and reduced preparation time.
