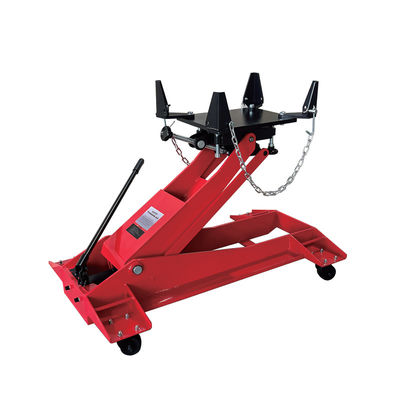

2Ton Low Jack: 230-945mm, Wide-Body for Heavy Truck/Loader/Commercial Vehicle Repair

Large Image : 2Ton Low Jack: 230-945mm, Wide-Body for Heavy Truck/Loader/Commercial Vehicle Repair

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD05-014

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD05-014 2Ton Durable Low Transmission Jack	Capacity:	4,400 LB (2,000 KGS)
Overall Dimension:	Overall Length: 43.3" (1,100 Mm) Overall Width: 26.77" (680 Mm)	Lifting Height:	Min Height: 9.06" (230 Mm) Max Height: 37.2" (945 Mm)
Weight:	Gross Weight (G.W.): 308 LB (140 KGS) Net Weight (N.W.): 264 LB (120 KGS)	Packing Size:	48"×28.34"×9.8" (1,220 Mm × 720 Mm × 250 Mm)
Highlight:	2Ton low jack for heavy trucks , Wide-body low jack 230-945mm , Commercial vehicle repair low jack

2Ton Low Jack: 230-945mm, Wide-Body for Heavy Truck/Loader/Commercial Vehicle Repair

Product Specifications

Parameter Category	Specific Value
Product Name	YD05-014 2Ton Durable Low Transmission Jack
Model	YD05-014
Capacity	4,400 LB (2,000 KGS)
Overall Dimension	Overall Length: 43.3" (1,100 mm) Overall Width: 26.77" (680 mm)
Lifting Height	Min Height: 9.06" (230 mm) Max Height: 37.2" (945 mm)
Weight	Gross Weight (G.W.): 308 LB (140 KGS) Net Weight (N.W.): 264 LB (120 KGS)
Packing Size	48"×28.34"×9.8" (1,220 mm × 720 mm × 250 mm)
Core Configuration	2000kg load-bearing reinforced steel frame, low-profile stable body, manual hydraulic lifting system, anti-slip wear-resistant lifting platform, safety fixing chains, impact-resistant base
Core Functions	2000kg ultra-heavy load support, 230-945mm low-height adaptation, wide-body anti-overturning, wear-resistant material anti-damage, manual hydraulic precise speed control
Applicable Objects	Heavy truck transmissions, large SUV engines, medium commercial vehicle power components, engineering machinery core transmission components (weight ≤2000kg)
Durability Features	The main steel frame is made of high-strength alloy material, with anti-rust coating on the surface and reinforced design for key parts, suitable for high-frequency heavy-load maintenance scenarios

Product Details

The YD05-014 2Ton Durable Low Transmission Jack is a professional tool designed specifically for high-frequency disassembly and assembly of heavy-duty power components. It addresses the limitations of traditional low-profile jacks with its 2000kg ultra-load-bearing capacity, reinforced durable structure, and low-profile wide-body design.

2000kg Ultra-Load-Bearing + Reinforced Steel Frame: Main body welded from Q460 high-strength alloy steel plates with 15mm thick load-bearing beams. Maximum frame deformation of only 0.3mm under 2000kg load. Surface treated with sandblasting rust removal and double-layer fluorocarbon paint spraying (80μm thick).
230-945mm Low Height + Wide-Body Design: Minimum height of 230mm reaches under heavy truck chassis. Wide-body design (43.3" length × 26.77" width) provides 0.75㎡ support area with overturning coefficient ≤0.2 under load.
Wear-Resistant Platform + Safety Chains: 5mm thick anti-slip steel plate platform with diamond patterns (friction coefficient ≥0.98). Includes 2 high-strength manganese steel safety chains (single chain load-bearing ≥1200kg) and 4 positioning buckles.

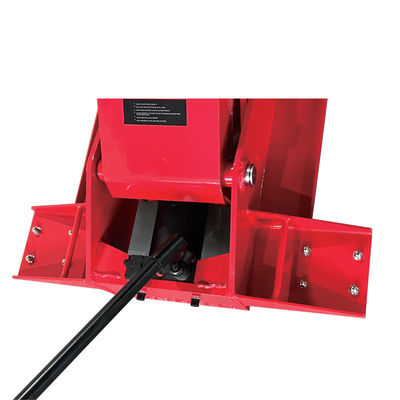

Manual Hydraulic + Precise Speed Control: 60mm hydraulic cylinder with 16MPa working pressure. Requires ≤20kg force per shake, lifting from 230mm to 945mm in 3 minutes. Features overload protection (activates at 2200kg) and precise lowering control (minimum 1mm/sec).

Application Scenarios

Heavy Truck Transmission Overhaul in Commercial Vehicle Repair Shops

Supports transmissions up to 1700kg for heavy trucks (FAW J6P, Dongfeng Tianlong KL). 230mm minimum height reaches under chassis, while 945mm maximum height provides 300mm clearance. Reduces overhaul time from 8 hours to 5 hours.

Loader Power Component Replacement in Engineering Machinery Workshops

Stably supports transmissions up to 1900kg for medium loaders (LiuGong CLG856, Lonking LG855N). Wide-body adapts to uneven ground, while anti-slip platform prevents component deviation during disassembly.

Bulk Maintenance in Large Logistics Fleet Repair Stations

2000kg capacity covers all heavy fleet models. Low-profile design enables quick movement between vehicles, while manual hydraulic system ensures efficient operation in high-volume environments.
