2T Low Jack: 22-82cm, Wide Base + Handle Op for SUV/Truck/Engineering Machinery Repair
2T Low Jack: 22-82cm, Wide Base + Handle Op for SUV/Truck/Engineering Machinery Repair
2T Low Jack: 22-82cm, Wide Base + Handle Op for SUV/Truck/Engineering Machinery Repair
Brand Name
YEEDA
PRODUCT MODEL
YD05-015
certificate
CE
country of origin
Zhejiang，China
MOQ
50pcs
payment method
T/T
Supply Capacity
500PCS/MONTH
Product Summary
YD05-015 2T Low Transmission Jack Professional tool designed for convenient and stable disassembly/assembly of heavy-duty power components in ultra-low chassis vehicles. Features 22-82cm lifting range, wide base for stability, and handle operation for ease of use. Key Specifications Parameter ...
Product Details
Highlight:
2T low jack for SUV repair
,wide base motorcycle lift bench
,engineering machinery repair jack with handle
Product Name:
YD05-015 2T Low Transmission Jack
Capacity:
4400 LBS (2000 KGS)
Main Design:
Compact Design With Extra Wide Base For Stability
Lifting Height:
Min: 8.67" (22 Cm) Max: 32.28" (82 Cm)
Weight:
Gross: 222 LBS (101 KGS) Net: 200 LBS (91 KGS)
Product Description

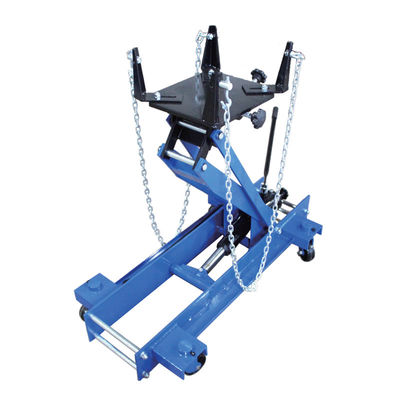

YD05-015 2T Low Transmission Jack
Professional tool designed for convenient and stable disassembly/assembly of heavy-duty power components in ultra-low chassis vehicles. Features 22-82cm lifting range, wide base for stability, and handle operation for ease of use.
Key Specifications
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD05-015 2T Low Transmission Jack |
| Model No. | YD05-015 |
| Capacity | 4400 LBS (2000 KGS) |
| Main Design | Compact design with extra wide base for stability |
| Lifting Height | Min: 8.67" (22 cm) Max: 32.28" (82 cm) |
| Operation Method | Handle operator (labor-saving) |
| Weight | Gross: 222 LBS (101 KGS) Net: 200 LBS (91 KGS) |
Core Features
- 2000kg Heavy Load Capacity: Alloy steel frame with 12mm main beam thickness, tested for durability
- Ultra-Low 22cm Profile: Accesses tight spaces under low chassis vehicles
- Extra Wide Base: 113×54cm footprint for superior stability
- Handle Operation: Labor-saving design requiring only 16-20kg pressure
- Modular Assembly: No professional tools required, assembles in 25 minutes
Technical Advantages
Durable Construction
Q355 low-carbon alloy steel frame with 510MPa tensile strength. Epoxy resin coating resists oil, scratches, and corrosion with 12+ year lifespan.
Space Optimization
54cm width reduces space occupancy by 30% compared to standard jacks, fitting 90% of ultra-low chassis maintenance scenarios.
Stability Features
0.61㎡ base area with 4 anti-slip rubber pads (friction coefficient ≥0.98) and overturning coefficient ≤0.18 for maximum safety.
Application Scenarios
Sports Car Transmission Maintenance
22cm height accesses Porsche 911 Turbo, Lamborghini Huracan chassis. Reduces maintenance time from 5 to 3 hours.
Light Truck Differential Replacement
2000kg capacity handles Foton Omarco S5, JMC Kairui N800 differentials (≈1500kg).
Engineering Machinery Maintenance
Operates without external power on small road rollers and micro excavators at construction sites.
Frequently Asked Questions
Can the 22cm minimum height adapt to special engineering machinery with only 23cm ground clearance?
Yes. The power component area of special engineering machinery usually reserves adequate space for the jack's operation.
