6000LB Portable 13.5-135cm Safety Lock Mid Rise Car Lift For Car / Light Truck Service

Large Image : 6000LB Portable 13.5-135cm Safety Lock Mid Rise Car Lift For Car / Light Truck Service

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD07-01

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD07-001 6,000-LB Portable Mid-Rise Car Lift	Capacity:	6,000 LBS (2,727 KGS), Suitable For Light-duty Trucks And Cars
Main Table Size:	39.37"×70.86" (100 CM × 180 CM)	Lifting Height:	Min Height: 5.31" (13.5 CM) Max Height: 53.1" (135 CM)
Voltage:	Single Phase: 110V/220V	Weight:	Gross Weight (G.W.): 924 LBS (420 KGS) Net Weight (N.W.): 803 LBS (365 KGS)
Highlight:	6000LB Mid Rise Car Lift , 135cm Mid Rise Car Lift , 13.5cm Mid Rise Car Lift

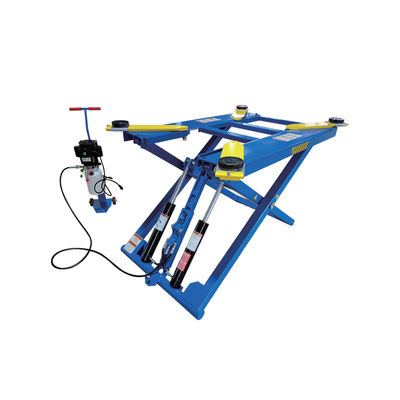

YD07-001 6,000-LB Portable Mid-Rise Car Lift

Product Specifications

Parameter Category	Specific Value
Product Name	YD07-001 6,000-LB Portable Mid-Rise Car Lift
Model No.	YD07-001
Capacity	6,000 LBS (2,727 KGS), suitable for light-duty trucks and cars
Main Table Size	39.37"70.86" (100 CM 180 CM)
Lifting Height	Min Height: 5.31" (13.5 CM) Max Height: 53.1" (135 CM)
Voltage	Single phase: 110V/220V
Weight	Gross Weight (G.W.): 924 LBS (420 KGS) Net Weight (N.W.): 803 LBS (365 KGS)
Package Size	104"43.3"13.77" (265 CM * 110 CM * 35 CM)

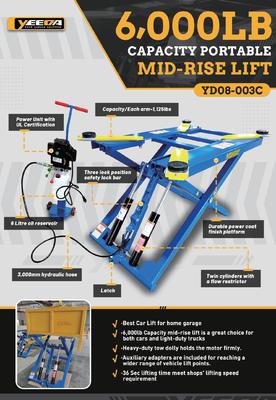

Core Configuration	Portable motor cart (with tow handle), multi-position safety lock bar, free truck adapters, dual-cylinder hydraulic system, UL-certified power unit, 6L oil reservoir, 3000mm hydraulic hose, flow restrictor
Core Functions	2727kg heavy-load support, 13.5-135cm mid-rise adaptation, portable design for easy scheduling, multi-position safety locking, dual-voltage compatibility, 36-second fast lifting
Applicable Objects	Family cars (e.g., Toyota Camry, Volkswagen Magotan), light-duty trucks (e.g., Foton Xiangling, JMC Shunda), small SUVs (e.g., Honda CR-V, Toyota RAV4)
Operation Method	Motor-driven hydraulic lifting, tow handle for movement, manual locking/unlocking of safety lock bar, auxiliary adapters for adjusting support points

Product Details

The YD07-001 6,000-LB Portable Mid-Rise Car Lift is a professional equipment designed specifically for flexibility and safety in light-duty vehicle maintenance. It addresses the pain points of traditional lifts with its innovative features:

2727kg Heavy Load + Sturdy Structure: The main worktable is integrally welded from Q345 low-carbon alloy steel plates with 8mm thickness. Key support parts are reinforced by forging with 490MPa tensile strength. Maximum deformation of only 0.3mm under full load.
13.5-135cm Mid-Rise + Multi-Adaptation: Minimum height of 13.5cm fits under low-chassis sports cars; maximum height of 135cm meets most maintenance needs. Includes free truck adapters for various wheelbases.
Portable Design + Convenient Scheduling: Equipped with 4 high-load-bearing swivel wheels (500kg each) and tow handle. 1.5m turning radius allows movement in compact spaces. No fixed installation required.
Multi-Position Safety Lock + Double Protection: Three locking positions (50cm, 90cm, 135cm) with 120% load-bearing redundancy. Dual-cylinder synchronous lifting ensures ≤2mm level error. UL-certified power unit with flow restrictor.

Application Scenarios

Auto Repair Shops: Efficient bulk maintenance of family cars and light-duty trucks with quick workstation scheduling.
Community Auto Maintenance Stores: Adapts to various vehicle brands and models in compact spaces, reducing equipment costs.
Home Garages: Safe single-person operation for high-end vehicle maintenance without ground damage from fixed installation.
