10000LB Car Mid Rise Lift 10-54.5cm 2HP Motor/230V For Heavy Car / Light Truck Service

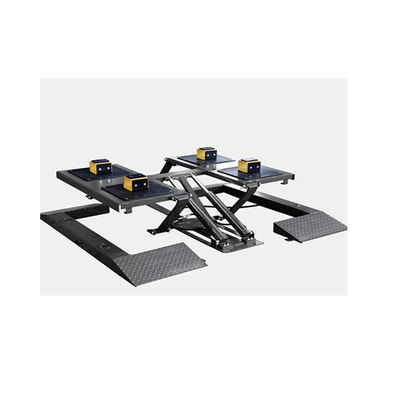

Large Image : 10000LB Car Mid Rise Lift 10-54.5cm 2HP Motor/230V For Heavy Car / Light Truck Service

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD07-02

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD07-002 10,000-LB Car Lift	Capacity:	10,000 LBS (4,545 KGS)
Lifting Height:	Min Height: 5.31" (10 CM) Max Height: 21.45" (54.5 CM)	Electric Motor:	2 HP, Powerful For Heavy-load Lifting
Voltage:	Single Phase: 230 V	Package Size:	Package A: 92.5"×85.5"×5.9" (235×218×15cm) Package B: 33.6"×14.56"×14.56" (85.5×37×37cm)
Highlight:	10000LB mid rise lift , 10-54.5cm mid rise lift , 10000LB mid rise scissor lift

YD07-002 10,000-LB Car Lift

Professional heavy-duty car lift with 10,000 lb (4,545 kg) capacity, designed for low-height maintenance of heavy vehicles and light trucks.

Product Specifications

Parameter Category	Specific Value
Product Name	YD07-002 10,000-LB Car Lift
Model No.	YD07-002
Capacity	10,000 LBS (4,545 KGS)
Lifting Height	Min Height: 5.31" (10 CM) Max Height: 21.45" (54.5 CM)
Electric Motor	2 HP, powerful for heavy-load lifting
Voltage	Single phase: 230 V
Weight	Main Unit Gross Weight: 1034 LBS (470 KGS) Main Unit Net Weight: 990 LBS (450 KGS) Accessory Package G.W.: 88 LBS (40 KGS) Accessory Package N.W.: 83.6 LBS (38 KGS)
Package Size	Package A: 92.5"85.5"5.9" (23521815cm) Package B: 33.6"14.56"14.56" (85.53737cm)

Core Features

4545kg Ultra-Heavy Load Capacity: Sturdy Q355 low-carbon alloy steel frame with 16mm main beam thickness and 510MPa tensile strength.
10-54.5cm Low-Rise Design: Accommodates ultra-low chassis vehicles without removing chassis guards.
2HP High-Power Motor: All-copper coil motor with 1.5kW output power and efficient hydraulic system (80mm cylinder).
Triple Safety Protection: Mechanical safety lock (3 positions), anti-slip workbench, and overload protection system.
Durable Construction: Sandblasted and double-layer fluorocarbon painted surface (90μm thick) with 18+ year lifespan.

Technical Advantages

Frame deformation limited to 0.4mm under 10,000-LB load
Lifting speed of 8mm/sec (10cm to 54.5cm in 5.5 minutes)
High-precision hydraulic filter (≥5μm filtration)
Diamond anti-slip patterns with 3mm rubber pads (friction coefficient ≥0.98)
150% load-bearing redundancy in locked position

Compatible Vehicles

Heavy SUVs (Toyota Land Cruiser, Jeep Wrangler)
Light-duty trucks (Foton Ollin, JMC Shunda)
Medium/large family cars (Mercedes-Benz S-Class, BMW 7-Series)
Commercial light trucks (≤4545kg)

Operation

Motor-driven hydraulic lifting with button controls. Manual safety lock activation and auxiliary support feet for balance adjustment.
