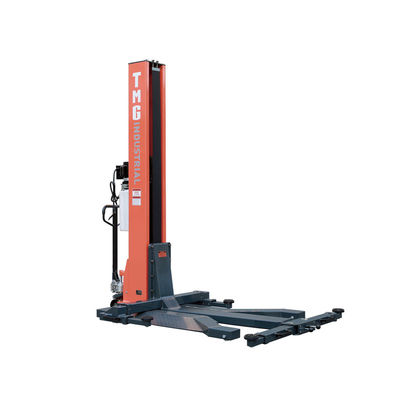

6000-LB Portable Auto Lift: 72"H, 3HP/CETL, for Car/Truck Repair in US/Canada
Product Details
| Parameter Category Specific Value Product Name: | YD07-003 6000 LB Portable Single Post Auto Lift | Brand Association: | Brand Association |
|---|---|---|---|
| Lift Capacity: | 6000 LB (approx. 2722 KG) | Lifting Height: | Lifting Height (no Adapters): 72" (approx. 182.9 Cm) Height On The Ground (no Pads): 5" (approx. 12.7 Cm) |
| Assembled Overall Dimension: | 112"L × 94"W × 103"H (approx. 284.5×238.8×261.6 Cm) | Hydraulic Motor Pump Parameters: | Power: 110V/220V, 3HP No-load Speed: 3420 RPM Working Pressure: 2650 PSI Tank Capacity: 11 L |
| Highlight |
6000-LB portable car lift,3HP truck repair lift,72-inch motorcycle lift bench |
||
Product Description
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD07-003 6000 LB Portable Single Post Auto Lift |
| Model No. | YD07-003 |
| Brand Association | TMGINDUSTRIAL |
| Lift Capacity | 6000 LB (approx. 2722 KG) |
| Lifting Height | Lifting height (no adapters): 72" (approx. 182.9 cm) Height on the ground (no pads): 5" (approx. 12.7 cm) |
| Space Parameters | Height Clearance: 67" (approx. 170.2 cm) Distance (front to rear lift pads): 28.75"-83.75" (approx. 73-212.7 cm) Distance (rear lift pads): ≥53" (approx. 134.6 cm) Distance (two front lift pads): 55"-91.5" (approx. 139.7-232.4 cm) |
| Assembled Overall Dimension | 112"L * 94"W * 103"H (approx. 284.5*238.8*261.6 cm) |
| Hydraulic Motor Pump Parameters | Power: 110V/220V, 3HP No-load speed: 3420 RPM Working pressure: 2650 PSI Tank capacity: 11 L |
| Certification Standard | CETL Certified (for Canada and USA markets) |
| Package Information | Packaging: Wooden crate for shipping Shipping dimension: 110"*42"*43" (approx. 279.4*106.7*109.2 cm) Shipping weight: 2400 LB (approx. 1088.6 kg) |
| Core Configuration | Pallet-jack style low-profile body, 10.5"*12.5" heavy-duty structural column, chain-drive carriage, retractable reach arms (with height screw-up pads), mechanical single-point self-lock, 8 height adapters, CETL-certified hydraulic pump |
| Applicable Objects | Family cars (e.g., Toyota Camry, Volkswagen Magotan), light-duty trucks (e.g., Foton Xiangling, JMC Shunda), small SUVs (e.g., Honda CR-V, Toyota RAV4) (weight ≤2722 KG) |
-
6000 LB Heavy Load + Heavy-Duty Structural ColumnFeatures a 10.5"*12.5" heavy-duty structural column made of Q355 low-carbon alloy steel with 12 mm wall thickness. Key connection parts are welded after forging and reinforcement, with 510 MPa tensile strength. Maximum deformation of only 0.3 mm under rated load. Surface treated with sandblasting rust removal and double-layer electrostatic painting (80 μm coating thickness) for corrosion resistance and 15+ year service life.
-
72" High Lifting Height + Multi-Dimensional Adjustment72" lifting height without adapters (approx. 182.9 cm) for in-depth chassis maintenance. Includes 8 height adapters (5-15 cm thickness options) for additional height adjustment. Ultra-low 5" ground height (approx. 12.7 cm) accommodates low-stance vehicles. Retractable reach arms support 55"-91.5" spacing adjustment, adapting to 95% of common vehicle wheelbases.
-
Pallet-Jack Style Mobility + Chain DriveInnovative pallet-jack design with 4 high-load-bearing swivel wheels (600 KG capacity each) for easy movement. 1.8 meter turning radius works in compact 15 m² spaces. Chain-drive technology with 3HP hydraulic pump provides 10 mm/sec lifting speed (12 minutes for full height), 40% more efficient than screw-driven lifts. Maintains 2650 PSI working pressure even at -10℃.
-
CETL Certification + Dual Safety ProtectionCETL certified for Canada and USA markets. Features mechanical single-point self-lock with 8 locking gears (10"-72" heights) and anti-slip adjustment pads. Load-bearing redundancy reaches 120% of rated capacity for enhanced safety.
