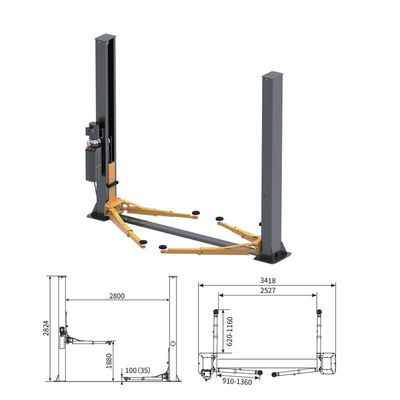

YD07-006 4000kg Two-Post Lift: 1880mm Height, AC/DC, Self-Lock for Car/SUV/Truck Repair

Large Image : YD07-006 4000kg Two-Post Lift: 1880mm Height, AC/DC, Self-Lock for Car/SUV/Truck Repair

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD07-06

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD07-006 Two-Post Car Lift	Maximum Lifting Weight:	4000 Kg (8800 Lb)
Lifting Height Range:	Maximum Lifting Height: 1880 Mm (74.02") Minimum Lifting Height: 100 Mm (3.93")	Overall Dimensions:	Total Height: 2824 Mm (111.18") Total Width: 3418 Mm (134.56") Column Inner Width: 2800 Mm (110.23") Drive-through Width: 2527 Mm (99.49")
Support Arm Parameters:	Three-stage Arm: 620-1160 Mm (24.4-45.67") Two-stage Arm: 910-1360 Mm (35.82-53.54")	Packaging & Loading:	Quantity Per 40' Container: 36 Pcs
Highlight:	4000kg two-post car lift , AC/DC two-post truck lift , self-lock SUV lift 1880mm

YD07-006 4000kg Two-Post Lift: 1880mm Height, AC/DC, Self-Lock for Car/SUV/Truck Repair

Product Specifications

Parameter Category	Specific Value
Product Name	YD07-006 Two-Post Car Lift
Model	YD07-006
Maximum Lifting Weight	4000 kg (8800 lb)
Lifting Height Range	Maximum Lifting Height: 1880 mm (74.02") Minimum Lifting Height: 100 mm (3.93")

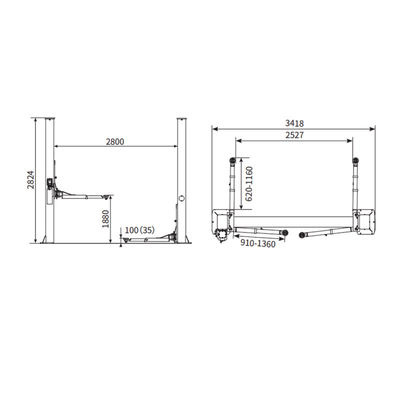

Overall Dimensions	Total Height: 2824 mm (111.18") Total Width: 3418 mm (134.56") Column Inner Width: 2800 mm (110.23") Drive-through Width: 2527 mm (99.49")
Support Arm Parameters	Three-stage Arm: 620-1160 mm (24.4-45.67") Two-stage Arm: 910-1360 mm (35.82-53.54")
Power Configuration	Motor Power: 2.2 kW Power Supply: 220V/380V, 50 Hz Driving Method: Dual hydraulic cylinders
Packaging & Loading	Quantity per 40' Container: 36 pcs
Core Configuration	Height-adjustable foot pads, mechanical self-locking system, low-height columns, floor-adaptable base plates, dual hydraulic cylinders, 2.2 kW high-power motor, three-stage/two-stage telescopic support arms
Applicable Objects	Family cars (e.g., Toyota Camry, Volkswagen Magotan), medium-sized SUVs (e.g., Honda CR-V, Toyota Highlander), light-duty trucks (e.g., Foton Xiangling, JMC Shunda) (weight ≤ 4000 kg)

Product Details

The YD07-006 Two-Post Car Lift is a heavy-duty equipment designed specifically for efficiency and safety in professional auto repair scenarios. It addresses common challenges with traditional two-post lifts including difficulty adapting to different chassis, limitations in low-ceiling spaces, and high floor requirements.

4000 kg Heavy Load + Dual Cylinder Drive: Constructed with Q355 low-carbon alloy steel plates (12mm wall thickness) and dual hydraulic cylinders (80mm diameter) for stable lifting of vehicles up to 4000 kg with a lifting speed of 8 mm/s.
100-1880 mm Lifting Range: Accommodates low-chassis vehicles (minimum 100mm height) and provides sufficient working clearance (maximum 1880mm) for comprehensive repairs.
Adjustable Support Arms: Three-stage (620-1160mm) and two-stage (910-1360mm) telescopic arms adapt to various wheelbases (2500-3200mm) with over 98% compatibility for common vehicles.
Low-Column Design: Total height of 2824mm makes it suitable for low-ceiling workshops (under 3 meters) without requiring renovation.
Self-Locking System: Mechanical locking provides 150% load redundancy with triple protection including overload protection, anti-slip foot pads, and emergency lowering valve.

Application Scenarios

Auto 4S Shops: Ideal for transmission maintenance on medium-sized SUVs (2200kg) with 1880mm lifting height for comfortable technician access.
Large Auto Repair Shops: Efficient for light-duty truck (3200kg) chassis maintenance with dual-cylinder synchronous lifting and floor-adaptable base plates.
Old Auto Repair Shops: Low-column design (2824mm) fits 2.8m ceiling heights, with 100mm minimum height for easy access to low-chassis vehicles.
Commercial Vehicle Repair Stations: Handles multiple vehicle types (cars and trucks) with adjustable arms and dual voltage (220V/380V) compatibility.

Frequently Asked Questions

Q1: With a total height of 2824 mm, can it adapt to an underground garage repair area with a floor height of 2.9 meters?

A1: Yes. The total height leaves 176mm clearance (2.9m - 2.824m). If needed, non-core decorative parts (20mm thick) can be removed to further reduce height to 2804mm.

Q2: The support arm cannot be locked after adjustment. How to troubleshoot?

A2: Clean the self-locking mechanism, check for misalignment, and test manually. If unresolved, contact manufacturer for spring replacement. Regular maintenance every 3 months is recommended.

Q3: For the 4000 kg equipment weight, what preparations are needed for installation?

A3: Ensure floor load capacity ≥800 kg/m², have 220V/380V power supply, and prepare tools (forklift, level, torque wrench). Installation typically takes 3 hours with 4-5 people.

Q4: Do I need to replace the hydraulic oil after long-term use? What is the replacement cycle and recommended type?

A4: Replace every 12 months with 32# anti-wear hydraulic oil (ISO VG32). Replacement volume is about 15 liters. Follow proper draining and refilling procedures to maintain performance.
