4200kg Two-Post Lift: 1880mm Height, Single-Lock+Emergency Stop for Car/SUV/Truck Repair
Product Specifications
| Parameter Category |
Specific Value |
| Product Name |
YD07-007 Two-Post Car Lift |
| Model |
YD07-007 |
| Maximum Lifting Weight |
4200 kg (9240 lb) |
| Lifting Height Range |
Maximum Lifting Height: 1880 mm (74.02 ")
Minimum Lifting Height: 100 mm (3.93 ") |

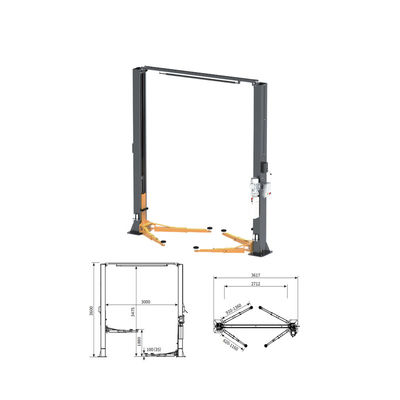

| Overall Dimensions |
Total Height: 3600 mm (141.73 ")
Total Width: 3617 mm (142.4 ")
Column Inner Width: 3000 mm (118.11 ")
Drive-through Width: 2712 mm (106.77 ") |
| Limit & Protection |
Height of the Limit Switch: 3475 mm (136.81 ")
Overhead Emergency Stop Switch: Equipped (protects the top of the vehicle from collision) |
| Support Arm Parameters |
Three-stage Arm: 620-1160 mm (24.4-45.67 ")
Two-stage Arm: 910-1360 mm (35.82-53.54 ") |
| Power Configuration |
Motor Power: 2.2 kW
Power Supply: 220V/380V, 50 Hz
Driving Method: Dual hydraulic cylinders |
| Packaging & Loading |
Quantity per 40' Container (Qty/40'Container): 24 pcs |
| Core Configuration |
Height-adjustable foot pads, in-column hose design (neat appearance), single-point mechanical lock release, overhead emergency stop switch, dual hydraulic cylinders, 2.2 kW motor, three-stage/two-stage telescopic support arms |
| Applicable Objects |
Medium-sized SUVs (e.g., Toyota Highlander, Volkswagen Teramont), light-duty trucks (e.g., JMC Kaiyun, Foton Ollin), medium-to-large sedans (e.g., Mercedes-Benz E-Class, BMW 5-Series) (weight ≤ 4200 kg) |
Product Features
- 4200 kg High Load Capacity + Dual-Cylinder Synchronous Drive: Made of Q355 low-carbon alloy steel plates with 14 mm wall thickness, tested by X-ray flaw detection. Supports stable lifting of light-duty trucks, medium-sized SUVs, and medium-to-large sedans with lifting speed of 9 mm/s.
- Single-Point Mechanical Lock Release: Allows simultaneous unlocking of both columns from one side, reducing operation steps by 50% and requiring only 80 N force for unlocking.
- In-Column Hoses + Overhead Emergency Stop: Internal hose structure protects components and enhances aesthetics. Emergency stop switch prevents vehicle top collisions.
- Adjustable Foot Pads + Wide Support Arms: Adapts to floor flatness errors ≤ 8 mm and covers vehicles with wheelbases of 2600-3500 mm.
Application Scenarios
In-Depth Maintenance of Medium-to-Large Sedans in Auto 4S Shops
Ideal for transmission maintenance on Mercedes-Benz E-Class and BMW 5-Series, with 1880 mm lifting height allowing standing operation and reducing maintenance time by 25%.
Bulk Maintenance of Light-Duty Trucks in Large Auto Repair Shops
Efficiently handles chassis maintenance on JMC Kaiyun and Foton Ollin, with 2712 mm drive-through width eliminating repeated position adjustment.
Multi-Vehicle Services in Commercial Vehicle Repair Stations
Adapts to both medium-sized SUVs and light-duty trucks with adjustable arms, reducing equipment investment costs by 55%.
Beauty and Maintenance of Medium-Heavy SUVs in High-End Auto Repair Shops
Perfect for chassis armor spraying on Volkswagen Teramont and Lincoln Aviator, improving spraying efficiency by 30%.
Frequently Asked Questions
Q1: With a total height of 3600 mm, can it adapt to a repair workshop with a floor height of 3.8 meters?
A1: Yes. The 200 mm top gap meets space requirements. Can be installed between overhead pipelines without structural modifications.
Q2: The single-point mechanical lock release fails. How to troubleshoot?
A2: Check for bent unlock cable (≥150 mm stroke) or clogged locking mechanism. Replace cable if needed and clean with compressed air (0.6 MPa). Apply lithium-based grease and test manually.
Q3: For the 4200 kg equipment weight, what floor conditions are required for installation?
A3: Requires load capacity ≥1000 kg/㎡ (200 mm thick C30 cement floor recommended) and flatness error ≤8 mm. Adjustable foot pads compensate for floor irregularities.
Q4: The hydraulic cylinder leaks oil after long-term use. How to handle it?
A4: Replace aging seals using included seal kit. Reassemble with hydraulic oil lubrication and test with 3 empty lifts. Recommended to check seals every 18 months.
