4500kg Two-Post Lift: 1855mm Height, Rubber Guards+Single-Lock for Heavy SUV/Truck Repair

Large Image : 4500kg Two-Post Lift: 1855mm Height, Rubber Guards+Single-Lock for Heavy SUV/Truck Repair

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD07-08

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD07-008 Two-Post Car Lift	Maximum Lifting Weight:	4500 Kg (9900 Lb)
Lifting Height Range:	Maximum: 1855 Mm (73.03") Minimum: 100 Mm (3.93")	Overall Dimensions:	Height: 3900 Mm (153.54") Width: 3617 Mm (142.4")
Limit & Protection:	Limit Switch Height: 3775 Mm (148.62")	Support Arm Parameters:	Three-stage Arm: 620-1160 Mm (24.4-45.67") Two-stage Arm: 910-1360 Mm (35.82-53.54")
Highlight:	4500kg two-post car lift , heavy-duty truck lift with rubber guards , SUV repair lift with single-lock

YD07-008 Two-Post Car Lift - 4500kg Capacity with Rubber Guards & Single-Lock Mechanism

Product Specifications

Parameter Category	Specific Value
Product Name	YD07-008 Two-Post Car Lift
Model	YD07-008
Maximum Lifting Weight	4500 kg (9900 lb)
Lifting Height Range	Maximum: 1855 mm (73.03") Minimum: 100 mm (3.93")

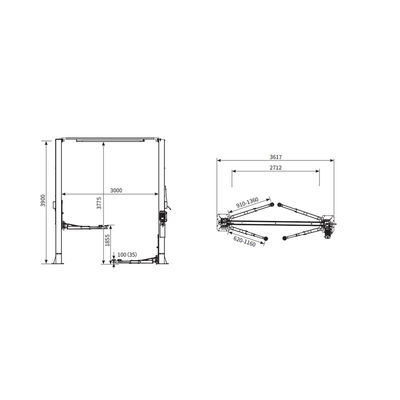

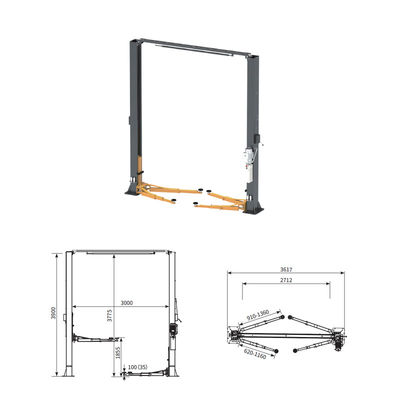

Overall Dimensions	Height: 3900 mm (153.54") Width: 3617 mm (142.4") Column Inner Width: 3000 mm (118.11") Drive-through Width: 2712 mm (106.77")
Limit & Protection	Limit Switch Height: 3775 mm (148.62") Emergency Stop Switch: Equipped Rubber Door Guards: Equipped
Support Arm Parameters	Three-stage Arm: 620-1160 mm (24.4-45.67") Two-stage Arm: 910-1360 mm (35.82-53.54")
Power Configuration	Motor Power: 2.2 kW Power Supply: 220V/380V, 50 Hz Driving Method: Dual hydraulic cylinders
Surface Treatment	Powder coating, wear-resistant and corrosion-resistant
Packaging & Loading	24 pcs per 40' Container
Applicable Vehicles	Heavy-duty SUVs, light-duty trucks, medium-to-large sedans (weight ≤ 4500 kg)

Product Features

4500 kg Ultra-High Load Capacity: Constructed from Q355 low-carbon alloy steel with 16mm thick columns and reinforced base plates for stable support of heavy vehicles.
Comprehensive Vehicle Protection: 300mm rubber door guards (15mm thick EPDM rubber) and overhead emergency stop switch prevent damage to vehicles.
Efficient Single-Point Operation: Mechanical lock release allows simultaneous unlocking from one side, improving efficiency by 50% with ergonomic handle design.
Durable Powder Coating: 120μm epoxy resin coating withstands corrosive substances and maintains appearance with 80% better scratch resistance than standard paint.
Wide Vehicle Compatibility: Adjustable arms (620-1360mm range) and 3000mm column width accommodate 98% of medium-heavy vehicles.

Application Scenarios

Chassis Maintenance in Large Auto Repair Shops

Ideal for servicing light-duty trucks up to 4000kg with 1855mm lifting height for comfortable technician access and 50% faster operation with single-point unlocking.

High-End Vehicle Service Centers

Perfect for precision maintenance of luxury sedans with powder-coated surfaces that resist oil stains and emergency stop protection for delicate components.

Commercial Vehicle Emergency Repair

Enables rapid 25-minute response for heavy SUV rescues with 100mm minimum height access and 2712mm drive-through width for direct vehicle positioning.

Logistics Fleet Maintenance

Optimized for bulk servicing with 24 units per container shipment and reinforced base plates that prevent floor damage in high-volume workshops.

Frequently Asked Questions

Q: Can this lift be installed in a workshop with 4.2m ceiling height?

A: Yes, the 3900mm total height leaves adequate 300mm clearance and can be positioned to avoid overhead beams without structural modifications.

Q: How to replace the rubber door guards?

A: Simply remove the fixing buckles with a screwdriver (5-minute process per guard) - replacement guards are included with the equipment.

Q: What floor requirements are needed for installation?

A: Requires ≥1200 kg/㎡ load capacity (recommended 250mm C30 concrete) and ≤5mm flatness error, adjustable via column base bolts.

Q: What if lifting speed decreases over time?

A: Typically caused by hydraulic system issues - check/replace oil (18L of 32# anti-wear), clean filter, and tighten connections to restore performance.
