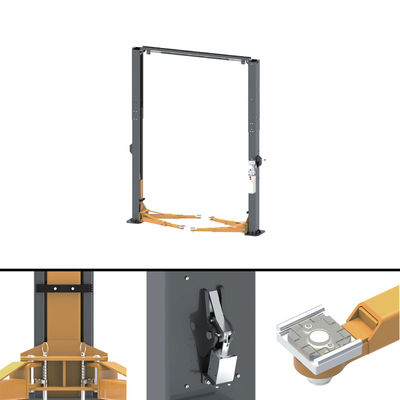

5500kg Two-Post Lift: 1980mm Height, 2-Stage Column+Direct-Cyl for Heavy Truck/Bus Repair

Large Image : 5500kg Two-Post Lift: 1980mm Height, 2-Stage Column+Direct-Cyl for Heavy Truck/Bus Repair

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD07-09

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD07-009 Two-Post Car Lift	Maximum Lifting Weight:	5500 Kg (12100 Lb)
Lifting Height Range:	Maximum Lifting Height: 1980 Mm (77.95 ") Minimum Lifting Height: 120 Mm (4.72 ")	Overall Dimensions:	Total Height: 4445 Mm (175 ") Total Width: 3549 Mm (139.72 ")
Limit & Structure:	Height Of The Limit Switch: 4320 Mm (170.08 ")	Support Arm Parameters:	Arm Reach: 910-1386 Mm (35.82-54.56 ")
Highlight:	5500kg two-post lift for heavy trucks , two-stage column lift with direct cylinder , 1980mm height two-post bus lift

5500kg Two-Post Lift: 1980mm Height, 2-Stage Column+Direct-Cyl for Heavy Truck/Bus Repair

Product Specifications

Parameter Category	Specific Value
Product Name	YD07-009 Two-Post Car Lift
Model	YD07-009
Maximum Lifting Weight	5500 kg (12100 lb)
Lifting Height Range	Maximum Lifting Height: 1980 mm (77.95 ") Minimum Lifting Height: 120 mm (4.72 ")
Overall Dimensions	Total Height: 4445 mm (175 ") Total Width: 3549 mm (139.72 ") Column Inner Width: 2910 mm (114.56 ") Drive-through Width: 2611 mm (102.80 ")
Limit & Structure	Height of the Limit Switch: 4320 mm (170.08 ") Column Design: 2-stage column design Cylinder Design: Direct-drive cylinder design
Support Arm Parameters	Arm Reach: 910-1386 mm (35.82-54.56 ")
Power Configuration	Motor Power: 2.2 kW Power Supply: 220V/380V, 50 Hz
Packaging & Loading	Quantity per 40' Container (Qty/40'Container): 24 pcs
Applicable Objects	Heavy-duty trucks (e.g., Foton Aumark, JMC Kairui Heavy-duty Version), large SUVs (e.g., Lincoln Navigator, Cadillac Escalade), commercial vehicles (e.g., light vans, small buses) (weight ≤ 5500 kg)

Product Features

5500 kg Ultra-High Load Capacity + 2-Stage Columns, Stable Support for Heavy-Duty Vehicles
The 2-stage columns are made of Q460 high-strength alloy steel plates with 18 mm wall thickness. Double welds and ultrasonic testing ensure structural integrity with only 0.2 mm deformation under full load. Designed for heavy-duty trucks (4000-5200 kg), large SUVs (3000-3800 kg), and commercial vehicles (3500-4800 kg).
1980 mm High Lifting Height + Direct-Drive Cylinder
Enables efficient in-depth maintenance with 120-150 mm more height than standard lifts. Direct-drive cylinder reduces power loss by 20% with lifting speed of 10 mm/s (18 minutes full lift) and controlled descent at 3 mm/s.
Wide Adaptation Dimensions + Flexible Arm Length
2910 mm column inner width and 2611 mm drive-through width accommodate wide vehicles. Adjustable 910-1386 mm arm length adapts to wheelbases of 2800-4200 mm with 99% compatibility for heavy vehicle maintenance.
Stable Power + Safety Limit
2.2 kW motor with dual-circuit power (220V/380V) maintains performance during voltage fluctuations. 4320 mm limit switch prevents roof collisions. Includes overload protection and mechanical arm locking for 180% higher safety factor.

Application Scenarios

Transmission Maintenance of Heavy-Duty Trucks

5500 kg capacity supports Foton Aumark/JMC Kairui (5000 kg). 1980 mm height enables standing transmission work, reducing maintenance time from 120 to 80 minutes.

Maintenance of Small Buses

2611 mm drive-through width accommodates King Long Higer (4500 kg). Adjustable arms adapt to long wheelbases, improving efficiency by 60%.

Logistics Fleet Inspections

2-stage columns handle high-frequency use (10 lifts/day). Dual voltage works with 380V industrial or 220V generator power, reducing inspection time from 90 to 55 minutes.

Large SUV Beauty Maintenance

1980 mm height exposes chassis for uniform spraying. 2910 mm width accommodates wide SUVs without removing side steps, improving results by 40%.

Frequently Asked Questions

Q1: With a total height of 4445 mm, can it adapt to a repair workshop with a floor height of 4.8 meters?

A1: Yes. The 355 mm clearance (4.8m - 4.445m) meets operational requirements. Ventilation pipes can be accommodated within the 2910 mm column width without structural modifications.

Q2: The direct-drive cylinder makes abnormal noise. How to troubleshoot?

A2: Check hydraulic oil level (add 32# anti-wear oil if low) and clean the inlet filter. Perform 3 empty test lifts. Regular maintenance every 6 months prevents recurrence.

Q3: For the 5500 kg equipment weight, what requirements are there for the floor during installation?

A3: Requires ≥1500 kg/㎡ load capacity (300mm C40 concrete recommended) and ≤5mm flatness error. Adjusting bolts (0-60mm range) compensate for unevenness. Professional installation guidance available.

Q4: The arm stretches and contracts unsmoothly after long-term use. How to handle it?

A4: Clean slide rails, apply 2# lithium-based grease, and check for deformation. Regular maintenance every 3 months maintains performance.
