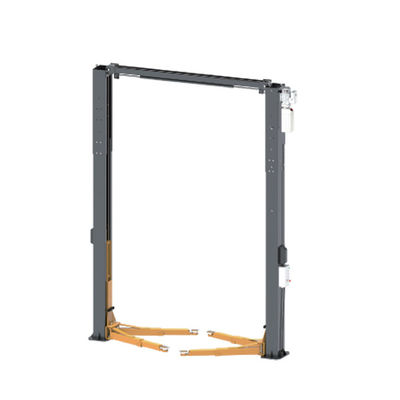

6800kg Two-Post Lift: 1960mm Height, 2-Stage Column+24V for Heavy Truck/Loader Repair
Product Details
| Product Name: | YD07-010 Two-Post Car Lift | Maximum Lifting Weight: | 6800 Kg (14960 Lb) |
|---|---|---|---|
| Lifting Height Range: | Maximum Lifting Height: 1960 Mm (77.16 ") Minimum Lifting Height: 120 Mm (4.72 ") | Overall Dimensions: | Total Height: 5030 Mm (198.03 ") Total Width: 3733 Mm (146.97 ") |
| Limit & Control: | Height Of The Limit Switch: 4860 Mm (191.33 ") | Support Arm Parameters: | Arm Reach: 927-1395 Mm (36.5-54.92 ") |
| Highlight |
6800kg two-post lift for heavy trucks,two-stage column car lift 1960mm height,24V two-post lift for loader repair |
||
Product Description
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD07-010 Two-Post Car Lift |
| Model | YD07-010 |
| Maximum Lifting Weight | 6800 kg (14960 lb) |
| Lifting Height Range | Maximum Lifting Height: 1960 mm (77.16 ") Minimum Lifting Height: 120 mm (4.72 ") |

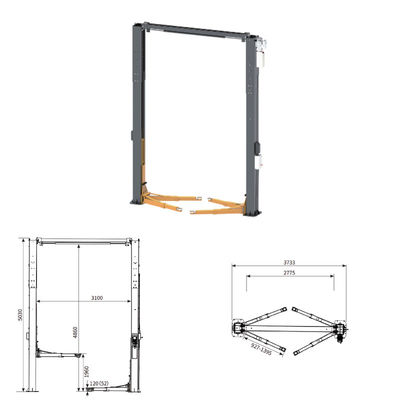

| Overall Dimensions | Total Height: 5030 mm (198.03 ") Total Width: 3733 mm (146.97 ") Column Inner Width: 3100 mm (122.05 ") Drive-through Width: 2775 mm (109.25 ") |
| Limit & Control | Height of the Limit Switch: 4860 mm (191.33 ") Overhead Emergency Stop Switch: Equipped Operating Voltage: 24 V |
| Support Arm Parameters | Arm Reach: 927-1395 mm (36.5-54.92 ") |
| Power Configuration | Motor Power: 2.2 kW Power Supply: 220V/380V, 50 Hz Column Design: Heavy-duty 2-stage column |
| Adjustment Functions | Foot Pad Height: Adjustable Upper Column: Adjustable |
| Packaging & Loading | Quantity per 40' Container: 12 pcs |
| Applicable Objects | Heavy-duty commercial vehicles, large buses, engineering vehicles (weight ≤ 6800 kg) |
The YD07-010 Two-Post Car Lift is a high-strength equipment designed specifically for maintenance of ultra-heavy vehicles and multi-scenario commercial vehicles. It addresses the limitations of traditional lifts with its 6800 kg ultra-heavy load capacity, adjustable 2-stage columns, and 24V safety control system.
- 6800 kg Ultra-Heavy Load Capacity: Features heavy-duty 2-stage columns made of Q500 ultra-high-strength alloy steel plates with 20 mm wall thickness and reinforced joints.
- Adjustable Upper Column: 300-500 mm adjustment range adapts to workshops with ceiling heights of 4.8-5.5 meters without requiring renovation.
- 1960 mm Lifting Height: Enables upright operation for technicians during transmission disassembly and chassis maintenance of heavy vehicles.
- 24V Safety Control System: Isolated from main power supply to prevent electric shock risks, with 200% higher safety factor than traditional 220V systems.
- Wide Dimensions: 3100 mm column inner width and 2775 mm drive-through width accommodate wide-body commercial vehicles and large buses.
- Heavy-Duty Truck Transmission Maintenance: 6800 kg capacity covers vehicles like JMC Kairui 800 and Foton Aumark S5, reducing maintenance time from 150 to 100 minutes.
- Small Loader Inspection: Adjustable foot pads adapt to uneven floors, with 24V control ensuring safety during oil-contaminated maintenance.
- Large Bus Maintenance: 3100 mm column width accommodates wide buses, with adjustable arm length for various wheelbases.
- Light Forklift Maintenance: 120 mm minimum height reaches under low chassis, with emergency stop preventing mast collisions.
