5454kg Four-Post Lift: 1965mm Height, Air-Lock+Louvered Ramps for Truck/SUV Repair

Large Image : 5454kg Four-Post Lift: 1965mm Height, Air-Lock+Louvered Ramps for Truck/SUV Repair

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD07-012

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD07-012 Four-Post Car Lift	Maximum Lifting Capacity:	5454 Kg (11998 Lb)
Maximum Lifting Height:	1965 Mm (77.36")	Motor Power:	3 HP
Required Air Supply:	85-115 PSI	Total Length:	6400 Mm (251.96")
Highlight:	Four-Post Lift for Truck Repair , Air-Lock Motorcycle Lift Bench , Louvered Ramps SUV Lift

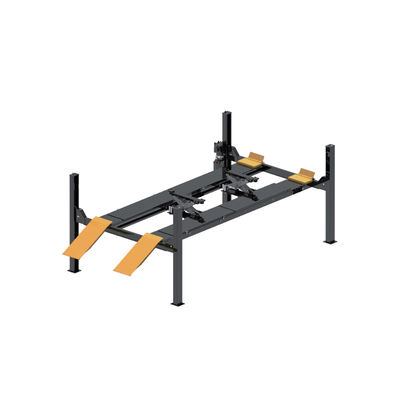

YD07-012 Four-Post Car Lift - 5454kg Capacity with Air-Lock & Louvered Ramps

Professional Heavy-Duty Vehicle Lift for Auto Repair Shops

This industrial-grade four-post lift is engineered for efficient maintenance and safe lifting of medium-heavy vehicles up to 5454 kg (11998 lb). Featuring advanced air-actuated locking and louvered ramps, it solves common challenges with traditional lifts while providing superior stability and operational efficiency.

Technical Specifications

Parameter Category	Specific Value
Product Name	YD07-012 Four-Post Car Lift
Model	YD07-012
Maximum Lifting Capacity	5454 kg (11998 lb)
Maximum Lifting Height	1965 mm (77.36")
Motor Power	3 HP
Required Air Supply	85-115 PSI

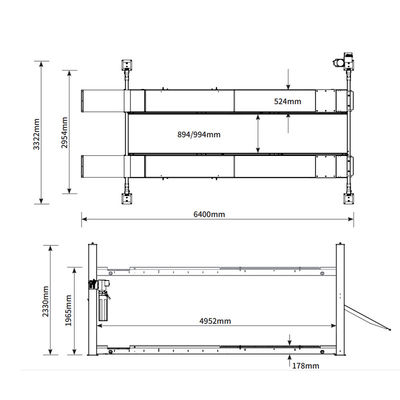

Total Length	6400 mm (251.96")
Total Width	3322 mm (130.78")
Inside Column Spacing	2954 mm (116.30")
Power Supply Voltage	220V/380V (Single-phase standard)
Net Weight	1170 kg (2574 lb)

Key Features

5454 kg High Load Capacity: Reinforced Q355 low-carbon alloy steel construction with 16mm thick column walls and ultrasonic-tested welds for exceptional durability.

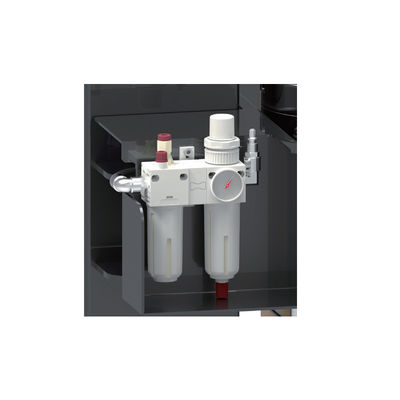

Air-Actuated Simultaneous Lock Release: Pneumatic system enables one-button unlocking of all four columns, reducing operation steps by 70% compared to manual unlocking.
Louvered Ramps: Anti-slip patterned steel with ≥0.98 friction coefficient prevents vehicle slippage, even in wet conditions.
Adjustable Runways: Width between runways adjusts from 894-994mm to accommodate various vehicle wheelbases (2600-4200mm).
Optional Rolling Jack: 2000kg capacity jack moves horizontally along runways for localized maintenance tasks.
High-Efficiency Operation: 3HP motor with dual hydraulic cylinders provides 8mm/s lifting speed, reaching full height in 23 minutes.

Ideal Applications

Chassis maintenance for light-duty trucks (JMC Kairui, Foton Ollin) in large auto repair shops
Transmission service for luxury sedans (BMW 7 Series, Mercedes S-Class) in high-end service centers
Bulk inspections of medium-heavy SUVs (Toyota Land Cruiser, Ford Explorer) in commercial repair stations
Tire replacement for fleet vehicles (JAC Shuailing) in logistics operations

Frequently Asked Questions

Can this lift be installed in a 5.8 meter long workshop?

Yes. The non-load-bearing 400mm extension can be removed to reduce total length to 6000mm, leaving adequate working space while maintaining full 5454kg capacity.

What should I do if the air-actuated lock release fails?

Check air pressure (85-115 PSI), clear any pipe blockages, lubricate valves if stuck, and test the system. If issues persist, replace the air control valve using the included spare part.

What floor requirements are needed for installation?

Requires ≥1200 kg/m² load capacity (250mm thick C30 concrete recommended) and ≤5mm flatness error. Adjustable column bolts compensate for minor unevenness.

How to address minor runway deformation?

For ≤2mm deformation, jack up affected area and tighten bolts (200 N*m torque). For >3mm deformation, contact manufacturer for runway replacement.

Product Images
