44000LB Load Anti Skid Heavy Duty Truck Ramp For Logistics / Construction / Port Vehicle Care

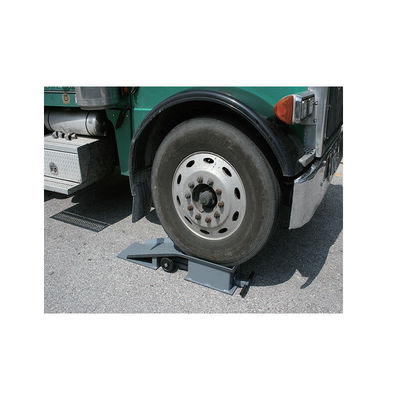

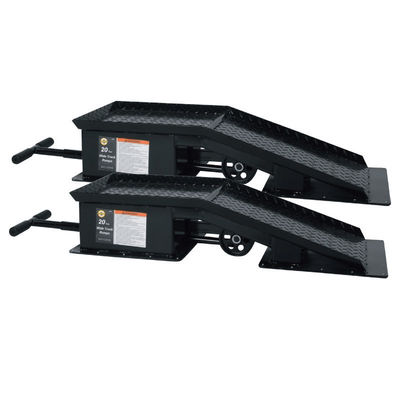

Large Image : 44000LB Load Anti Skid Heavy Duty Truck Ramp For Logistics / Construction / Port Vehicle Care

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD10-007

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD10-007 Heavy-Duty Truck Ramp	Product Type:	Specialized Ramp For Heavy-duty Commercial Vehicles
Load Capacity (Pair):	44,000LB (20,000kg)	Overall Length:	51" (1295mm)
Tread Width:	10" (254mm)	Frame Height:	92.5" (235mm)
Highlight:	heavy-duty truck ramp 44000lb capacity , anti skid heavy duty truck ramp , 44000LB heavy duty truck ramp

Truck Ramp: 44,000LB Load, Anti-Skid for Logistics/Construction/Port Heavy-Duty Vehicle Care

Product Specifications

Parameter Category	Specific Value
Product Name	YD10-007 Heavy-Duty Truck Ramp
Model No.	YD10-007
Product Type	Specialized ramp for heavy-duty commercial vehicles
Load Capacity (Pair)	44,000LB (20,000kg)
Overall Length	51" (1295mm)
Tread Width	10" (254mm)
Frame Height	92.5" (235mm)
Wheel Diameter	5" (127mm)
Weight Parameters	Gross Weight: 250LB (114kg); Net Weight: 228LB (104kg)
Shipping Dimensions	51"21.6"10.6" (1300550270mm)
Main Material	High-strength manganese steel (12mm thick)
Core Configuration	Large durable wheels, non-skid rubber mats, retractable long T-handle, diamond tread surface

Product Details

The YD10-007 Heavy-Duty Truck Ramp is designed for chassis inspection and safe lifting of heavy-duty commercial vehicles, addressing common issues with traditional ramps.

Key Features:

44,000LB Ultra-Heavy Load-Bearing: Supports up to 20,000kg when used in pairs, suitable for heavy trucks, construction vehicles, and trailers.
Multi-Dimensional Anti-Skid Design: Diamond-patterned tread (3mm deep), non-skid rubber mats, and limit baffles for maximum safety.
Convenient Positioning: Large 5" wheels and retractable T-handle (1.2-1.8m range) for easy adjustment.
Durable Manganese Steel Construction: High-temperature quenched material with anti-corrosion coating, no rust in 200-hour salt spray test.

Application Scenarios

Heavy-Duty Truck Inspection in Logistics Parks

Supports 12-ton heavy trucks for chassis inspection, with diamond-patterned tread and non-skid mats providing double protection.

Construction Vehicle Maintenance at Construction Sites

Stable support for 21-ton excavators on gravel ground, with limit baffles preventing tire deviation.

Heavy-Duty Lorry Maintenance in Auto Repair Shops

Oil-resistant manganese steel material and quick position adjustment reduce maintenance time from 120 to 80 minutes.

Trailer Tire Replacement at Ports and Docks

Compatible with 18-ton container trailers, allowing adjustment without starting the vehicle in narrow spaces.

Frequently Asked Questions

Q1: Can it be used for extra-wide tire heavy trucks with a tire width of 265mm?

A1: For temporary use, install 50mm-wide rubber anti-skid strips. For long-term use, consider the YD10-008 model with 12-inch tread width.

Q2: How many people are needed for movement and adjustment?

A2: 3-4 people typically required, with more needed for complex terrain. Forklifts can be used for long-distance handling.

Q3: How to restore anti-skid effect when tread is worn?

A3: For minor wear, regrind lines or weld anti-skid strips. For severe wear (≤0.5mm), replace the tread.

Q4: Can it be used in -20℃ environments?

A4: Yes, with proper pre-treatment. Check rubber components and clear snow/ice before use.
