Wheel Dolly: 1500LB/Unit, 15"-34" Tire Fit for Shop/Logistics/Parking Vehicle Shifting

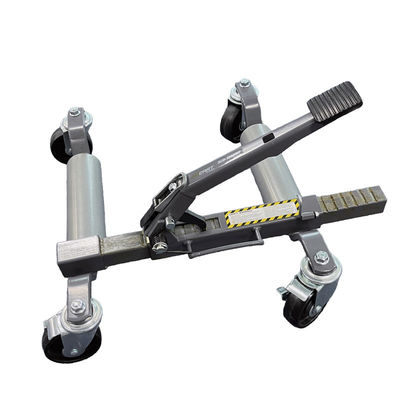

Large Image : Wheel Dolly: 1500LB/Unit, 15"-34" Tire Fit for Shop/Logistics/Parking Vehicle Shifting

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD10-008

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Parameter Category Specific Value Product Name:	YD10-008 Mechanical Structure Wheel Dolly	Load Capacity:	Per Unit: 1,500 Lbs. (680 Kg) Per Pair: 3,000 Lbs. (1,360 Kg) 4-Units Combined: 6,000 Lbs. (2,722 Kg)
Compatible Tire Size:	Max. Tire Width: 11 In. (280 Mm) Tire Diameter Range: 15 In.-34 In. (381 Mm-864 Mm)	Parameter Category Specific Value Product Name YD10-008 Mechanical Structure Wheel Dolly Model No. Y:	Overall Height: 6 In. (152 Mm) Stowed Dimension: 21 In.×24 In. (533 Mm×610 Mm)
Main Material:	High-strength Cold-rolled Steel Plate (5 Mm Thick) With Electrophoretic Anti-rust Treatment + Non-skid Polymer Rollers
Highlight:	heavy duty wheel dolly , wheel dolly for vehicle shifting , 15-34 inch tire wheel dolly

Wheel Dolly: 1500LB/Unit, 15"-34" Tire Fit for Shop/Logistics/Parking Vehicle Shifting

Product Specifications

Parameter Category	Specific Value
Product Name	YD10-008 Mechanical Structure Wheel Dolly
Model No.	YD10-008
Load Capacity	Per Unit: 1,500 lbs. (680 kg) Per Pair: 3,000 lbs. (1,360 kg) 4-Units Combined: 6,000 lbs. (2,722 kg)
Compatible Tire Size	Max. Tire Width: 11 in. (280 mm) Tire Diameter Range: 15 in.-34 in. (381 mm-864 mm)
Product Dimensions	Overall Height: 6 in. (152 mm) Stowed Dimension: 21 in.24 in. (533 mm610 mm)
Main Material	High-strength cold-rolled steel plate (5 mm thick) with electrophoretic anti-rust treatment + non-skid polymer rollers

Product Features

High Load Capacity: Supports up to 1,500 lbs per unit (6,000 lbs with 4 units)
Wide Compatibility: Fits tires from 15" to 34" diameter and up to 11" width
Stable Mechanical Fixing: Mechanical buckle structure with ≥500N clamping force
Non-Skid Rollers: Polymer material with diamond-pattern texture (friction coefficient ≥1.6)
Space-Saving Design: Foldable storage with dimensions of 21"*24" when stowed
Durable Construction: 5mm thick steel with rust-proof treatment and dust-protected rollers

Application Scenarios

Auto Repair Shops

Efficiently shift medium-heavy vehicles during maintenance with stable wheel fixation and smooth rolling on oily floors.

4S Stores & Showrooms

Precisely position multiple vehicle models for display without scratching floors or requiring engine starts.

Logistics Parks

Move disabled trucks short distances without tow trucks, saving time and rescue costs.

Parking Lots

Quickly relocate broken-down vehicles blocking passages with minimal manpower.

Frequently Asked Questions

Q: Can it handle 12" wide tires like those on Ford F-150 trucks?

A: Not recommended for regular use. For temporary needs, rubber extensions can be added, but for long-term use, choose our YD10-009 model designed for wider tires.

Q: What ground conditions are required when using 4 units combined?

A: Requires flat ground (≤3mm/m error) with ≥500kg/㎡ load capacity. Avoid soft or uneven surfaces.

Q: How to fix a loose mechanical buckle?

A: Tighten connection screws or replace the internal spring if fatigued. For deformed buckles, replace the entire assembly.

Q: Will it fit in a family car trunk?

A: Most trunks can hold 1-2 folded units (21"*24" each). SUVs can typically accommodate 2 units without seat folding.
