Wheel Dolly: 3000LB/Pair, 12" Wide-Tire Fit, Foot-Pedal Lift for Shop/4S/Parking

Wheel Dolly: 3000LB/Pair, 12" Wide-Tire Fit, Foot-Pedal Lift for Shop/4S/Parking
Wheel Dolly: 3000LB/Pair, 12" Wide-Tire Fit, Foot-Pedal Lift for Shop/4S/Parking Wheel Dolly: 3000LB/Pair, 12" Wide-Tire Fit, Foot-Pedal Lift for Shop/4S/Parking

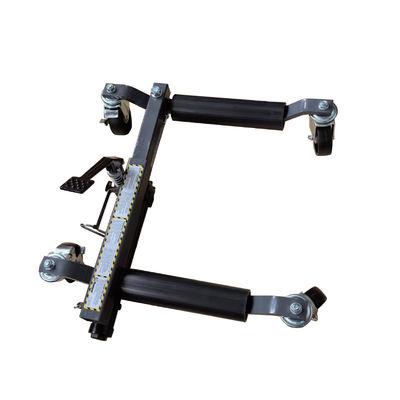

Large Image :  Wheel Dolly: 3000LB/Pair, 12" Wide-Tire Fit, Foot-Pedal Lift for Shop/4S/Parking

Product Details:
Place of Origin: Zhejiang,China
Brand Name: YEEDA
Certification: CE
Model Number: YD10-009
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Detailed Product Description
Product Name: YD10-009 Foot-Pedal Wheel Dolly Load Capacity: Per Pair: 3,000 Lb (1,360 Kg) Per Unit: 1,500 Lb (680 Kg)
Compatible Tire Size: Max. Tire Width: 12" (30.5 Cm) Tire Diameter Range: 15"-28" (38 Cm-71 Cm) Weight Parameters: Gross Weight: 41.8 Lb (19 Kg) Net Weight: 39.6 Lb (18 Kg)
Package Size: 34.6"×24.4"×8.7" (88×62×22 Cm)
Highlight:

heavy duty wheel dolly

,

12 inch wide tire dolly

,

foot pedal lift wheel dolly

YD10-009 Foot-Pedal Wheel Dolly

Professional-grade wheel dolly with 3,000 lb/pair capacity, 12" wide-tire compatibility, and foot-pedal lifting mechanism for effortless vehicle movement in repair shops, 4S stores, and parking applications.

Product Specifications
Parameter Category Specific Value
Product Name YD10-009 Foot-Pedal Wheel Dolly
Model No. YD10-009
Load Capacity Per Pair: 3,000 lb (1,360 kg)
Per Unit: 1,500 lb (680 kg)
Compatible Tire Size Max. Tire Width: 12" (30.5 cm)
Tire Diameter Range: 15"-28" (38 cm-71 cm)
Weight Parameters Gross Weight: 41.8 lb (19 kg)
Net Weight: 39.6 lb (18 kg)
Package Size 34.6"*24.4"*8.7" (88*62*22 cm)
Main Material High-strength alloy steel (4mm thick) with anti-rust coating + wear-resistant nylon rollers (70mm diameter)
Key Features
  • Foot-Pedal Lifting Design: Requires only ≤200N operation force (equivalent to lifting 20kg), making it 70% more efficient than manual spiral-lifting dollies.
  • Heavy-Duty Construction: 3,000 lb/pair capacity supports mid-to-large SUVs and light trucks with 12" wide tires.
  • 360° Movement System: Dual-jack design allows 180° rotation in pairs; 4-unit combination enables full 360° omnidirectional movement.
  • Durable Materials: 4mm-thick alloy steel with 350N*m torsional strength and anti-rust coating that passes 140-hour salt spray tests.
  • Tire-Protective Design: Rollers contact only tire sides to prevent tread damage, ideal for luxury vehicles.
Application Scenarios
Auto Repair Shops

Enables precise angle adjustments during maintenance without moving vehicles, reducing service time by 33%.

4S Store Displays

Allows effortless vehicle rotation for optimal exhibition positioning without starting engines or risking floor damage.

Parking Lot Adjustments

Facilitates precise parking in narrow spaces (as tight as 2.2m wide) through horizontal translation movements.

Home Garage Organization

Enables single-person operation to shift vehicles in confined spaces (as narrow as 2.1m) for better space utilization.

Frequently Asked Questions
Q: Can it handle 13-inch wide tires like those on Dodge Ram trucks?
A: Not recommended for regular use. The YD10-010 model (14" capacity) is better suited for extra-wide tires.
Q: How to maintain the foot-pedal mechanism if it becomes stiff?
A: Clean and lubricate with lithium-based grease every 2 months. Check for spring damage if stiffness persists.
Q: What are the ground requirements for 360° movement?
A: Requires ≤2mm/m flatness. Avoid soft surfaces and remove debris. Steel plates can compensate for minor imperfections.
Q: Is the 18kg weight manageable for female users?
A: Yes, most adults can handle short-distance carrying using the ergonomic side handle.
