1500LB Heavy-Duty Wheel Dolly: Ultra-Low Access, Truck/Loader Wheel Maintenance

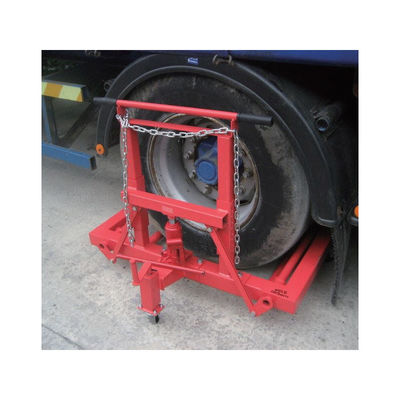

Large Image : 1500LB Heavy-Duty Wheel Dolly: Ultra-Low Access, Truck/Loader Wheel Maintenance

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD10-013A

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD10-013A 1500LB Heavy-Duty Wheel Dolly	Load Capacity:	1,500 Lb (680 Kg)
Weight Parameters:	Gross Weight: 164 Lb (74.5 Kg) Net Weight: 154 Lb (70 Kg)	Main Material:	High-strength Manganese Steel With Rust-proof Treatment
Core Structure:	3 Large Swivel Casters (120mm Diameter), Adjustable Lift Arms, Reinforced Frame
Highlight:	heavy-duty wheel dolly , low-profile truck wheel dolly , motorcycle loader wheel maintenance dolly

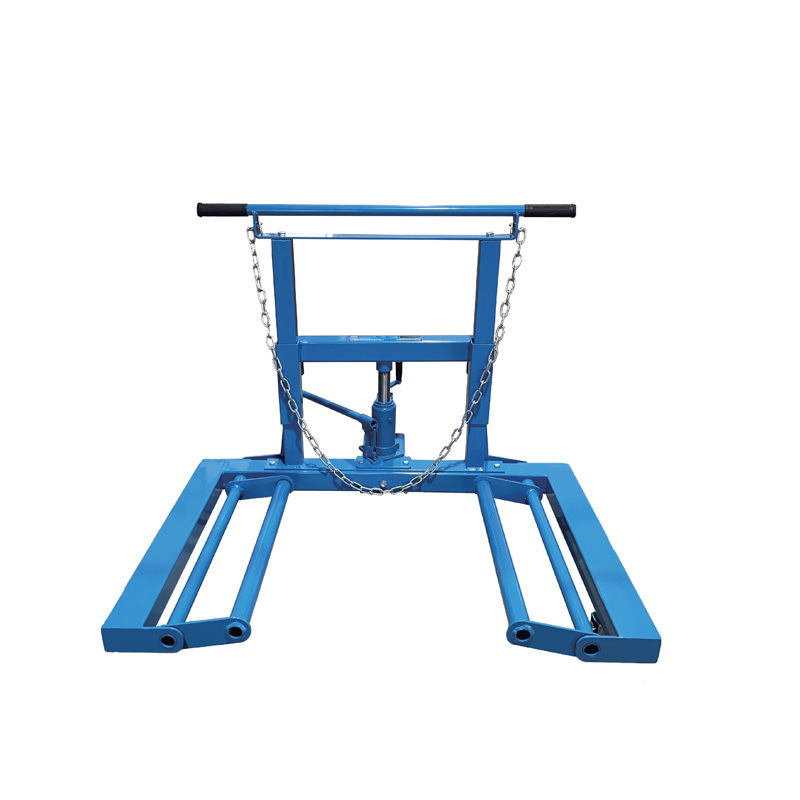

YD10-013A 1500LB Heavy-Duty Wheel Dolly

Professional tool designed for heavy-duty wheel assemblies, featuring 1,500 lb load capacity, ultra-low access, and swivel flexible movement for efficient heavy vehicle maintenance.

Product Specifications

Parameter Category	Specific Value
Product Name	YD10-013A 1500LB Heavy-Duty Wheel Dolly
Model No.	YD10-013A
Load Capacity	1,500 lb (680 kg)
Dimension Parameters	Overall Dimensions: 41"43.3"34.6" (10511088 cm) Lift Range: 0-9.8" (0-25 cm) Lift Arm Length: 25.2" (64 cm) Lift Arm Spread: 20.5"-24.4" (52-62 cm) Packing Size: 45"35"7.8" (1148920 cm)
Weight Parameters	Gross Weight: 164 lb (74.5 kg) Net Weight: 154 lb (70 kg)
Main Material	High-strength manganese steel with rust-proof treatment
Core Structure	3 large swivel casters (120mm diameter), adjustable lift arms, reinforced frame

Key Features

1,500 LB Heavy-Load Capacity: Manganese steel frame supports wheel assemblies of heavy trucks and construction machinery
Ultra-Low Access Design: 0" minimum height for easy wheel access and lifting
Adjustable Lift Arms: 20.5"-24.4" spread adapts to various wheel sizes
3 Swivel Casters: 360° rotation for flexible movement in tight spaces
Ergonomic Operation: Hydraulic-assisted rocker reduces operator effort

Application Scenarios

Heavy Truck Wheel Maintenance

Efficiently lifts and moves heavy truck wheels (up to 125 kg) in auto repair shops, reducing maintenance time by 50%.

Truck Wheel Disassembly/Assembly

Simplifies tire replacement for logistics trucks with ultra-low access and stable lifting.

Construction Machinery Maintenance

Handles loader wheels (up to 150 kg) on job sites without requiring crane equipment.

Mining Vehicle Maintenance

Durable construction withstands harsh mine environments while maintaining mobility.

Frequently Asked Questions

Q: Can it lift extra-large loader wheels weighing 160 kg (353 lb)?

A: Yes, the 1,500 lb capacity can safely handle 160 kg loads. Adjust lift arms to maximum 24.4" spread and maintain slow movement speed for stability.

Q: What if the hydraulic lift rocker gets stuck?

A: Check hydraulic oil level and add if low. Clean any impurities from the system or replace the filter element if necessary.

Q: Can two people carry the 154 lb (70 kg) dolly?

A: Yes, two people can transport it short distances. For frequent moves, use rolling pipes or a forklift.

Q: Does it work on uneven mine ground?

A: For protrusions ≤3 cm, the casters adapt automatically. For rougher terrain, lay steel plates to level the surface.
