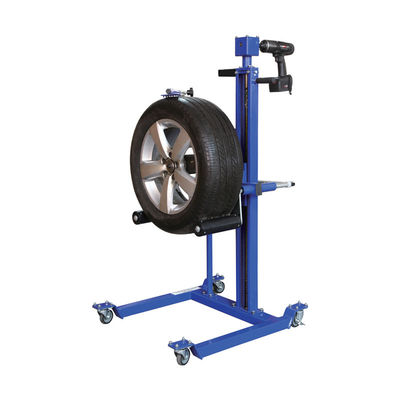

YD10-014B 50kg Capacity Quick Wheel Lifter
Designed for efficient lifting of small and medium-sized wheels during sedan and light truck maintenance, featuring 50kg load capacity, 38.78" lift height, and two-position locking mechanism.
Product Specifications
| Parameter Category |
Specific Value |
| Product Name |
YD10-014B 50kg Capacity Quick Wheel Lifter |
| Model No. |
YD10-014B |
| Load Capacity |
100 lb (50 kg) |
| Lifting Height |
38.78" (98.5 cm) |
| Weight Parameters |
Gross Weight: 119 lb (54 kg)
Net Weight: 112 lb (51 kg) |
| Packing Size |
34"*28"*55" (88*72*140 cm) |
| Main Material |
High-strength alloy steel with epoxy resin spray anti-rust treatment |
| Core Structure |
Two-position locking arm, hydraulic lifting system, 4 swivel casters with locking function |
Key Features
- 50kg Alloy Steel Frame: High-strength construction supports wheels of sedans and light trucks without bending or deformation.
- 38.78" Hydraulic Quick Lifting: Electric/air gun driven system lifts wheels in ≤10 seconds with operation force ≤200N.
- Two-Position Locking Arm: Adjustable for 12-20" wheels with anti-slip rubber pads (locking force ≥150N).
- Swivel Locking Casters: 100mm diameter oil-resistant rubber wheels with mechanical locking function.
Application Scenarios

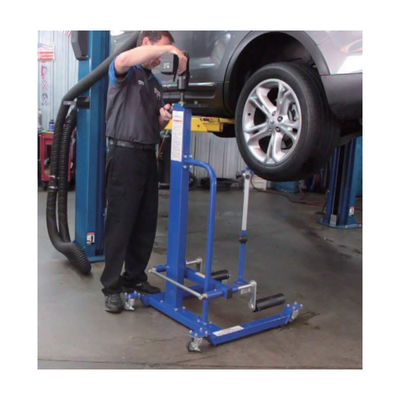

Sedan Wheel Maintenance in Auto Repair Shops
Reduces single-wheel maintenance time from 25 minutes to 12 minutes for vehicles like Volkswagen Lavida (42kg wheels).
Wheel Maintenance in Auto 4S Stores
Enables 360° cleaning access for vehicles like Mercedes-Benz C-Class (45kg wheels).
Light Truck Repair Stations
Eliminates manual lifting strain for vehicles like Wuling Rongguang Pickup (48kg wheels).
DIY Wheel Replacement in Home Garages
Simplifies personal tire replacement for vehicles like Honda Fit (38kg wheels) with standard electric tools.
Frequently Asked Questions
Q1: Can it lift wheels weighing 55kg?
Regular lifting is not recommended for weights exceeding 50kg. For temporary use, limit height to 10" (25.4cm). For heavier loads, consider the YD10-015 model (80kg capacity).
Q2: Hydraulic system not responding?
Check connections, hydraulic oil level (add 32# oil if low), and ensure electric gun power ≥500W. Contact manufacturer if issue persists.
Q3: Can two people transport the 51kg unit?
Yes, using reinforced handles (25.5kg per person). For frequent moves, use rolling pipes or a cart.
Q4: Locking arm won't clamp wheel?
Adjust arm position (1st gear for 12-16", 2nd gear for 16-20") or replace worn rubber pads (check every 6 months).
