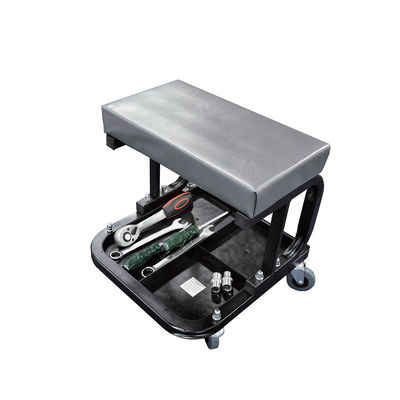

Metal Mechanic's Seat: 120kg Load, Ventilated Mesh, 4 Casters for Vehicle/Equipment Repair
Product Specifications
| Parameter Category |
Specific Value |
| Product Name |
YD11-007 Metal Mechanic's Seat |
| Model No. |
YD11-007 |
| Weight Parameters |
Net Weight (N.W.): 9 LBS (4.1kg); Gross Weight (G.W.): 10.12 LBS (4.6kg) |
| Dimension Parameters |
Overall Size: 14.17"×14.37"×14.37" (360×365×365mm)
Package Size: 14.6"×5.5"×14.9" (370×140×380mm) |
| Main Material |
Frame: 1.5mm-thick cold-rolled steel plate (electrostatic spray-painted anti-rust surface)
Seat Surface: Metal mesh panel (5mm aperture)
Support Structure: Under-seat reinforced bracket (1.2mm-thick steel plate)
Casters: 4 2.5-inch swivel rubber casters (63.5mm diameter) |
| Load Capacity |
Rated load capacity: 120kg |
Key Features
- Ultra-lightweight (4.1kg), easy to carry by one person
- Under-seat reinforced bracket, stable support for 120kg load
- Ventilated metal seat surface, no stuffiness during long sitting in summer
- Electrostatic spray-painted anti-rust, oil-resistant, stain-resistant and easy to clean
- 4 swivel mute casters for flexible movement in workshop environments
Product Details
Metal Reinforced Frame + Under-Seat Reinforced Bracket
Main frame is integrally formed from 1.5mm-thick cold-rolled steel plate with additional 1.2mm-thick reinforced bracket. The dual load-bearing structure provides torsional strength of 320N*m and rated load capacity of 120kg. Electrostatic spray-painted surface shows no rust in 150-hour salt spray tests.
Ultra-Lightweight Design (4.1kg)
Easy to carry with one hand and move between workstations. Compact size (360×365×365mm) allows stacking for storage (up to 6 units) and efficient logistics transportation.
Ventilated Metal Seat Surface
5mm aperture mesh design allows natural air circulation to prevent stuffiness. Easy to clean with high-pressure air gun - prevents accumulation of oil and dust.
4 Swivel Mute Casters
2.5-inch high-elastic rubber casters operate at ≤45 decibels. Support 360° omnidirectional rotation with minimum turning radius of 25cm for flexible movement in workshop spaces.
Application Scenarios
Auto Repair Shop Car Inspection Workstation
Ideal for chassis pipeline inspection with stable support and ventilated seat surface. Reduces inspection time from 60 minutes to 40 minutes.
4S Store Vehicle Maintenance Rest Area
Lightweight design allows easy movement to rest areas. Mute casters won't disturb customers during maintenance intervals.
Agricultural Machinery Repair Station
Metal frame resists dust and oil. Swivel casters move easily on concrete floors for parts assembly work.
Home Garage DIY Repair
4.1kg weight is easily moved in home garage. Provides stable support for brake pad replacement and other DIY repairs.
Frequently Asked Questions
Q1: Will small screws (3mm diameter) fall through the 5mm aperture?
A1: No, the seat edge has a 1cm-high anti-slip flange and small metal strip spacing to prevent small parts from falling.
Q2: Will children pushing it cause tipping?
A2: The wide base (365mm) and low center of gravity make tipping unlikely. Casters have built-in damping to reduce collision risk.
Q3: Will the casters slip on oily floors?
A3: No, the rubber casters have serrated anti-slip patterns for good traction even on oily surfaces.
Q4: Can it support 110kg mechanic + 15kg tool bag?
A4: Not recommended for long-term use. Exceeding the 120kg rated capacity may cause fatigue deformation over time.
