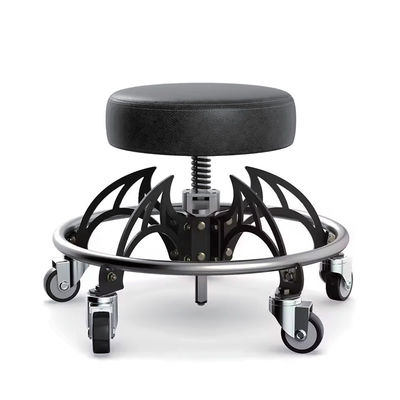

YD11-013 Durable Workshop Seat
Heavy-duty workshop seat with 450LBS load capacity, 470-590mm height adjustment, and 4" casters for industrial applications.
Product Specifications
| Parameter Category |
Specific Value |
| Product Name |
YD11-013 Durable Workshop Seat |
| Item/Model No. |
YD11-013 |
| Load Capacity |
450 LBS (204kg) - Suitable for workers ≤180kg + tools ≤24kg |
| Height Parameters |
Adjustment Range: 470mm (Min) - 590mm (Max)
Pneumatic hydraulic rod adjustment with side lever control |
| Weight Parameters |
Net Weight: 15kg (33 LBS)
Gross Weight: 16kg (35.2 LBS) |
| Dimension Parameters |
Seat: 100mm thick, 380mm diameter
Foot Ring: 580mm diameter
Wheel Diameter: 100mm (4")
Packing Size: 450*470*180mm |
| Main Material |
Support Structure: 5 laser-cut metal wing-shaped brackets (2.5mm steel)
Seat Surface: High-density foam (42kg/m³) with PVC waterproof fabric
Foot Ring: 1.8mm steel plate
Casters: 4" rubber swivel casters with brakes |
Core Features
- 450 LBS ultra-high load capacity for heavy-duty work
- 470-590mm pneumatic height adjustment for various working positions
- 5 sets of metal wing-shaped brackets + circular foot ring for enhanced stability
- 4" casters with brakes for mobility and secure positioning
- PVC seat surface resistant to oil, water, and easy to clean
Product Details
450 LBS Ultra-High Load Capacity + 5 Sets of Metal Wing-Shaped Brackets
Five laser-cut metal wing-shaped brackets form a radial pattern, creating a triangular stable structure with the seat surface and foot ring. The brackets show no bending even under maximum load (180kg worker + 24kg tools). Electrostatic spray-painted surfaces withstand 200-hour salt spray tests, ensuring 10-12 years service life in harsh environments.
470-590mm Pneumatic Height Adjustment
High-quality pneumatic hydraulic rod with side lever control allows smooth height adjustment (5mm/s speed) with ≤15N force. The wide range accommodates various working positions from semi-squat maintenance (470mm) to seated work (590mm), suitable for workers 1.55-1.95m tall.
580mm Circular Foot Ring + Casters with Brakes
The large-diameter circular rail structure (0.27㎡ ground contact area) prevents tipping even on slopes ≤3°. 4" rubber swivel casters with independent brakes (locking force ≥80N) provide mobility when needed and secure positioning during work.
100mm-Thick PVC Foam Seat Surface
High-density foam (42kg/m³) evenly distributes pressure, reducing waist fatigue by 80% during 3-hour continuous work. PVC fabric (IPX4 waterproof rating) resists oils and can be wiped clean easily. Suitable for temperatures from -30℃ to 100℃.
Application Scenarios
Heavy Machinery Factory Equipment Maintenance
Adjustable height (520mm) supports workers carrying 20kg tools for CNC machine maintenance. Circular foot ring prevents tipping during side operations. Brakes lock seat in position during precise work.
Auto Repair Shop Heavy Truck Maintenance
490mm height ideal for semi-squat work on truck chassis. Easy to push between work points. PVC surface wipes clean after contact with diesel.
Construction Machinery Maintenance
550mm height for seated hydraulic system inspection. Stable on uneven ground. No bracket deformation with 15kg tools.
Logistics Warehouse Heavy-Duty Shelf Organization
590mm maximum height assists with parts placement on 3m shelves. Foot ring provides stability when standing on tiptoes.
Frequently Asked Questions
Q1: Can the seat support 200kg long-term?
A1: Short-term use is allowed, but long-term full-load use may reduce service life from 10 to 6 years. Recommended maximum continuous load is 180kg.
Q2: Can female workers push the 15kg seat?
A2: Yes, the low-resistance casters (≤30N rolling resistance) make pushing easy. 35m distance takes about 1.5 minutes.
Q3: Hydraulic rod becomes slow after 3 years?
A3: Clean dust from the rod and add 3-5 drops of hydraulic oil. If no improvement, replace the hydraulic rod (120 yuan).
Q4: Will casters melt in 60℃ environments?
A4: No, casters resist up to 80℃. Monthly wear checks recommended in high-temperature environments.
