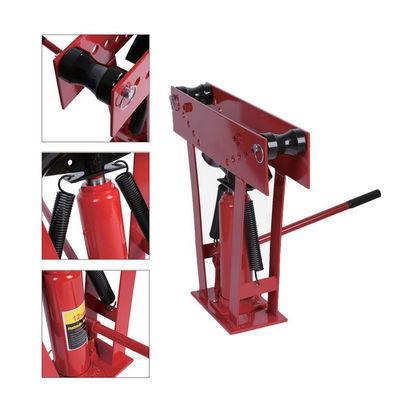

12T Pipe Bender: 90° Bend, 6 Dies, 127mm Stroke for Pipe Installation/Maintenance
Product Specifications
| Parameter Category |
Specific Value |
| Product Name |
YD12-001 12T Pipe Bender |
| Model No. |
YD12-001 |
| Core Performance |
Pipe Bending Capacity: Maximum bending angle 90°, rated bending pressure 12 tons

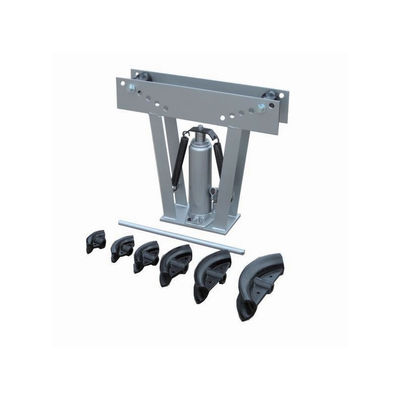

Die Configuration: 6 precision-cast bending dies (1/2", 3/4", 1", 1-1/4", 1-1/2", 2")
|
| Dimension Parameters |
Equipment Dimension: 610*160*540mm
Package Size: 63*17*56cm
Ram Stroke: 127mm
|
| Weight Parameter |
Equipment Weight: 36kg |
| Applicable Pipes |
Material: Water pipes, heavy-gauge galvanised pipes, steel pipes, aluminium thick-wall pipes
Adaptation Requirement: Pipe wall thickness must match the corresponding die
|
| Main Material |
Machine Body: 2.5mm-thick cold-rolled steel plate
Dies: Precision-cast alloy steel
Ram: 45# quenched and tempered steel
Adjustment Components: High-strength alloy screw
|
Key Features
- 12-ton high pressure for easy bending of thick-walled pipes
- Maximum 90° bending angle, adaptable to multi-angle scenarios
- 6 sets of precision dies, covering multiple pipe diameters
- Lightweight (36kg) for single-person carrying
- 127mm long stroke meets deep bending needs
- Anti-slip handle ensures operation safety
Product Details
The YD12-001 12T Pipe Bender is an industrial-grade equipment designed for efficient pipe bending with precision and power. Its core advantages include:
12-Ton High Pressure Output
Enables wrinkle-free bending of thick-walled pipes with stable pressure that doesn't attenuate, ensuring consistent bending angles.
6 Sets of Precision-Cast Dies
Covers common pipe diameters from 1/2" to 2" with quick disassembly and replacement for efficient workflow.
90° Adjustable Bending Angle + 127mm Long Stroke
Provides flexible multi-angle adjustment and deep bending capability for large-diameter pipes.
Lightweight Design + Anti-Slip Details
At only 36kg, it's portable while safety features ensure stable operation.
Application Scenarios
Building Water and Electricity Pipe Installation
Efficiently bends heavy-gauge galvanised pipes for wall pipe laying with precise angle control.
Industrial Equipment Pipeline Maintenance
Provides precision bending for steel pipes in machinery repair with ±1° accuracy.
Automotive Modification Pipeline Adaptation
Handles thick-walled aluminium pipes for vehicle modifications without cracking.
Home Decoration Water and Electricity Transformation
Quick die changes accommodate multiple pipe diameters in confined spaces.
Frequently Asked Questions
Q1: Will using a 2" die to bend a steel pipe with 6mm wall thickness damage the die?
A1: Yes, it will cause die damage. The 2" die is rated for steel pipes with wall thickness ≤5mm. For thicker pipes, a dedicated heavy-duty die is required.
Q2: Can female workers carry the 36kg unit alone?
A2: Auxiliary tools are recommended for distances over 5 meters to prevent strain.
Q3: Why do wrinkles appear during bending?
A3: Typically caused by incorrect die adaptation or improper pressure adjustment. Check die size match and pressure settings.
Q4: How to calibrate bending angle accuracy after extended use?
A4: Calibration can be done via the scale dial or by contacting manufacturer for maintenance if self-calibration is ineffective.
