12Ton Air-Hydraulic Pipe Bender: 90°-180° Bend, 6 Dies for Auto/Home/Industrial Pipes

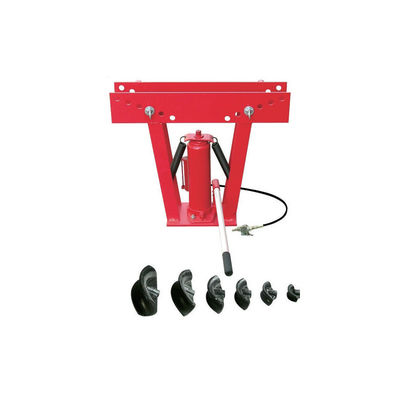

Large Image : 12Ton Air-Hydraulic Pipe Bender: 90°-180° Bend, 6 Dies for Auto/Home/Industrial Pipes

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD12-004

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:

YD12-004 12Ton Air/Hydraulic Pipe Bender

Model No.:

YD12-004

Highlight:

12Ton hydraulic pipe bender

air-hydraulic pipe bender with dies

industrial pipe bender 90-180 degree

12Ton Air-Hydraulic Pipe Bender: 90°-180° Bend, 6 Dies for Auto/Home/Industrial Pipes

Product Specifications

Parameter Category	Specific Value
Product Name	YD12-004 12Ton Air/Hydraulic Pipe Bender
Model No.	YD12-004
Core Performance	Pipe Bending Capacity: Rated bending pressure 12 tons, bending angle range 90°-180° Die Configuration: 6 precision bending dies (1/2", 3/4", 1", 1-1/4", 1-1/2", 2")
Dimension Parameters	Package Size: 680×540×260mm Equipment Dimension: Approx. 650×500×240mm
Weight Parameters	Net Weight: 36kg Gross Weight: 38kg
Applicable Pipes	Material: Steel pipes, galvanised pipes, copper alloy pipes, thick-walled aluminium pipes Wall thickness limitations for each die size
Main Material	Machine Body: 2.5mm-thick cold-rolled steel plate Dies: Alloy tool steel (HRC 52-55 hardness) Air-Hydraulic System: High-pressure cylinder (0.6-0.8MPa)

Product Features

12-ton air-hydraulic dual drive, labor-saving and efficient pipe bending
90°-180° wide angle adjustment for semi-circular/full-circular bending
6 dies covering 1/2"-2" pipe diameters for versatile applications
36kg lightweight design for easy portability
Precise angle control with ±1° accuracy
Quick die change system for efficient workflow
Safety features including overload protection and anti-slip handles

Technical Advantages

12-Ton Air-Hydraulic Dual Drive

Combines pneumatic pressure boosting with hydraulic output for efficient operation:

70% more effort-saving than manual pipe benders
30-second bending time for 2" thick-walled steel pipes
Stable pressure rise (3MPa/s) with ≤4% pressure attenuation
98% pipe bending qualification rate

90°-180° Wide-Angle Adjustment

Advanced angle control system for complex bending needs:

Dial with positioning points every 5° (±1° accuracy)
Optimized 150mm ram stroke for full-circular bending
Angle deviation ≤0.5° for precise forming

6 Full-Specification Dies

Comprehensive die set for various pipe diameters:

Precision honed dies (±0.05mm accuracy)
Quick-change "snap + positioning slot" system (40-second change time)
Dedicated storage slots for organization

Application Scenarios

Auto Repair Shops

180° U-bends for exhaust pipes (1-1/4" stainless steel)

Home Decoration

120° large-radius bends for ceiling pipeline layout (2" galvanised pipes)

Industrial Equipment

135° bends for hydraulic pipeline maintenance (1-1/2" steel pipes)

Commercial Kitchens

180° bends for exhaust pipeline connections (1" stainless steel)

Frequently Asked Questions

Q: Can a 2" steel pipe with 5mm wall thickness be bent manually when there is no air source?

A: Manual bending is not recommended for 2" thick-walled pipes. For emergency bending of small-diameter pipes (≤1"), manual hydraulic operation is possible, but air-hydraulic drive is recommended for best results.

Q: With a weight of 36kg, can female operators carry it alone?

A: Auxiliary tools like folding trolleys are recommended for moving the equipment, especially through stairs or over long distances.

Q: Wrinkles appear on the pipe when bending at 180°. What is the reason?

A: This is typically caused by incorrect die adaptation or too fast pressure application. Verify die size match, reduce pressure application speed, or use anti-wrinkle mandrels for thin-walled pipes.

Q: After 2 years of use, the pneumatic pressure application becomes slow. How to handle it?

A: Check and clean the air source interface filter, verify hydraulic oil level, and clean the cylinder intake valve if needed. For persistent issues, contact the manufacturer for seal replacement.
